描述
GE IS200VCMIH2BEE是通用电气（GE）为工业燃气和蒸汽轮机控制系统Speedtronic Mark VI设计的核心通信控制器模块，广泛应用于发电、石油化工及能源领域。以下是其综合产品特性与功能概述：
一、核心功能与架构
主通信控制器角色
作为单元数据高速公路（UDH）的核心组件，通过光纤以太网（IONet）实现数据读取与传输，支持远程机架的通信与控制。
-TMR冗余设计：采用三重模块化冗余（TMR）结构，配备三个IONet端口，增强系统可靠性。
-SIFT容错机制：通过软件实现的容错投票（SIFT），将数据广播至所有远程机架，确保数据一致性与系统稳定性。
接口与硬件设计
-双面板结构：正面包含三个IONet端口、一个公串行端口、复位按钮、固定螺钉及四组LED指示灯（3/6/8/3个），背面主要为电阻器和电容器。
-工业级防护：适用于严苛环境，支持扩展接口（如背板连接器）及测试点（TP）。
二、技术规格
处理器与存储
-CPU：PowerPC 604e，主频600MHz。
-内存：256MB。
-通信接口：Ethernet、RS-232、RS-485。
-I/O类型：DI、DO、AI、AO。
物理参数
-尺寸：220mm×170mm×85mm。
-重量：2kg。
三、应用场景
发电与能源领域
-控制燃气轮机启动、同步、负载调节及超速保护，适用于发电厂和海上石油平台。
-支持涡轮机运行状态监测与故障诊断。
工业自动化集成
-通过IONet与Modbus等协议，实现与DCS（分布式控制系统）、PLC的无缝集成。
-适用于化工、炼油等复杂流程的实时数据传输与控制。
四、设计优势
高可靠性
-冗余设计与容错机制，降低单点故障风险。
-通过IONet实现高速数据传输（支持实时控制需求）。
灵活性
-支持单工或TMR模式切换。
-LED指示灯与测试点便于现场调试与维护。
IC698CPE040
IC698CPE040
IS420UCSBH1A
GE IS200VCMIH2BEE is a core communication controller module designed by General Electric(GE)for the Speedtronic Mark VI industrial gas and steam turbine control system,which is widely used in power generation,petrochemical and energy fields.The following is an overview of its comprehensive product features and functions:
I.Core functions and architecture
Main communication controller role
As the core component of the Unit Data Highway(UDH),it realizes data reading and transmission through optical fiber Ethernet(IONet)to support communication and control of remote racks.
-TMR redundancy design:It adopts triple modular redundancy(TMR)structure and is equipped with three IONet ports to enhance system reliability.
-SIFT fault tolerance mechanism:Through software-implemented fault-tolerant voting(SIFT),data is broadcast to all remote racks to ensure data consistency and system stability.
Interface and hardware design

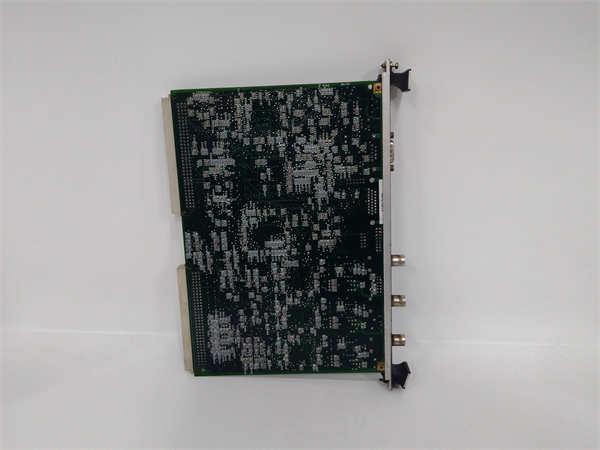

-Double-panel structure:The front side contains three IONet ports,a male serial port,a reset button,fixing screws and four sets of LED indicators(3/6/8/3),and the back side is mainly resistors and capacitors.
-Industrial protection:suitable for harsh environments,supports expansion interfaces(such as backplane connectors)and test points(TP).
2.Technical specifications
Processor and storage
-CPU:PowerPC 604e,main frequency 600MHz.
-Memory:256MB.
-Communication interface:Ethernet,RS-232,RS-485.
-I/O type:DI,DO,AI,AO.
Physical parameters
-Dimensions:220mm×170mm×85mm.
-Weight:2kg.
3.Application scenarios
Power generation and energy field
-Control gas turbine startup,synchronization,load regulation and overspeed protection,suitable for power plants and offshore oil platforms.
-Support turbine operation status monitoring and fault diagnosis.
Industrial automation integration
-Seamless integration with DCS(distributed control system)and PLC through protocols such as IONet and Modbus.
-Suitable for real-time data transmission and control of complex processes such as chemical industry and oil refining.
IV.Design Advantages
High Reliability
-Redundant design and fault-tolerant mechanism reduce the risk of single point failure.
-High-speed data transmission through IONet(supports real-time control requirements).
Flexibility
-Supports simplex or TMR mode switching.
-LED indicators and test points facilitate on-site debugging and maintenance.
