描述

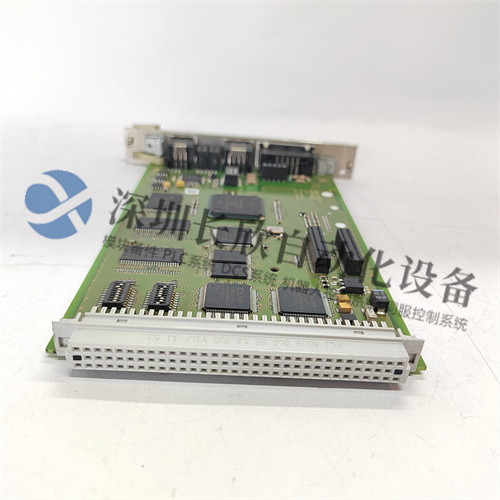

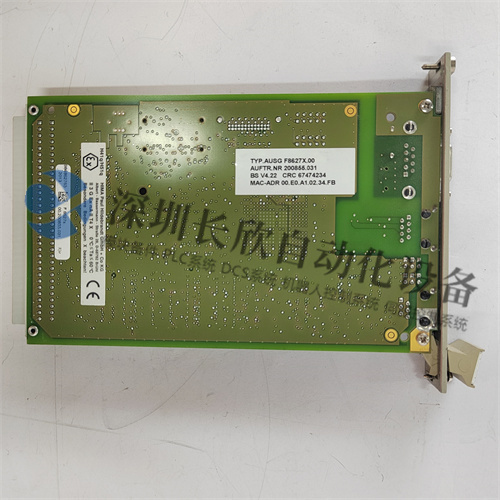

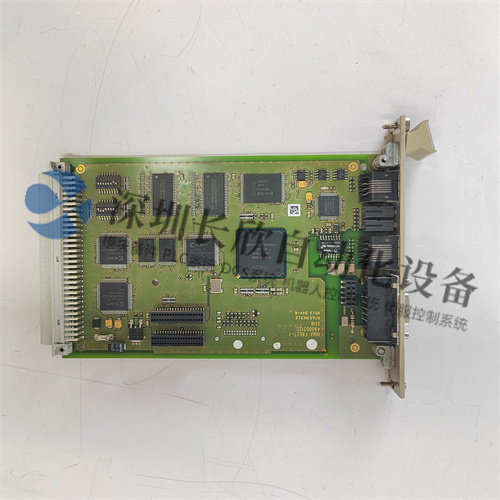

HIMA F8627X是一款以太网通信模块，专为HIMA的安全相关可编程电子系统(PES)设计，例如H41q/H51q系列。它是在安全关键型工业应用中实现高速安全通信的关键组件。
主要特性和规格
功能：F8627X作为通信接口，允许HIMA的CPU（例如用于安全CPU的F 8650X/F 8652X或用于非安全CPU的F 8651X/F 8653X）通过以太网与其他设备和网络连接。
通信协议：它支持各种重要的工业通信协议：
SafeEthernet：HIMA专有的安全认证以太网协议，对于可靠地传输安全关键数据至关重要。
OPC DA（数据访问）：促进不同控制系统和应用程序之间的标准化数据交换。
OPC A&E（报警与事件）：较新版本支持此功能，用于处理报警和事件数据。
MODBUS TCP：一种广泛使用的工业通信协议，可与各种设备和系统集成。
ELOP II TCP：允许通过以太网对HIMA CPU进行编程和配置，从而简化工程工作流程。
以太网接口：配备快速以太网(100BASE-T)功能，提供高速数据通信。通常使用标准RJ45连接器。
安全认证：作为HIMA安全系统中的模块，F8627X已通过认证，可用于高完整性应用，通常根据相关IEC和EN标准达到SIL 3（安全完整性等级3）和PL e（性能等级e，类别4）。一些资料还提到，根据具体应用和系统架构，它有可能获得SIL 4认证。
CPU兼容性：专为与HIMA的F 8650X、F 8651X、F 8652X和F 8653X CPU模块配合使用而设计，确保与H41q/H51q系统无缝集成并实现最佳性能。
诊断功能：包含诊断指示灯（例如LED），用于提供状态信息并协助故障排除。
物理特性：
外形尺寸：模块化卡，可插入HIMA机架式系统。
尺寸：略有不同，但通常约为16厘米x 16厘米x 12厘米或类似尺寸。
重量：约0.2至0.8公斤，具体取决于具体型号和包装。
产地：德国制造。
功耗：通常使用24V直流电。
The HIMA F8627X is an Ethernet Communication Module designed for HIMA’s safety-related Programmable Electronic Systems(PES),such as the H41q/H51q series.It’s a critical component for enabling high-speed and secure communication within safety-critical industrial applications.
Key Features&Specifications
Function:The F8627X serves as a communication interface,allowing HIMA’s CPUs(like the F 8650X/F 8652X for safe CPUs or F 8651X/F 8653X for non-safe CPUs)to connect with other devices and networks via Ethernet.
Communication Protocols:It supports various essential industrial communication protocols:
SafeEthernet:HIMA’s proprietary safety-certified Ethernet protocol,crucial for transmitting safety-critical data reliably.
OPC DA(Data Access):Facilitates standardized data exchange between different control systems and applications.
OPC A&E(Alarms&Events):Newer versions support this for handling alarm and event data.
MODBUS TCP:A widely used industrial communication protocol,enabling integration with a broad range of devices and systems.
ELOP II TCP:Allows for programming and configuration of the HIMA CPUs via Ethernet,streamlining engineering workflows.
Ethernet Interface:Equipped with Fast Ethernet(100BASE-T)capability,providing high-speed data communication.It typically uses standard RJ45 connectors.
Safety Certifications:As a module in a HIMA safety system,the F8627X is certified for use in high-integrity applications,typically up to SIL 3(Safety Integrity Level 3)and PL e(Performance Level e,Category 4)according to relevant IEC and EN standards.Some sources also mention potential for SIL 4 certification depending on the specific application and system architecture.
CPU Compatibility:It’s specifically designed to work with HIMA’s F 8650X,F 8651X,F 8652X,and F 8653X CPU modules,ensuring seamless integration and optimal performance within the H41q/H51q systems.
Diagnostic Features:Includes diagnostic indicators(e.g.,LEDs)to provide status information and aid in troubleshooting.
Physical Characteristics:
Form Factor:A modular card designed to be inserted into a HIMA rack-based system.
Dimensions:Varies slightly but commonly around 16 cm x 16 cm x 12 cm or similar.
Weight:Around 0.2 kg to 0.8 kg,depending on the specific variant and packaging.
Origin:Manufactured in Germany.
Power Consumption:Typically operates on 24V DC.
