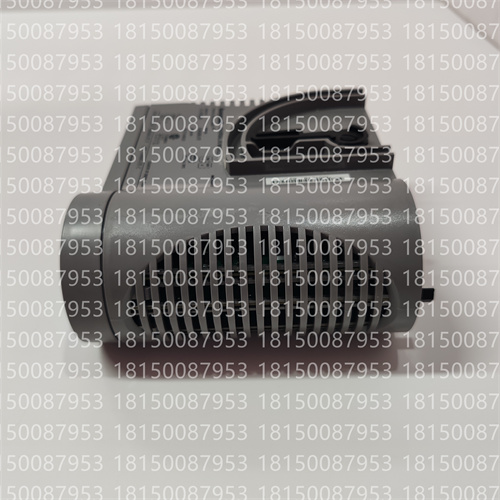

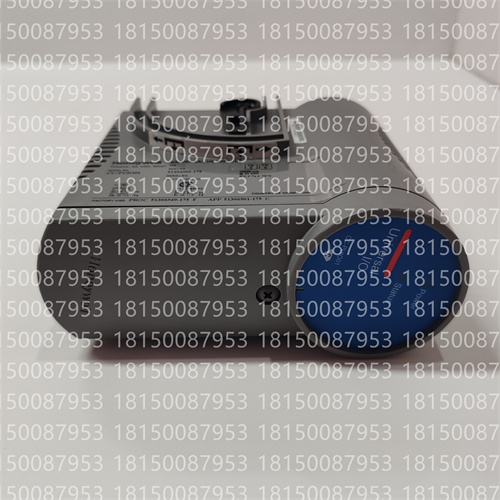

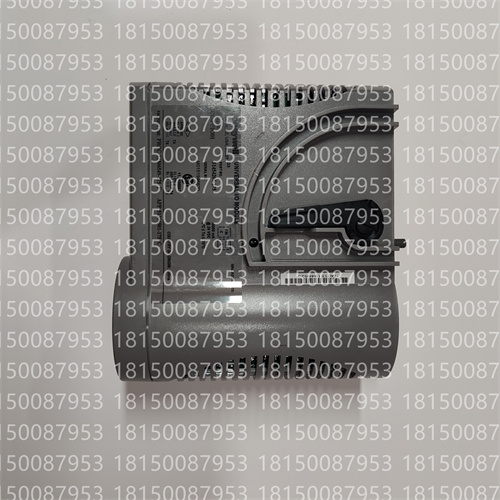

描述
主要产品详情和功能
通用I/O功能：CC-PUIO01的主要优势在于其多功能性。其32个通道均可单独配置为不同的I/O类型，包括：
模拟输入(AI)：用于读取来自温度、压力、流量、液位等传感器的4-20mA或0-10V等连续信号。
模拟输出(AO)：用于向控制阀或变频器等执行器发送4-20mA或0-10V等连续控制信号。
数字输入(DI)：用于读取来自开关、按钮或触点闭合的离散（开/关）信号。
数字输出(DO)：用于发送离散（开/关）信号以控制继电器、指示灯或电机启动器。
脉冲输入：在特定通道（例如，通道15、16、17、18），它还可以接受用于频率测量的脉冲输入（例如，来自流量计），频率范围通常高达10 KHz。
高精度、快速响应：
模拟精度：通常为满量程的±0.1%（23.5±2°C时），确保精确测量。
数字精度：±1位。
模拟响应时间：通常≤250毫秒。
数字响应时间：通常≤10毫秒。
输入扫描速率：快速扫描速率为50毫秒。
HART通信支持：它支持用于模拟I/O的HART（高速可寻址远程传感器）7协议。这意味着它可以通过与4-20mA模拟信号相同的线路进行数字通信，从而使C300控制器能够从支持HART的现场设备访问丰富的诊断信息、校准数据和远程配置功能。它通常每个通道都配备一个HART调制解调器，以实现快速性能。
安全和保护功能：
隔离：在输入/输出之间以及通道之间提供隔离，以防止共模噪声并防止电气干扰。
开路检测：为了提高可靠性，它可以检测输入通道上的开路。
电子短路保护：提供输出通道短路保护。
安全状态(FAILOPT)行为：可为每个通道配置数字/模拟输出的故障安全行为，确保在模块或系统发生故障时，输出能够进入预定义的安全状态。
兼容性：专为霍尼韦尔C300控制器设计，是Experion PKS C系列I/O模块的一部分，可确保与霍尼韦尔DCS架构无缝集成和数据交换。
坚固耐用的环境规格：其工作温度范围扩展至-40°C至+70°C，适用于各种严苛的工业环境。通常还具有IP65防护等级。
通用规格
型号：CC-PUIO01
零件编号：51454205-175
通道：32个用户可配置通道
输入类型：模拟量(4-20mA,0-10V)、数字量(24V)、脉冲（特定通道）
输出类型：模拟量(4-20mA,0-10V)、数字量(24V)
A/D转换器分辨率：16位
输入阻抗：标称250Ω（电流输入）
变送器现场电源：电流限制为24mA
平均无故障时间(MTBF)：100,000小时
原产国：美国
Key Product Details and Functions
Universal I/O Capability:The primary strength of the CC-PUIO01 is its versatility.Each of its 32 channels can be individually configured for different I/O types,including:
Analog Input(AI):For reading continuous signals like 4-20mA or 0-10V from sensors measuring temperature,pressure,flow,level,etc.
Analog Output(AO):For sending continuous control signals like 4-20mA or 0-10V to actuators such as control valves or variable speed drives.
Digital Input(DI):For reading discrete(on/off)signals from switches,pushbuttons,or contact closures.
Digital Output(DO):For sending discrete(on/off)signals to control relays,lights,or motor starters.
Pulse Input:On specific channels(e.g.,Channels 15,16,17,18),it can also accept pulse inputs for frequency measurement(e.g.,from flow meters)with a range typically up to 10 KHz.
High Accuracy and Fast Response:
Analog Accuracy:Typically±0.1%of full-scale(at 23.5±2°C),ensuring precise measurements.
Digital Accuracy:±1 bit.
Analog Response Time:Typically≤250ms.
Digital Response Time:Typically≤10ms.
Input Scan Rate:Fast scan rate of 50 ms.
HART Communication Support:It supports the HART(Highway Addressable Remote Transducer)7 protocol for analog I/O.This means it can communicate digitally over the same wires as the 4-20mA analog signal,allowing the C300 controller to access rich diagnostic information,calibration data,and remote configuration capabilities from HART-enabled field devices.It typically has a HART modem per channel for fast performance.
Safety and Protection Features:
Isolation:Provides isolation between inputs/outputs and between channels to prevent common-mode noise and protect against electrical disturbances.
Open Wire Detection:For enhanced reliability,it can detect open circuits on input channels.
Electronic Short Circuit Protection:Offers protection against short circuits on output channels.
Safe-State(FAILOPT)Behaviors:Configurable fail-safe behaviors on a per-channel basis for digital/analog outputs,ensuring that in case of a module or system failure,outputs move to a predefined safe state.
Compatibility:Designed for the Honeywell C300 controller and is part of the Experion PKS Series-C I/O modules,ensuring seamless integration and data exchange within Honeywell’s DCS architecture.
Robust Environmental Specifications:With an extended operating temperature range of-40°C to+70°C,it is suitable for a wide variety of demanding industrial environments.It also typically has an IP65 protection class.
General Specifications
Model:CC-PUIO01
Part Number:51454205-175
Channels:32 user-configurable channels
Input Types:Analog(4-20mA,0-10V),Digital(24V),Pulse(on specific channels)
Output Types:Analog(4-20mA,0-10V),Digital(24V)
A/D Converter Resolution:16-bit
Input Impedance:250Ωnominal(for current inputs)
Transmitter Field Power:Current limited to 24mA
MTBF(Mean Time Between Failures):100,000hours
Country of Origin:USA
