描述
产品概述

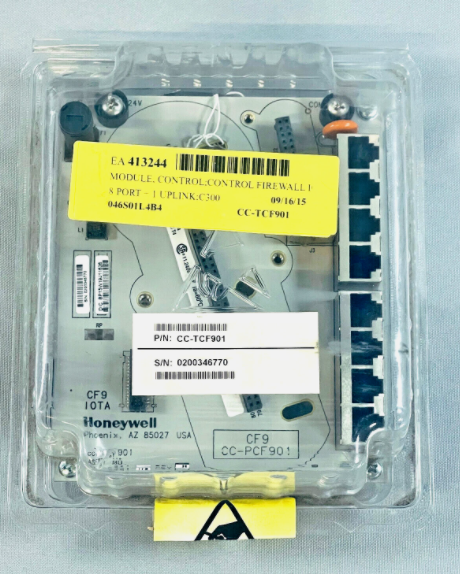

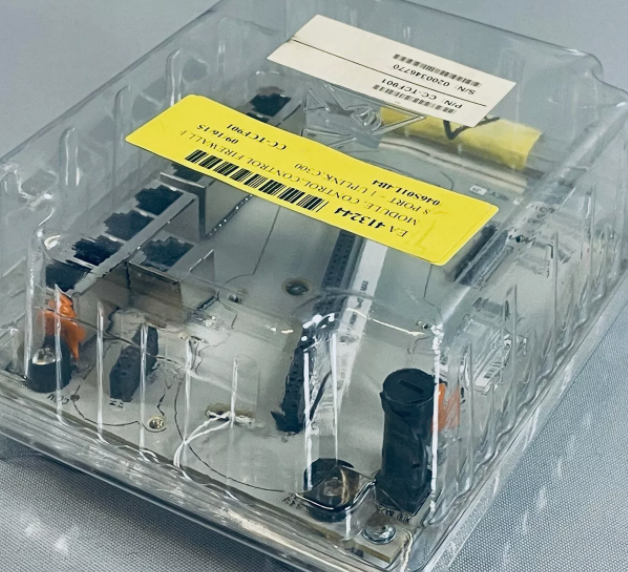

HONEYWELL CC-TCF901是霍尼韦尔（Honeywell）设计的控制防火墙模块，属于CF9控制防火墙输入/输出终端组件（IOTA）。其核心功能是为工业控制系统提供网络安全防护，防止未经授权的访问和网络攻击，适用于石油化工、电力、制药、食品加工等对安全要求极高的场景。
技术参数
物理规格
安装尺寸：约12.1厘米×14.5厘米（长×宽）
重量：2公斤
安装方式：固定于C系列机柜的托架上，支持工业环境安装。
网络接口
以太网端口：9个RJ-45端口（含1个上行链路端口和8个FTE分布电缆端口）。
光纤支持：可选配光纤模块（如Ca-FSMx01或Ca-FMMx01），实现高速数据传输与高带宽VPN需求。
电源与配电
供电电压：24V DC，为控制器提供稳定电源。
兼容性
支持多种控制系统，包括TDC 2000、TDC3000、TPS、Experion PKS（C200/C300）、FSC等。
核心功能特点
高级防火墙功能
通过严格的访问控制和数据过滤，阻止未授权的网络攻击（如DDoS、恶意软件入侵）。
支持实时监控网络流量，识别并拦截异常通信。
扩展性与灵活性
支持混合控制配置，可扩展连接多台设备（如控制器、传感器、执行器）。
允许动态添加库函数，无需系统升级即可适应新需求。
物理连接与信号管理
为控制器和CFIM系列提供8路独立FTE电缆连接，支持分布式I/O组网。
上行链路端口连接FTE监控网络，实现集中式管理。
工业级可靠性
抗电磁干扰设计，适应高温、高湿等恶劣环境。
内置冗余机制，确保系统高可用性。
Product Overview
HONEYWELL CC-TCF901 is a control firewall module designed by Honeywell and belongs to the CF9 control firewall input/output terminal component(IOTA).Its core function is to provide network security protection for industrial control systems to prevent unauthorized access and cyber attacks.It is suitable for scenarios such as petrochemicals,electricity,pharmaceuticals,and food processing that require extremely high security requirements.
Technical parameters
Physical specifications
Installation dimensions:approximately 12.1 cm×14.5 cm(Length×Width)
Weight:2 kg
Installation method:Fixed to the bracket of C series cabinets and supports industrial environment installation.
Network interface
Ethernet ports:9 RJ-45 ports(including 1 uplink port and 8 FTE distributed cable ports).
Fiber Optic Support:Optional fiber optic modules(such as Ca-FSMx01 or Ca-FMMx01)can be used to achieve high-speed data transmission and high-bandwidth VPN requirements.
Power and power distribution
Supply voltage:24V DC,providing a stable power supply to the controller.
compatibility
Supports a variety of control systems,including TDC 2000,TDC3000,TPS,Experion PKS(C200/C300),FSC,etc.
Core functional features
Advanced Firewall Features
Block unauthorized cyber attacks(such as DDoS,malware intrusions)through strict access control and data filtering.
Supports real-time monitoring of network traffic,identifying and intercepting abnormal communications.
Scalability and flexibility
Supports hybrid control configuration,and can expand the connection of multiple devices(such as controllers,sensors,actuators).
Allows dynamic addition of library functions to adapt to new needs without system upgrade.
Physical connection and signal management
Provides 8 independent FTE cable connections for controllers and CFIM series,supporting distributed I/O networking.
The uplink port connects to the FTE monitoring network to achieve centralized management.
Industrial-grade reliability
Anti-electromagnetic interference design,adapt to harsh environments such as high temperature and high humidity.
Built-in redundancy mechanism to ensure high system availability.
