描述

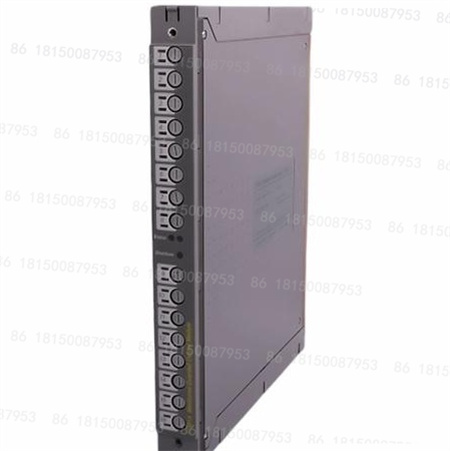

ICS Triplex T8403是一款24Vdc数字量输入模块，属于Trusted TMR系统，主要用于安全仪表系统（SIS）。以下是其产品详情：
基本信息
制造商：ICS Triplex（现为Schneider Electric旗下Triconex品牌）
输入通道数：40个，三重模块冗余（TMR）
输入电压：24VDC（典型），支持0V至24V DC范围
输入电流：2mA（典型）
信号类型：数字量输入
工作温度范围：-40°C至+70°C
存储温度范围：-55°C至+85°C
功能特点
三重模块冗余（TMR）架构：为每个输入通道提供高可用性，即使部分组件故障也能确保准确输入信号输出。
高精度电压测量：每个现场输入经过三重化处理，通过Sigma-Delta输入电路精确测量输入电压，以确定报告的现场输入状态。
用户可配置阈值：允许根据不同现场设备类型，自定义输入阈值电压，增强了模块的适用性。
线路监测功能：可检测现场电缆的开路和短路情况，且每个输入通道的线路监测功能可独立配置。
综合诊断功能：具备自动诊断和自我测试能力，增强了模块的可靠性。
事件序列（SOE）报告：集成板载SOE报告功能，分辨率达1毫秒，任何状态变化都会触发SOE条目，可精确记录输入状态变化。
高电压隔离：配备2500V脉冲耐压光电/电流隔离屏障，提高了安全性。
热插拔功能：可使用专用的配套（相邻）插槽或智能插槽配置在线热更换，减少了维护期间的停机时间。
状态指示：前面板上每个通道都有输入状态LED，可指示输入状态和现场布线故障；模块状态LED可指示模块的健康状况和操作模式（活动、待机、备用）。
安全完整性等级：通过TÜV IEC 61508 SIL 3认证，适用于对安全性要求极高的工业场景。
The ICS Triplex T8403 is a 24VDC digital input module,part of the Trusted TMR system,primarily for use in safety instrumented systems(SIS).Product details are as follows:
Basic Information
Manufacturer:ICS Triplex(now Triconex,a Schneider Electric brand)
Number of Input Channels:40,Triple Modular Redundancy(TMR)
Input Voltage:24VDC(typical),supports a 0V to 24VDC range
Input Current:2mA(typical)
Signal Type:Digital Input
Operating Temperature Range:-40°C to+70°C
Storage Temperature Range:-55°C to+85°C
Features:Triple Modular Redundancy(TMR)architecture:Provides high availability for each input channel,ensuring accurate input signal output even in the event of partial component failure.
High-Precision Voltage Measurement:Each field input is tripled,and sigma-delta input circuitry accurately measures the input voltage to determine the reported field input status.User-configurable thresholds:Customizable input threshold voltages are possible based on different field device types,enhancing the module’s adaptability.
Line monitoring:Detects open and short-circuit conditions on field cables,and line monitoring is independently configurable for each input channel.
Comprehensive diagnostics:Automatic diagnostics and self-test capabilities enhance module reliability.
Sequence of Events(SOE)reporting:Integrated onboard SOE reporting with 1 millisecond resolution triggers an SOE entry for any state change,accurately recording input state changes.
High-voltage isolation:Equipped with a 2500V pulse-withstand optical/galvanic isolation barrier for enhanced safety.
Hot-swappable:Online hot-swappable modules can be configured using dedicated mating(adjacent)slots or intelligent slots,reducing downtime during maintenance.
Status indication:Each channel on the front panel features an input status LED that indicates input status and field wiring faults.A module status LED indicates module health and operating mode(active,standby,or backup).Safety Integrity Level:TÜV IEC 61508 SIL 3 certified,suitable for industrial scenarios with extremely high safety requirements.
