描述

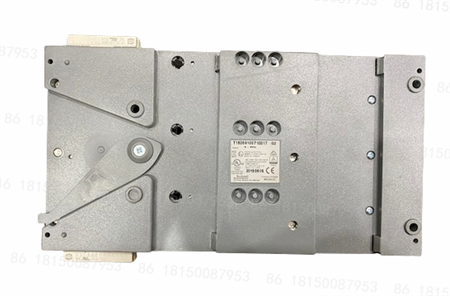

ICS Triplex T9100是一款处理器基座单元，具有高可靠性和兼容性，主要用于工业自动化控制系统。以下是其产品详情：
基本信息
品牌：ICS Triplex
型号：T9100
产品类型：处理器基座单元
产地：美国
重量：460g
技术规格
电源要求：额定冗余电源为+24VDC，电压范围为18-32VDC，配备两个用于+24VDC电源的3路连接器。
连接性：每个处理器有2个符合IEC 6063-7标准的屏蔽RJ45以太网端口；每个处理器有6个5路串行端口，最大支持1.31mm²（16AWG）电线；还有用于冗余电源的PWR-1、PWR-2连接器以及用于程序启用键的Key连接器。
支持能力：支持1个、2个或3个处理器模块；支持多达16个I/O基座单元，每个I/O总线支持8个。
工作温度范围：-10℃至+50℃。
存储温度范围：-20℃至+70℃。
湿度：10%至90%，无冷凝。
尺寸：235mm×126mm。
功能特点
冗余电源：确保系统连续运行，提高可靠性。
高兼容性：可支持多个处理器模块和I/O基座单元，应用场景广泛。
安全连接：配备屏蔽以太网和串行端口连接器，保障数据传输的安全性和稳定性。
The ICS Triplex T9100 is a processor base unit designed for high reliability and compatibility,primarily for industrial automation control systems.Below are the product details:
Basic Information
Brand:ICS Triplex
Model:T9100
Product Type:Processor Base Unit
Origin:USA
Weight:460g
Technical Specifications
Power Requirements:Redundant power supply rated at+24VDC with a voltage range of 18-32VDC,equipped with two 3-way connectors for+24VDC power.
Connectivity:Each processor has two shielded RJ45 Ethernet ports compliant with IEC 6063-7;each processor has six 5-way serial ports,supporting wires up to 1.31mm²(16AWG);and PWR-1 and PWR-2 connectors for redundant power supplies,as well as a key connector for the program enable key.Support Capacity:Supports one,two,or three processor modules;supports up to 16 I/O base units,eight per I/O bus.
Operating Temperature Range:-10°C to+50°C.
Storage Temperature Range:-20°C to+70°C.
Humidity:10%to 90%,non-condensing.
Dimensions:235mm x 126mm.
Features
Redundant Power Supply:Ensures continuous system operation and enhances reliability.
High Compatibility:Supports multiple processor modules and I/O base units,enabling a wide range of application scenarios.
Secure Connection:Equipped with shielded Ethernet and serial port connectors,ensuring secure and stable data transmission.
