描述

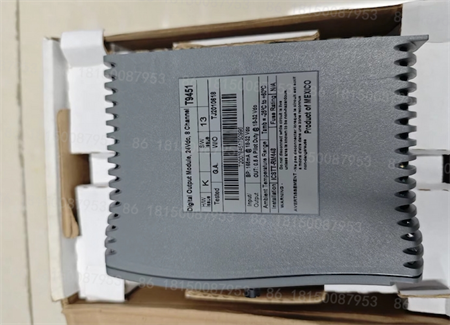

ICS Triplex T9451是一款数字输出模块，属于ICS Triplex（现为Rockwell Automation旗下）的AADvance可信三重化冗余（TMR）系统。以下是其产品详情：
基本信息
品牌：ICS Triplex
型号：T9451
产品类型：数字输出模块
输出通道数：8个
工作电压：通常为24VDC，部分型号支持24/48VCC
重量：约340g
技术规格
输出电流：每个通道能够安全可靠地驱动高达1A、32V DC的负载。
隔离方式：采用光电耦合隔离。
响应时间：微秒级。
工作温度范围：-40°C至+85°C。
安装方式：ICS Triplex AADvance系统机架安装。
功能特点
高容错能力：采用三重模块化冗余（TMR）架构，模块内部的每个输出通道都由三个独立的模块组成，通过投票机制实现高可靠性，能够检测并容忍单个模块的故障，即使两个内部通道发生故障，仍能保证输出的正确性和可靠性。
全面的输出保护：每个输出通道都具备电压和负载电流监测、反向电流保护以及短路和开路线路监测功能，能够有效地保护模块自身和连接的现场设备。
灵活的控制模式：支持锁存、脉冲和模拟等多种控制模式，能够适应不同的应用需求和控制策略。
支持双冗余电源：进一步提高了供电的可靠性，即使一个电源发生故障，模块也能继续正常运行。
输出通道隔离：每个输出通道之间以及输出通道与模块内部电路之间都进行了电气隔离，有效地防止了通道间的相互干扰和故障蔓延。
应用领域
安全仪表系统（SIS）：在紧急停车系统（ESD）、火灾和气体检测系统（F&G）等安全关键应用中，用于驱动安全阀、报警器等最终执行元件，确保工厂的安全运行。
关键过程控制：在石油天然气、化工、电力等行业的关键控制回路中，用于控制重要的工艺阀门、电机等设备，保障生产过程的稳定性和可靠性。
交通运输：应用于铁路信号控制系统、地铁保护系统等，驱动信号灯、道岔等关键设备，确保运输安全。
其他高风险行业：如核电、航空航天等对系统故障容忍度极低的领域。
The ICS Triplex T9451 is a digital output module that is part of the AADvance Trusted Triple Redundant(TMR)system from ICS Triplex(now part of Rockwell Automation).The following are product details:
Basic Information
Brand:ICS Triplex
Model:T9451
Product Type:Digital Output Module
Number of Output Channels:8
Operating Voltage:Typically 24VDC,with some models supporting 24/48VCC
Weight:Approximately 340g
Technical Specifications
Output Current:Each channel can safely and reliably drive up to 1A at 32VDC.
Isolation:Optocoupler isolation.
Response Time:Microseconds.
Operating Temperature Range:-40°C to+85°C.
Mounting Method:Rack-mountable within the ICS Triplex AADvance system.Features
High Fault Tolerance:Utilizing a Triple Modular Redundant(TMR)architecture,each output channel within the module consists of three independent modules.A voting mechanism achieves high reliability,enabling detection and tolerance of individual module failures.Even if two internal channels fail,output accuracy and reliability are guaranteed.
Comprehensive Output Protection:Each output channel features voltage and load current monitoring,reverse current protection,and short-circuit and open-circuit monitoring,effectively protecting the module and connected field devices.
Flexible Control Modes:Supports multiple control modes,including latching,pulse,and analog,to adapt to diverse application requirements and control strategies.
Support for dual redundant power supplies:Further enhancing power supply reliability,ensuring continued operation even if one power supply fails.
Output Channel Isolation:Each output channel is electrically isolated from the others,as well as from the module’s internal circuitry,effectively preventing cross-channel interference and fault propagation.
Applications:Safety Instrumented Systems(SIS):In safety-critical applications such as emergency shutdown systems(ESD)and fire and gas detection(F&G)systems,these devices are used to actuate final actuators such as safety valves and alarms,ensuring safe plant operation.Critical Process Control:Used in critical control loops in industries such as oil and gas,chemicals,and power generation to control important process valves,motors,and other equipment,ensuring the stability and reliability of production processes.
Transportation:Used in railway signal control systems and subway protection systems,driving key equipment such as signal lights and switches to ensure transportation safety.
Other high-risk industries:These include nuclear power,aerospace,and other sectors with extremely low tolerance for system failures.
