描述

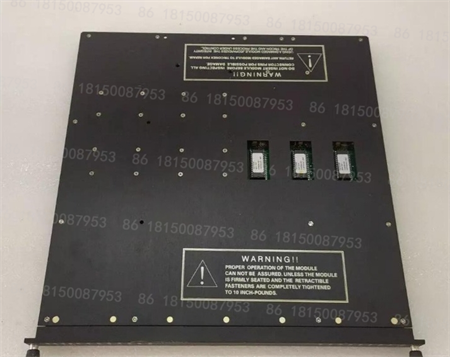

Invensys Triconex 3604E是一款16点、24VDC、光隔离、非公共的数字输出模块，主要用于Triconex Tricon安全控制器。以下是其产品详情：
基本信息
品牌：Triconex
型号：3604E
产地：美国
输出通道数：16
电压范围：22-45VDC
负载泄漏电流：最大2mA
颜色：深蓝色
技术规格
额定电压：24VDC
隔离电压：1500VDC
输出类型：非公共
熔断器：每个输出1个，2.5A快速熔断
电压降：典型值小于4V
每点电流额定值：最大2A，10ms内10A浪涌
功能特点
三重模块化冗余（TMR）：采用三个并行模块，提供出色的容错能力和高可用性，即使一个模块出现故障，也能确保连续运行。
光隔离：保护模块免受电气噪声和电涌的影响，提高系统可靠性，减少维护需求。
热插拔：可以在不中断系统操作的情况下更换或添加模块，最大限度地减少停机时间，保持系统可用性。
故障诊断：每个TMR数字输出模块都有一个电压环回电路，可以独立于负载验证每个输出开关的操作，确定是否存在潜在故障。此外，还会对每个通道和电路进行持续诊断，任何通道上的诊断故障都会激活“故障”指示灯。
The Invensys Triconex 3604E is a 16-point,24VDC,optically isolated,non-common digital output module designed for use with Triconex Tricon safety controllers.Product details are as follows:
Basic Information
Brand:Triconex
Model:3604E
Origin:USA
Number of Output Channels:16
Voltage Range:22-45VDC
Load Leakage Current:Maximum 2mA
Color:Dark Blue
Technical Specifications
Rated Voltage:24VDC
Isolation Voltage:1500VDC
Output Type:Non-common
Fuse:One per output,2.5A fast-blow
Voltage Drop:Typical:Less than 4V
Current Rating per Output:Maximum 2A,10A surge within 10ms
Features
Triple Modular Redundancy(TMR):Utilizes three parallel modules to provide excellent fault tolerance and high availability,ensuring continuous operation even if one module fails.
Optical Isolation:Protects the modules from electrical noise and surges,improving system reliability and reducing maintenance requirements.Hot Swapping:Modules can be replaced or added without interrupting system operation,minimizing downtime and maintaining system availability.
Fault Diagnostics:Each TMR digital output module features a voltage loopback circuit that verifies the operation of each output switch independently of the load to identify potential faults.Additionally,continuous diagnostics are performed on each channel and circuit,and a diagnostic fault on any channel activates the”Fault”indicator.
