描述

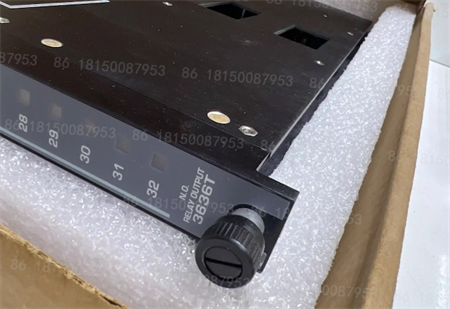

Invensys Triconex 3636T是Tricon安全仪表系统（SIS）中的一款32路继电器输出模块，采用非三重化（单重）设计。以下是其产品详情：
基本信息
品牌：Triconex
型号：3636T
产地：美国
输出类型：继电器干接点
通道数量：32
工作电压范围：24VDC或125VAC/VDC
重量：约2kg
技术规格
触点容量：2A 24VDC/125VAC
隔离电压：1900VDC
响应时间：≤10ms
工作温度：-40°C至+70°C
存储温度：-40°C至+85°C
功能特点
高可靠输出：每通道支持2A连续电流，100-400mA峰值电流，可直接驱动电磁阀、声光报警器等现场执行元件。
高隔离耐压：通道间、通道对地1900VDC隔离，有效抑制浪涌与电磁干扰。
工业级环境适应性：工作温度范围为-40°C至+70°C，湿度为5%-95%非凝露，可适应户外机柜或海上平台等恶劣环境。
模块化热插拔：6U VME插槽设计，支持在线更换，配合Tricon机架与端子板实现不停机维护。
认证齐全：符合IEC 61508/61511 SIL3与ATEX/IECEx防爆要求。
The Invensys Triconex 3636T is a 32-channel relay output module for Tricon Safety Instrumented Systems(SIS)systems.It features a non-triplex(single-channel)design.Product details are as follows:
Basic Information
Brand:Triconex
Model:3636T
Origin:USA
Output Type:Relay Contact
Number of Channels:32
Operating Voltage Range:24VDC or 125VAC/VDC
Weight:Approximately 2kg
Technical Specifications
Contact Rating:2A 24VDC/125VAC
Isolation Voltage:1900VDC
Response Time:≤10ms
Operating Temperature:-40°C to+70°C
Storage Temperature:-40°C to+85°C
Features
High-Reliability Output:Each channel supports 2A continuous current and 100-400mA peak current,enabling direct driving of field actuators such as solenoid valves and audible and visual alarms.High Isolation and Voltage Withstand:1900VDC isolation between channels and between channels and ground effectively suppresses surges and electromagnetic interference.
Industrial-Grade Environmental Adaptability:Operating temperature range is-40°C to+70°C,and humidity is 5%-95%non-condensing,making it suitable for harsh environments such as outdoor cabinets and offshore platforms.
Modular Hot-Swap:The 6U VME slot design supports online replacement and,when combined with the Tricon rack and terminal strip,allows for non-stop maintenance.
Complete Certifications:Complies with IEC 61508/61511 SIL3 and ATEX/IECEx explosion-proof requirements.
