描述

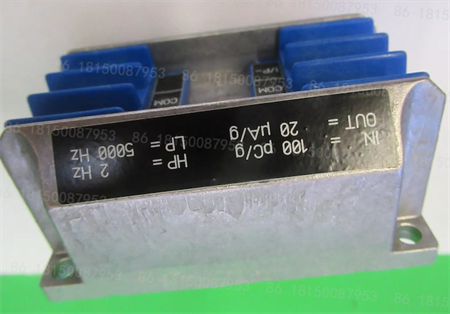

IPC704 244-704-000-022是一款由Vibro-meter公司生产的信号调理器，主要用于将压电式传感器的电荷信号转换为电流或电压信号。以下是其产品详情：
基本信息
品牌：Vibro-meter
型号：IPC704
订货号：244-704-000-022
产地：瑞士
重量：0.25kg
技术规格
电源电压：18-30VDC
最大电流：25mA
线性误差：≤0.2%
温度稳定性：100ppm/°C
输入灵敏度：100000pC峰值
输出特性：2线制电流传输时，动态信号最大±5mA峰值，静态电流12mA±0.5mA；3线制电压传输时，动态信号最大±5V峰值，静态电压7.5V±0.2V，输出阻抗750Ω
滤波器：输入和输出均配备对称LC网络RFI滤波器
功能特点
可配置滤波器：具备可配置的高通和低通滤波器，频率范围为0.5Hz至20kHz，能够根据实际需求对信号进行过滤，提高信号质量。
可选积分器：可选配积分器以产生速度输出，满足不同的测量和分析需求。
多种传输方式：支持2线制电流或3线制电压传输，可根据具体应用场景选择合适的传输方式，其中2线制电流传输距离可达1km（需配备GSI电流隔离单元）。
兼容性强：可与任何基于压电材料的传感器兼容，包括对称或非对称、外壳接地或绝缘的传感器。
安全认证：经过认证，可用于潜在爆炸性环境，具有较高的安全性和可靠性。
IPC704 244-704-000-022 is a signal conditioner produced by Vibro-meter,which is mainly used to convert the charge signal of piezoelectric sensors into current or voltage signals.The following are product details:
Basic Information
Brand:Vibro-meter
Model:IPC704
Order Number:244-704-000-022
Origin:Switzerland
Weight:0.25kg
Technical Specifications
Power Supply Voltage:18-30VDC
Maximum Current:25mA
Linearity Error:≤0.2%
Temperature Stability:100ppm/°C
Input Sensitivity:100,000pC Peak
Output Characteristics:For 2-wire current transmission,dynamic signal maximum±5mA peak,static current 12mA±0.5mA;for 3-wire voltage transmission,dynamic signal maximum±5V peak,static voltage 7.5V±0.2V,output impedance 750Ω
Filter:Symmetrical LC network RFI filters are installed on both input and output.
Features
Configurable Filter:Configurable high-pass and low-pass filters with a frequency range of 0.5Hz to 20kHz,capable of filtering signals as needed to improve signal quality.
Optional Integrator:An optional integrator can be added to generate velocity output to meet diverse measurement and analysis needs.
Multiple Transmission Modes:Supports 2-wire current or 3-wire voltage transmission,allowing you to select the appropriate transmission method based on your specific application.2-wire current transmission can reach a distance of up to 1km(requires a GSI galvanic isolation unit).
Strong Compatibility:Compatible with any piezoelectric sensor,including symmetrical or asymmetrical,grounded,or insulated.
Safety Certification:Certified for use in potentially explosive environments,ensuring high safety and reliability.
