描述
IS2020RKPSG3A是通用电气（GE）公司为Mark VI系列产品制造的VME机架电源供应模块，以下是其产品详情：
技术规格
额定输出功率：400W。
输入电压额定值：125Vdc。
输出：具有一个状态ID输出、一个远程+28V PSA输出以及另外五个+28V PSA输出。
防护等级：IP66（部分资料提到IP67）。
工作温度范围：-40°C至+70°C。
符合标准：IEC 61508 SIL2、ATEX、IECEx等。
设计与功能

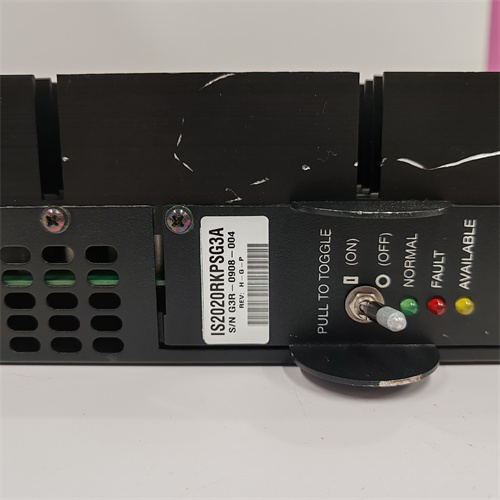

前面板：带有拨动开关，这是模块上唯一的用户控件，用户可使用此拨动开关重置模块故障，方便进行故障排查和模块维护。面板还配备三个LED指示灯（绿色、红色和黄色），用于指示模块的工作状态和故障信息，绿色表示正常运行，红色表示存在故障，黄色表示输入电源状况。

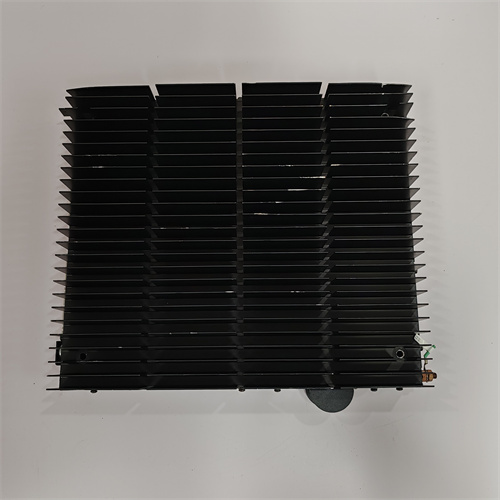

散热设计：机身侧面设计有多个金属鳍片，作为散热组件，帮助模块在连续工作过程中保持适当的温度。
尺寸与重量
尺寸：约33cm×18cm×3cm或10.2英寸×3.7英寸×1.6英寸。
重量：约0.35kg或2.2磅。
安装方式：安装在VME控制和接口机架的右侧，通过金属支架固定。电源模块的底部有直流输入、28V直流输出和335V直流输出连接，更新设计的底部还有一个状态连接。
应用领域：广泛应用于工业自动化和控制系统，如石油和天然气、化工、电力等行业，为危险区域的设备提供安全保护，是GE Mark VI涡轮机控制系统中的关键组件，能为整个系统稳定供电。
IS2020RKPSG3A is a VME rack power supply module manufactured by General Electric(GE)for the Mark VI series of products.Here are its product details:
Technical specifications
Rated output power:400W.
Input voltage rating:125Vdc.
Output:has one status ID output,one remote+28V PSA output,and five additional+28V PSA outputs.
Protection level:IP66(some materials mention IP67).
Operating temperature range:-40°C to+70°C.
Compliant standards:IEC 61508 SIL2,ATEX,IECEx,etc.
Design and function
Front panel:with a toggle switch,which is the only user control on the module.Users can use this toggle switch to reset module faults,which is convenient for troubleshooting and module maintenance.The panel is also equipped with three LED indicators(green,red and yellow)to indicate the working status and fault information of the module.Green indicates normal operation,red indicates a fault,and yellow indicates the input power status.
Heat dissipation design:There are multiple metal fins designed on the side of the fuselage as heat dissipation components to help the module maintain a proper temperature during continuous operation.
Dimensions and weight
Dimensions:approximately 33cm×18cm×3cm or 10.2 inches×3.7 inches×1.6 inches.
Weight:approximately 0.35kg or 2.2 pounds.
Installation method:Installed on the right side of the VME control and interface rack and fixed by a metal bracket.The bottom of the power module has DC input,28V DC output and 335V DC output connections,and the bottom of the updated design also has a status connection.
Application areas:Widely used in industrial automation and control systems,such as oil and gas,chemical,power and other industries,to provide safety protection for equipment in hazardous areas.It is a key component in the GE Mark VI turbine control system and can provide stable power supply for the entire system.
