描述

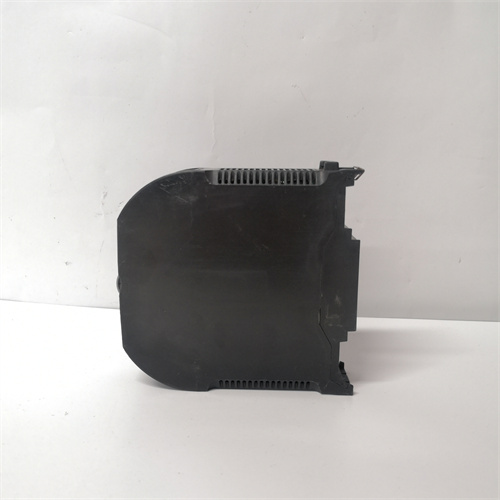

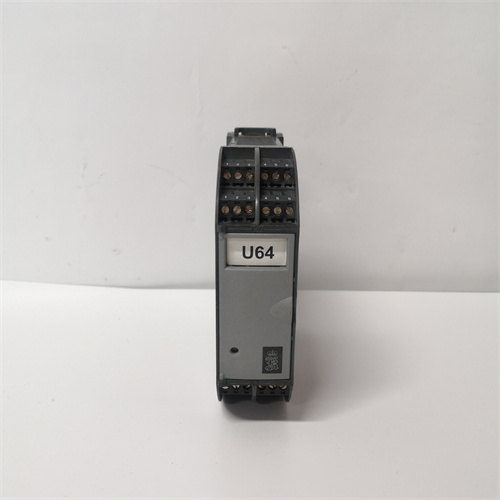

KONGSBERG 8100183产品详情
一、基本信息
品牌：KONGSBERG
型号：8100183
类型：自动化与控制系统模块
用途：主要用于KONGSBERG的K-Chief自动化系统或动态定位（DP）系统中，实现船舶、海洋平台或工业设备的信号采集、控制逻辑执行或通信中继，适用于海洋工程、能源开采及高端工业领域。
二、技术规格
核心功能
信号处理（若为I/O模块）：
支持模拟量输入/输出（如4-20mA、0-10V）或数字量输入/输出（如开关量、脉冲信号）。
通道数：通常为8/16路（依型号配置），支持冗余设计。
通信能力（若为通信模块）：
支持NMEA 0183/2000、CANbus、以太网等协议，用于船舶导航系统、动力定位系统或设备间的数据交换。
控制逻辑（若为控制器模块）：
集成PLC功能，支持预设程序或自定义逻辑（如通过KONGSBERG的编程工具）。
硬件参数
接口类型：
连接至KONGSBERG系统背板总线，支持热插拔。
外部信号连接：采用军用级或海洋级端子块，适应高振动、高湿度环境。
电源要求：
模块供电：24VDC（±20%），典型功耗<10W。
信号供电：独立电源或共享模块电源（依型号配置）。
隔离保护：
输入/输出/电源间电气隔离，耐压≥1.5kV（符合IEC 60945海洋标准）。
防护等级：IP66（防尘防水），适用于户外或甲板环境。
性能指标
响应时间：
数字量输入：<5ms（典型值），支持高速计数。
模拟量输入：采样周期<20ms（16通道时）。
环境适应性：
工作温度：-40℃至+70℃（宽温设计）。
抗振动：符合MIL-STD-810G标准（10-500Hz，5G）。
三、应用领域
海洋工程
动态定位（DP）系统：作为DP控制器的I/O模块，采集推进器、风速仪等传感器信号，并控制推进器电机。
船舶自动化：在油轮、LNG船中，监控发动机、发电机状态，并控制阀门、泵等设备。
能源开采
海上平台：集成至KONGSBERG的K-Chief系统，管理钻井设备、安全系统及电力分配。
可再生能源：用于海上风电或潮汐能平台，采集环境数据并控制发电设备。
国防与安全
军用舰艇：作为作战管理系统的子模块，实现武器控制、导航通信等功能。
四、产品优势
高可靠性与环境适应性
采用军用级或海洋级设计，通过DNV、ABS等船级社认证，适用于极端环境。
支持冗余配置（如双电源、双通信链路），确保关键系统不间断运行。
集成化与兼容性
直接兼容KONGSBERG的K-Chief、K-Pos等系统，无需额外转换器。
支持与第三方设备（如罗经、GPS）的接口扩展。
易维护性与安全性
模块化设计，支持在线更换与故障诊断。
内置自检功能，实时监测模块状态并报警。
KONGSBERG 8100183 Product Details
I.Basic Information
Brand:KONGSBERG
Model:8100183
Type:Automation and control system module
Purpose:Mainly used in KONGSBERG’s K-Chief automation system or dynamic positioning(DP)system to realize signal acquisition,control logic execution or communication relay of ships,offshore platforms or industrial equipment,suitable for marine engineering,energy mining and high-end industrial fields.
II.Technical Specifications
Core Functions
Signal processing(if it is an I/O module):
Supports analog input/output(such as 4-20mA,0-10V)or digital input/output(such as switch quantity,pulse signal).
Number of channels:usually 8/16 channels(configured according to the model),supporting redundant design.
Communication capabilities(if it is a communication module):
Supports NMEA 0183/2000,CANbus,Ethernet and other protocols,used for ship navigation systems,dynamic positioning systems or data exchange between devices.
Control logic(if it is a controller module):
Integrated PLC function,supports preset programs or custom logic(such as through KONGSBERG’s programming tool).
Hardware parameters
Interface type:
Connected to the KONGSBERG system backplane bus,supports hot swapping.
External signal connection:Use military-grade or marine-grade terminal blocks to adapt to high vibration and high humidity environments.
Power requirements:
Module power supply:24VDC(±20%),typical power consumption<10W.
Signal power supply:independent power supply or shared module power supply(configured by model).
Isolation protection:
Electrical isolation between input/output/power supply,withstanding voltage≥1.5kV(in accordance with IEC 60945 marine standard).
Protection level:IP66(dustproof and waterproof),suitable for outdoor or deck environments.
Performance indicators
Response time:
Digital input:<5ms(typical value),supports high-speed counting.
Analog input:sampling period<20ms(when 16 channels).
Environmental adaptability:
Working temperature:-40℃to+70℃(wide temperature design).
Vibration resistance:Meets MIL-STD-810G standard(10-500Hz,5G).
III.Application fields
Marine engineering
Dynamic positioning(DP)system:As an I/O module of the DP controller,it collects sensor signals such as thrusters and anemometers,and controls thruster motors.
Ship automation:In tankers and LNG ships,it monitors the status of engines and generators,and controls valves,pumps and other equipment.
Energy mining
Offshore platform:Integrated into KONGSBERG’s K-Chief system to manage drilling equipment,safety systems and power distribution.
Renewable energy:Used in offshore wind power or tidal power platforms to collect environmental data and control power generation equipment.
Defense and security
Military ships:As a submodule of the combat management system,it realizes functions such as weapon control,navigation and communication.
4.Product Advantages
High reliability and environmental adaptability
Adopting military-grade or marine-grade design,certified by classification societies such as DNV and ABS,suitable for extreme environments.
Supports redundant configuration(such as dual power supply,dual communication links)to ensure uninterrupted operation of key systems.
Integration and compatibility
Directly compatible with KONGSBERG’s K-Chief,K-Pos and other systems without the need for additional converters.
Supports interface expansion with third-party devices(such as compass,GPS).
Easy to maintain and safety
Modular design supports online replacement and fault diagnosis.
Built-in self-test function to monitor module status in real time and alarm.
