描述
一、核心功能与定位

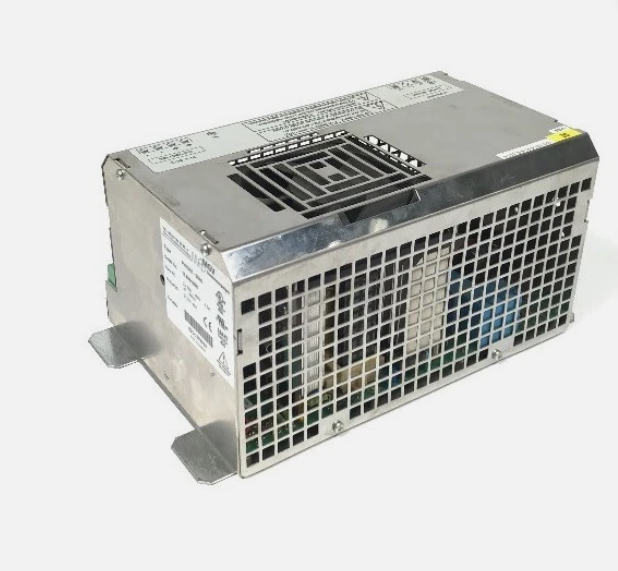

类型：工业级电源模块，专为KUKA机器人及自动化系统设计，提供稳定电力支持与智能控制功能。
核心功能：
电力供应：为机器人驱动器、伺服电机、控制器等核心组件提供高精度直流电源，确保系统稳定运行。
智能监测：内置LED状态指示器，实时反馈电源状态、逻辑信号及故障信息。
抗干扰设计：通过分层走线、RC滤波器等技术，抑制强电干扰与共模/差模干扰。
可编程性：支持用户自定义参数配置，适配不同控制模式（如位置、速度、力控制）。
二、技术参数
电气特性
输入电压：24V DC（部分版本支持220V AC输入）。
输出功率：≥500W）。
效率：≥90%（典型工业电源标准）。
环境适应性
工作温度：-20°C至+60°C（扩展型号支持更高温域）。
防护等级：IP20（标准机柜安装环境）。
抗振动/冲击：符合IEC 60068-2-6/2-27标准。
通信与扩展
接口协议：支持EtherCAT、Profinet等工业通信协议，实现与机器人控制器（如KRC系列）的实时数据交互。
扩展能力：兼容KUKA驱动器模块（如KSP600、KSD1系列），支持多轴协同控制。
三、核心应用场景
工业机器人系统
为KUKA机器人关节驱动器（如KSP600-3×64）提供动力，确保高速运动与高精度定位。
自动化生产线
在物流搬运、焊接、装配等场景中，稳定支持伺服电机与传感器的电力需求。
恶劣工业环境
耐高温、抗粉尘，适用于铸造、金属加工等高污染场景。
1.Core functions and positioning
Type:Industrial-grade power module,specially designed for KUKA robots and automation systems,providing stable power support and intelligent control functions.
Core functions:
Power supply:Provide high-precision DC power supply for core components such as robot drivers,servo motors,controllers,etc.to ensure stable operation of the system.
Intelligent monitoring:built-in LED status indicator,real-time feedback of power status,logic signals and fault information.
Anti-interference design:Through technologies such as layered traces,RC filters,etc.,strong electrical interference and common mode/differential mode interference are suppressed.
Programmability:Supports user-defined parameter configuration and adapts to different control modes(such as position,speed,and force control).
2.Technical parameters
Electrical characteristics
Input voltage:24V DC(some versions support 220V AC input).
Output power:≥500W).
Efficiency:≥90%(typical industrial power supply standard).
Environmental adaptability
Operating temperature:-20°C to+60°C(extended models support higher temperature domains).
Protection level:IP20(standard cabinet installation environment).
Vibration/impact resistance:complies with IEC 60068-2-6/2-27 standards.
Communication and Extension
Interface protocol:supports industrial communication protocols such as EtherCAT and Profinet to realize real-time data interaction with robot controllers(such as the KRC series).
Extended capability:Compatible with KUKA driver modules(such as KSP600,KSD1 series),supports multi-axis collaborative control.
3.Core application scenarios
Industrial robot system
Powers KUKA robotic joint drivers such as KSP600-3×64 to ensure high-speed motion and high-precision positioning.
Automated production line
In logistics handling,welding,assembly and other scenarios,the power demand of servo motors and sensors is stably supported.
Harsh industrial environment
It is high temperature resistant and dust resistant,suitable for high pollution scenarios such as casting and metal processing.
