产品概述

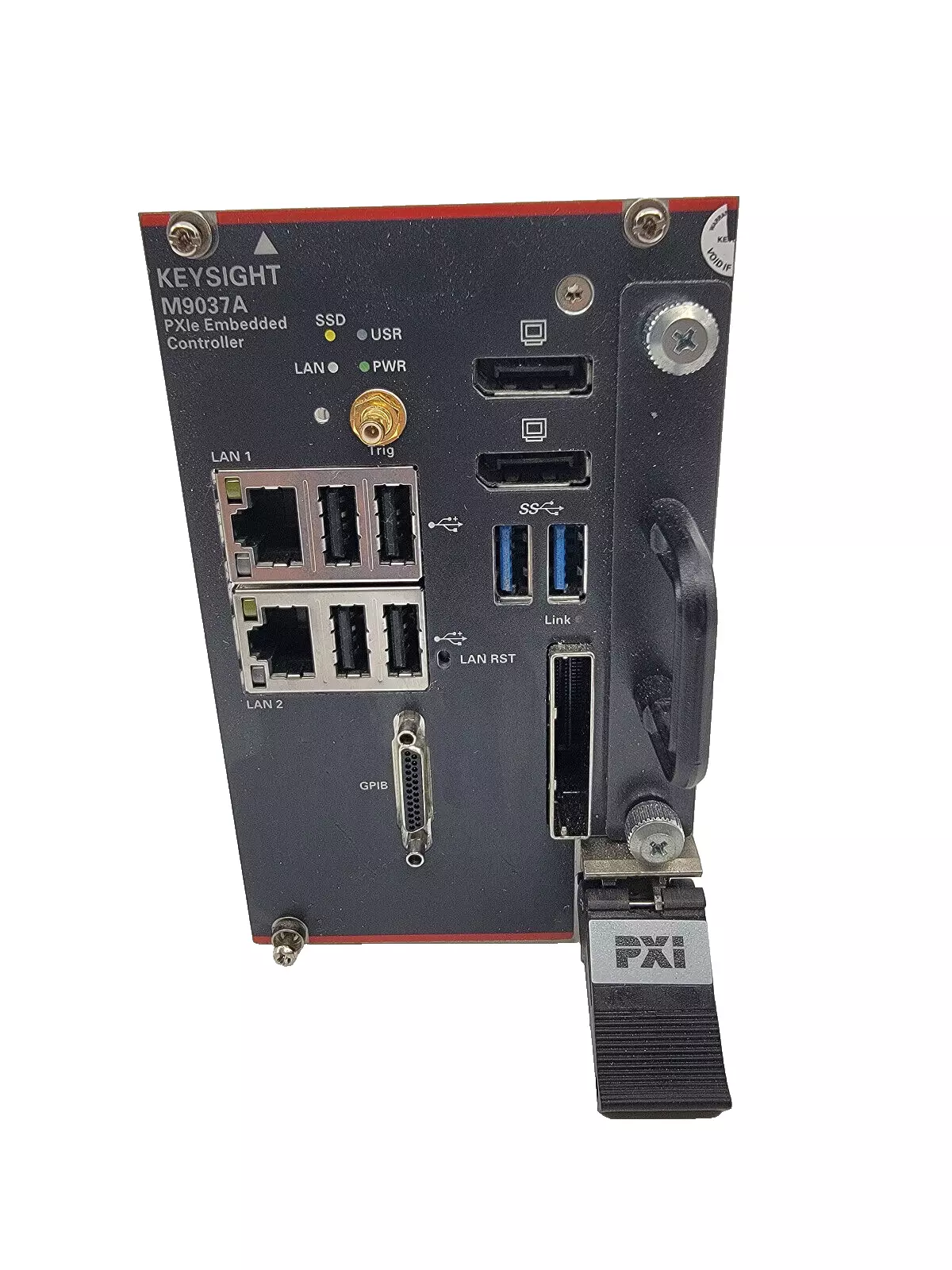

M9037A是是德科技推出的PXIe嵌入式控制器，定位为高性能测试系统的核心控制单元，适用于航空航天、国防、半导体测试等复杂场景。其设计强调高速数据传输、安全可靠性及灵活扩展性，支持前插拔固态硬盘与多协议接口，满足严苛环境需求。
核心参数与性能
硬件配置
-处理器：Intel i7-4700EQ四核处理器（2.4 GHz），支持4线程并行；
-存储：256 GB SSD（前面板可插拔，支持安全擦除）；
-内存：最高可扩展至16 GB DDR3 RAM。
接口与通信
-前面板接口：
-2×USB 3.0、4×USB 2.0、2×LAN（10/100/1fat）、1×GPIB；
-2×DisplayPort（支持外接显示器）；
-背板带宽：PCIe Gen 3 x24链路，最大数据带宽15 GB/s。
操作系统与兼容性
-预装系统：Windows 10；
-兼容机箱：支持是德科技M9018B PXIe机箱（16混合插槽，总带宽8 GB/s）。
技术特点
安全与维护
-固态硬盘前插拔：无需拆卸机箱即可更换/备份数据，适用于安全敏感环境；
-低功耗设计：优化散热结构，适配4U机架空间（搭配M9018B机箱仅占5U）。
扩展与同步
-对等通信：通过PCIe开关矩阵实现外设插槽间直连（无需经由系统插槽）；
-多链路配置：支持Gen 3 PCIe灵活分配带宽（x24/x16+x8等）。
应用优化
-高可靠性：通过GPIB接口兼容传统仪器，减少系统升级成本；
-实时控制：Windows系统结合LabVIEW等软件实现复杂测试流程编排。
典型应用场景
航空航天与国防
-飞控系统仿真（多传感器数据同步采集）；
-导航设备校准（GPIB仪器集群控制）。
半导体测试
-高密度探针台集成（PXIe模块扩展至16插槽）；
-参数测试机（PTM）主控（高速数据吞吐）。
安全环境部署
-军事通信设备测试（固态硬盘加密擦除）；
-核设施监测系统（前维护设计降低辐射暴露风险）。
Product Overview
The M9037A is a PXIe embedded controller launched by Keysight Technology.It is positioned as the core control unit of a high-performance test system and is suitable for complex scenarios such as aerospace,defense,and semiconductor testing.Its design emphasizes high-speed data transmission,security,reliability and flexible scalability,and supports front-swap solid-state drives and multi-protocol interfaces to meet strict environmental needs.
Core parameters and performance
Hardware configuration
-Processor:Intel i7-4700EQ quad-core processor(2.4 GHz),supports 4-thread parallelism;
-Storage:256 GB SSD(front panel is pluggable and supports secure erasing);
-Memory:Up to 16 GB of DDR3 RAM.
Interface and communication
-Front panel interface:
-2×USB 3.0,4×USB 2.0,2×LAN(10/100/1fat),1×GPIB;
-2×DisplayPort(supports external monitor);
-Backplane bandwidth:PCIe Gen 3 x24 link,maximum data bandwidth of 15 GB/s.
Operating system and compatibility
-Preinstalled system:Windows 10;
-Compatible chassis:Supports Keysight M9018B PXIe chassis(16 hybrid slots,total bandwidth of 8 GB/s).
Technical Features
Safety and maintenance
-SSD front plug-in and unplug:replace/backup data without removing the chassis,suitable for safe and sensitive environments;
-Low-power design:optimized heat dissipation structure,adapted to 4U rack space(only 5U is occupied with the M9018B chassis).
Extend and Synchronize
-Peer-to-peer communication:realize direct connection between peripheral slots through PCIe switch matrix(no need to pass through system slots);
-Multi-link configuration:Supports Gen 3 PCIe to flexibly allocate bandwidth(x24/x16+x8,etc.).
Application optimization
-High reliability:compatible with traditional instruments through the GPIB interface,reducing system upgrade costs;
-Real-time control:Windows system combines software such as LabVIEW to implement complex testing process orchestration.
Typical application scenarios
Aerospace and national defense
-Flight control system simulation(simultaneous acquisition of multi-sensor data);
-Navigation Equipment Calibration(GPIB Instrument Cluster Control).
Semiconductor testing
-High-density probe table integration(PXIe module extended to 16 slots);
-Parameter Testing Machine(PTM)master control(high-speed data throughput).
Safe environment deployment
-Military communication equipment testing(solid-state hard disk encryption erase);
-Nuclear facility monitoring system(pre-maintenance design reduces radiation exposure risk).
