描述
产品简要说明

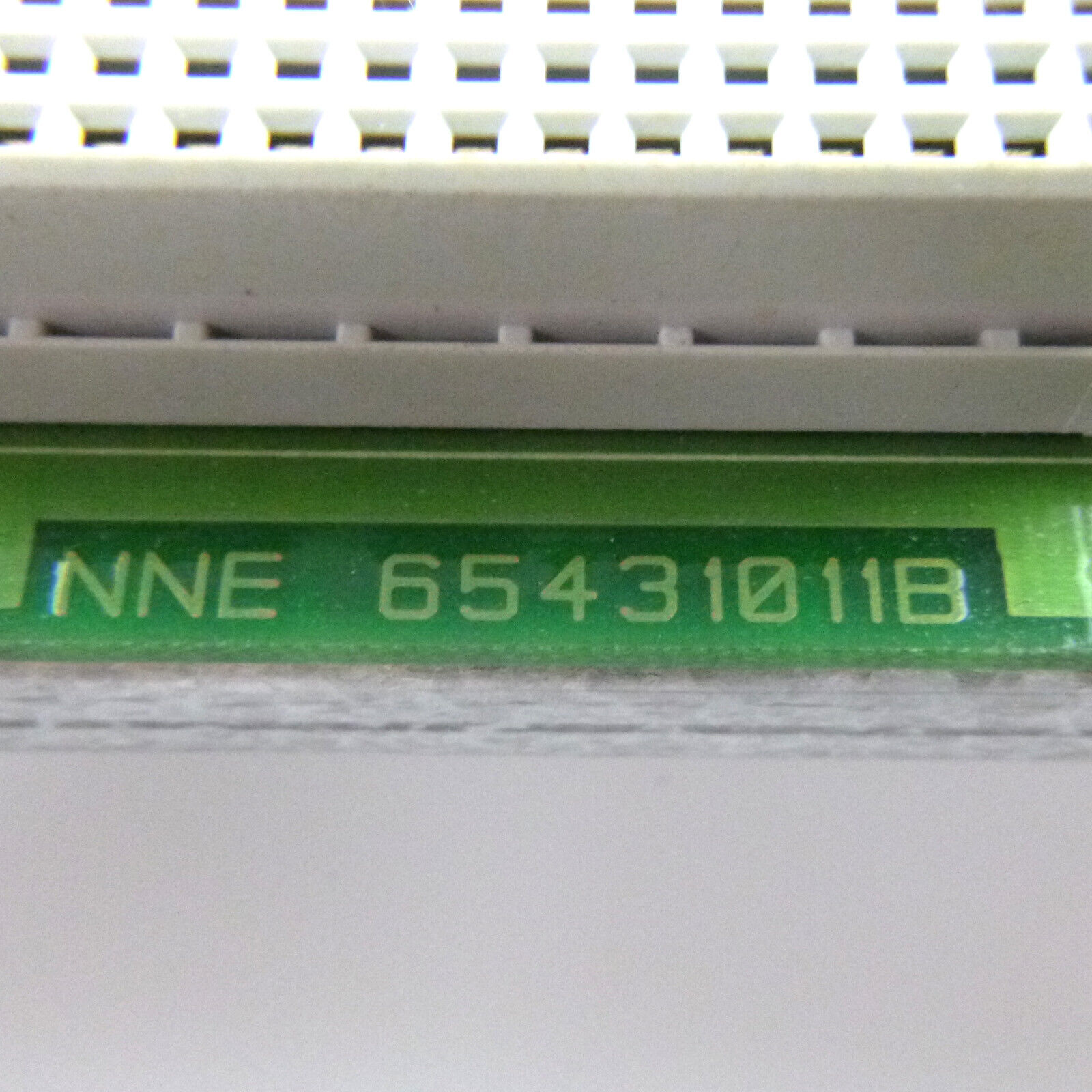

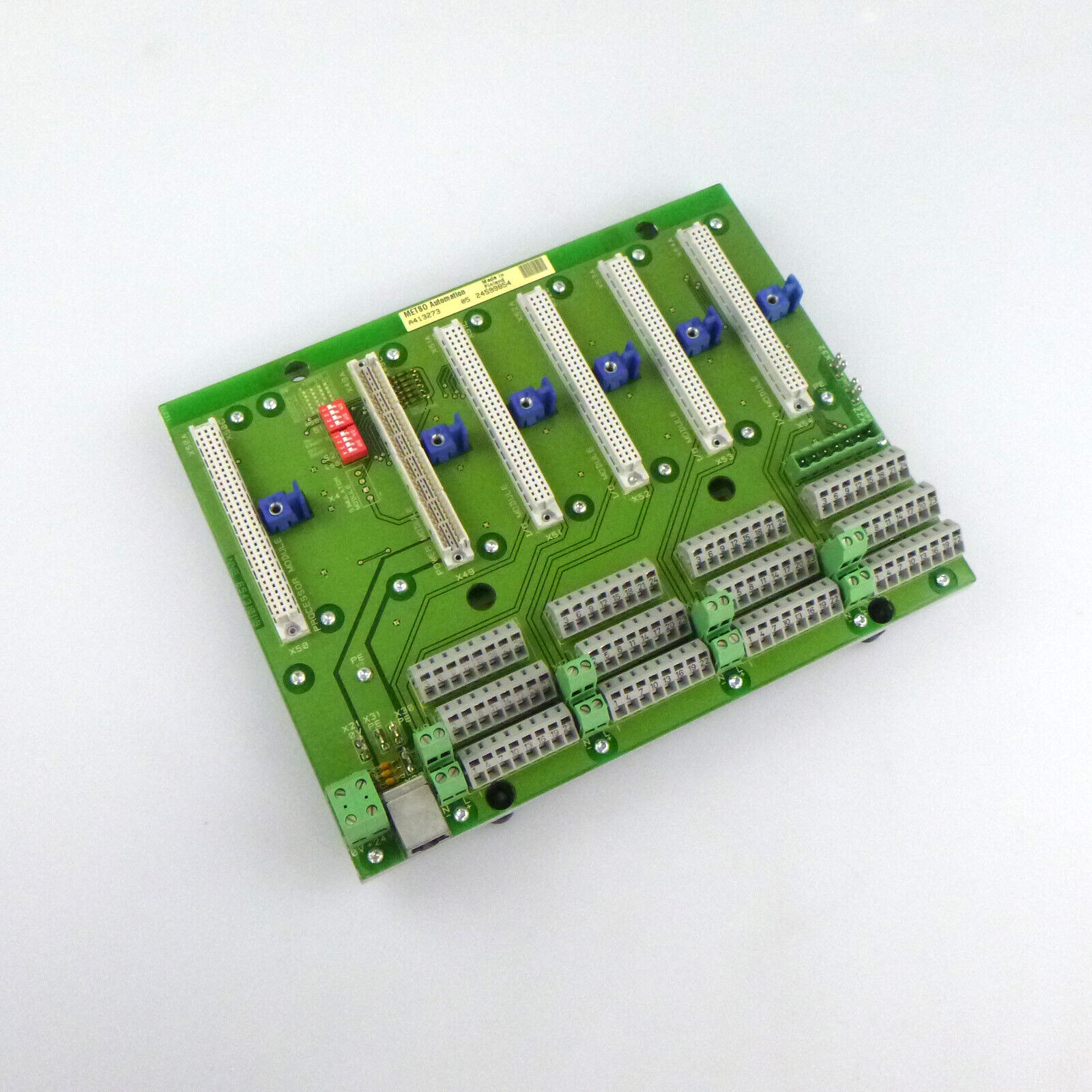

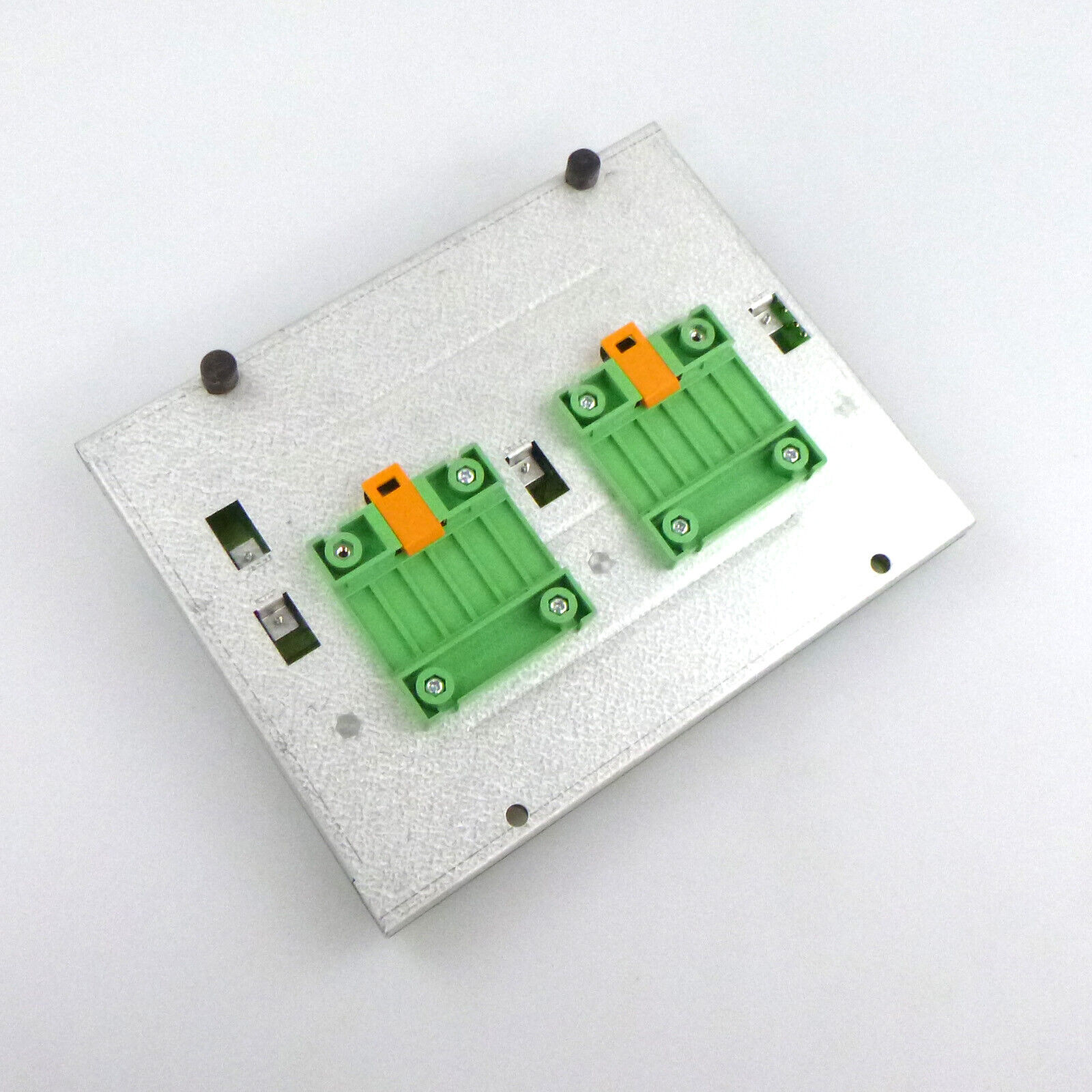

Metso NNE65431011B A413273是一款专为精密制造与过程控制设计的工业控制模块，核心功能包括：
高速运动控制：支持4轴同步运动控制，定位精度达±0.01mm
多协议兼容：集成EtherCAT、Profinet、Modbus TCP/IP协议，支持跨系统数据交互
工业级可靠性：宽温运行（-30°C至70°C），IP67防护等级
智能诊断系统：实时监测硬件状态，故障定位时间≤10秒
产品详细说明
1.技术架构与核心功能
控制单元特性：
处理器配置：四核ARM Cortex-R5F处理器，主频1.2GHz，支持浮点运算
冗余设计：双电源输入+双通信通道冗余，故障切换时间≤50ms
运动控制能力：
多轴同步：支持4轴电子齿轮同步控制，同步误差≤±1μs
插补算法：内置直线/圆弧/螺旋插补，支持G代码解析（ISO 6983标准）
数据处理：
实时采集：16位ADC采样，支持±10V模拟量输入
存储扩展：8GB DDR4+16GB SSD，支持历史数据存储与分析
2.工业级可靠性设计
抗干扰能力：
电磁兼容性：符合IEC 61000-4-2/-4-5标准，抗ESD达±25kV
信号隔离：数字量通道隔离电压≥4kV，模拟量通道隔离电压≥2kV
环境适应性：
宽温运行：-30°C至70°C（工作）/-40°C至85°C（存储）
防护等级：IP67（防尘防水），适用于潮湿/多尘环境
3.行业应用适配性
特殊模块扩展：
高精度定位：支持F3NC32-0N定位模块（5Mpps脉冲输出），适用于半导体晶圆切割、精密注塑等场景
安全等级：可配置SIL 3认证版本，满足制药、食品行业安全标准
技术规格:Metso NNE65431011B A413273
参数项规格描述
处理器四核ARM Cortex-R5F，主频1200MHz
内存8GB DDR4+16GB SSD
通信接口4×EtherCAT（RJ45）+2×Profinet（RJ45）+1×RS-485（Modbus RTU）
运动控制轴数4轴同步控制
工作温度-30℃至70℃
防护等级IP67（标准配置）
核心价值与性能亮点
1.超精密运动控制
技术突破：4轴同步误差≤±1μs，支持纳米级定位精度
2.极端环境稳定性
场景适配：在-30°C低温环境下仍保持100%运行可靠性，适用于极地科考设备
应对挑战，创造价值
1.传统运动控制器精度不足
技术突破：通过自适应滤波算法，将定位噪声降低至±0.005mm
2.复杂环境信号失真
场景案例：某半导体工厂采用NNE65431011B后，晶圆切割良率提升15%
Product brief description
Metso NNE65431011B A413273 is an industrial control module designed for precision manufacturing and process control,with core functions including:
High-speed motion control:supports 4-axis synchronous motion control,positioning accuracy up to±0.01mm
Multi-protocol compatibility:Integrate EtherCAT,Profinet,Modbus TCP/IP protocols,supports cross-system data interaction
Industrial-grade reliability:Wide temperature operation(-30°C to 70°C),IP67 protection rating
Intelligent diagnostic system:Real-time monitoring of hardware status,fault location time≤10 seconds
Product details
1.Technical architecture and core functions
Control unit features:
Processor configuration:Quad-core ARM Cortex-R5F processor,main frequency 1.2GHz,support floating point operation
Redundant design:dual power input+dual communication channel redundancy,failover time≤50ms
Movement control ability:
Multi-axis synchronization:Supports 4-axis electronic gear synchronization control,synchronization error≤±1μs
Interpolation algorithm:built-in linear/arc/spiral interpolation,supporting G code analysis(ISO 6983 standard)
Data processing:
Real-time acquisition:16-bit ADC sampling,supports±10V analog input
Storage extension:8GB DDR4+16GB SSD,supports historical data storage and analysis
2.Industrial-grade reliability design
Anti-interference ability:
Electromagnetic compatibility:complies with IEC 61000-4-2/-4-5 standard,with±25kV resistance
Signal isolation:digital channel isolation voltage≥4kV,analog channel isolation voltage≥2kV
Environmental adaptability:
Wide temperature operation:-30°C to 70°C(operation)/-40°C to 85°C(storage)
Protection level:IP67(dust-proof and waterproof),suitable for humid/dust-filled environments
3.Industry application adaptability
Special module extensions:
High-precision positioning:Supports F3NC32-0N positioning module(5Mpps pulse output),suitable for semiconductor wafer cutting,precision injection molding and other scenarios
Safety level:SIL 3 certified version can be configured to meet safety standards in the pharmaceutical and food industry
Technical specifications:Metso NNE65431011B A413273
Parameters Specification Description
Processor Quad-core ARM Cortex-R5F,main frequency 1200MHz
Memory 8GB DDR4+16GB SSD
Communication interface 4×EtherCAT(RJ45)+2×Profinet(RJ45)+1×RS-485(Modbus RTU)
Motion control axis number 4-axis synchronization control
Operating temperature-30℃to 70℃
Protection level IP67(standard configuration)
Core Valuesand Performance Highlights
1.Ultra-precision motion control
Technical breakthrough:4-axis synchronization error≤±1μs,supporting nano-level positioning accuracy
2.Extreme environmental stability
Scenario adaptation:100%operational reliability is maintained under low temperature environment-30°C,suitable for polar scientific research equipment
Respond to challenges and create value
1.Traditional motion controllers have insufficient accuracy
Technical breakthrough:through adaptive filtering algorithm,reduce positioning noise to±0.005mm
2.Signal distortion in complex environments
Scenario case:After a semiconductor factory adopts NNE65431011B,the wafer cutting yield increased by 15%
