描述
产品简要说明

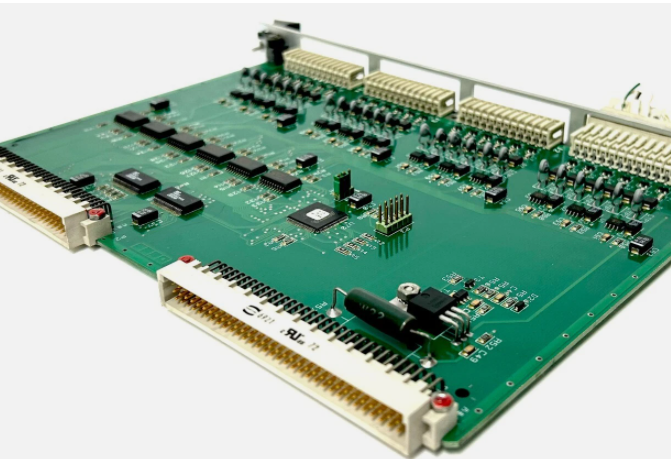

Modicon AEG AS-S911-801是施耐德电气（Schneider Electric）Modicon系列的高性能工业PLC模块，专为复杂工业自动化系统的实时控制与信号处理设计。其核心功能包括：
硬实时处理：100μs扫描周期
多协议兼容：支持Modbus TCP/IP、EtherNet/IP及PROFINET
高密度I/O扩展：64点数字量输入/输出
产品详细说明
1.硬件架构与处理能力
处理器与内存
CPU：32位高性能处理器（主频未公开）
内存：
RAM：6MB（程序存储）
数据存储：20MB（支持实时数据记录与分析）
实时性：
扫描周期：≤100μs（典型值）
硬实时任务处理能力
通信接口
以太网接口：
1个千兆工业以太网口（支持冗余配置）
协议支持：Modbus TCP/IP、EtherNet/IP、PROFINET
串口：
2个RS-485接口（兼容Modbus RTU）
电源与供电
电压范围：24V DC±10%
功耗：≤15W（典型值）
冗余电源：支持双电源热备份
产品概述:Modicon AEG AS-S911-801
作为Modicon系列的高性能控制模块，其核心价值在于硬实时处理与高密度I/O扩展能力：
技术优势：
硬PLC架构：无操作系统的实时性保障
宽温设计：-25℃至70℃工作范围
行业适配：
智能制造：多轴运动控制与产线节拍优化
能源管理：光伏逆变器实时监测与故障诊断
轨道交通：列车信号系统逻辑控制
Product brief description
Modicon AEG AS-S911-801 is a high-performance industrial PLC module from Schneider Electric Modicon series,designed for real-time control and signal processing of complex industrial automation systems.Its core functions include:
Hard real-time processing:100μs scan cycle
Multi-protocol compatibility:Supports Modbus TCP/IP,EtherNet/IP and PROFINET
High-density I/O expansion:64-point digital input/output
Product details
1.Hardware architecture and processing capabilities
Processor and memory
CPU:32-bit high-performance processor(main frequency not disclosed)
Memory:
RAM:6MB(program storage)
Data storage:20MB(supports real-time data recording and analysis)
Real-time:
Scan period:≤100μs(typical)
Hard real-time task processing capability
Communication interface
Ethernet interface:
1 Gigabit Industrial Ethernet port(supports redundant configuration)
Protocol support:Modbus TCP/IP,EtherNet/IP,PROFINET
Serial port:
2 RS-485 interfaces(compatible with Modbus RTU)
Power supply and power supply
Voltage range:24V DC±10%
Power consumption:≤15W(typical)
Redundant power supply:Support dual power supply hot backup
Product Overview:Modicon AEG AS-S911-801
As a high-performance control module of the Modicon series,its core value lies in hard real-time processing and high-density I/O expansion capabilities:
Technical Advantages:
Hard PLC architecture:Real-time guarantee without operating system
Wide temperature design:-25℃to 70℃working range
Industry adaptation:
Intelligent manufacturing:multi-axis motion control and production line beat optimization
Energy management:Real-time monitoring and fault diagnosis of photovoltaic inverters
Rail Transit:Logical Control of Train Signal System
