描述
产品概述

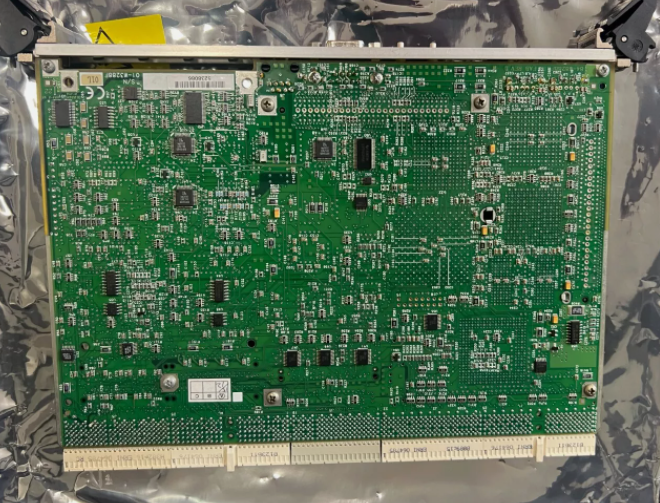

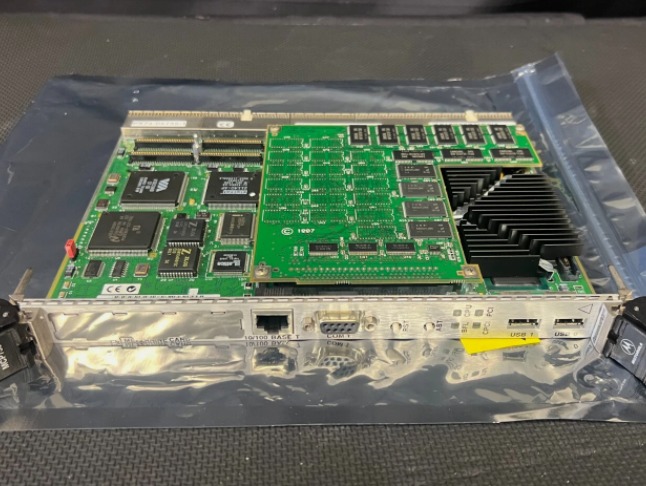

MOTOROLA MCP750是一款基于PowerPC架构的高性能处理器模块，专为工业控制、数据处理及嵌入式系统设计。其核心功能包括实时控制、通信管理及复杂算法处理，适用于工业自动化、通信设备、航空航天等场景。
核心功能与技术特点
1.处理能力
架构：采用PowerPC 750微处理器，支持32位RISC指令集，集成浮点运算单元（FPU），适用于高精度计算。
性能：处理速度可达30Hz，程序容量5MB，数据容量1MB，支持多任务并行处理。
2.通信接口
标准接口：提供以太网、串口、CAN总线等通信协议，支持与PLC、HMI、传感器等设备集成。
扩展能力：通过PMC（PCI Mezzanine Card）接口扩展功能模块（如光纤通信、存储扩展）。
3.电磁兼容性
抗干扰性能：符合EN 50082-2、IEC 61000-4-2～4-5等工业级电磁兼容标准，支持4kV空气接触ESD、2kV浪涌抗扰度。
环境适应性：工作温度范围-25℃至+70℃，防护等级IP67，适用于严苛工业环境。
4.安全认证
安全标准：通过UL/UL-C认证，适用于危险环境（如I类、II类防爆区域）。
可靠性：支持冗余设计，故障率低于0.3%，提供1年质保。
技术规格
参数规格
处理器架构PowerPC 750
工作电压42V DC
内存容量SDRAM 32MB～128MB，Flash 8MB
通信接口10/100TX以太网、串口、CAN总线、PMC扩展接口
尺寸与重量140mm×100mm×30mm，1kg
操作系统VxWorks、Linux、定制化实时操作系统
Product Overview
The MOTOROLA MCP750 is a high-performance processor module based on PowerPC architecture designed for industrial control,data processing and embedded systems.Its core functions include real-time control,communication management and complex algorithm processing,and are suitable for industrial automation,communication equipment,aerospace and other scenarios.
Core functions and technical features
1.Processing capability
Architecture:Adopts PowerPC 750 microprocessor,supports 32-bit RISC instruction set,integrated floating point operation unit(FPU),suitable for high-precision computing.
Performance:Processing speed up to 30Hz,program capacity 5MB,data capacity 1MB,and multi-tasking parallel processing.
2.Communication interface
Standard interface:Provides communication protocols such as Ethernet,serial port,CAN bus,etc.,and supports integration with PLC,HMI,sensor and other devices.
Extended capability:Extend functional modules(such as fiber optic communication,storage expansion)through the PMC(PCI Mezzanine Card)interface.
3.Electromagnetic compatibility
Anti-interference performance:Comply with industrial grade electromagnetic compatibility standards such as EN 50082-2,IEC 61000-4-2~4-5,and supports 4kV air contact ESD and 2kV surge immunity.
Environmental adaptability:Operating temperature range-25℃to+70℃,protection level IP67,suitable for harsh industrial environments.
4.Safety certification
Safety standards:Passed UL/UL-C certification and are suitable for hazardous environments(such as Class I and Class II explosion-proof areas).
Reliability:Supports redundant design,failure rate is less than 0.3%,and a 1-year warranty is provided.
Technical Specifications
Parameters Specifications
Processor Architecture PowerPC 750
Operating voltage 42V DC
Memory capacity SDRAM 32MB~128MB,Flash 8MB
Communication interface 10/100TX Ethernet,serial port,CAN bus,PMC extension interface
Dimensions and weights 140mm×100mm×30mm,1kg
Operating system VxWorks,Linux,customized real-time operating system
