描述
产品概述

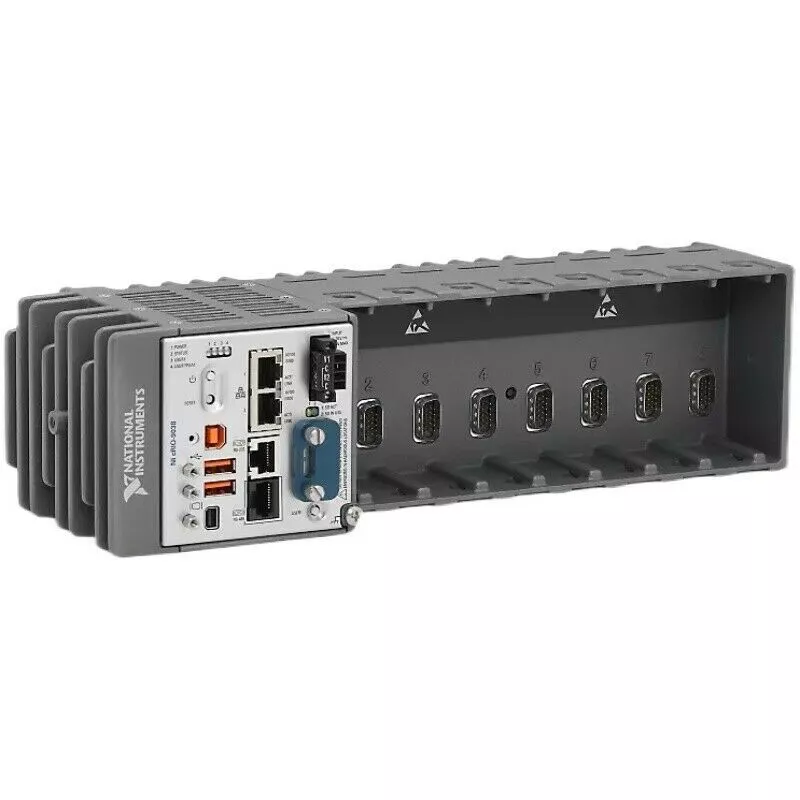

NI 9038是美国国家仪器（NI）推出的高性能嵌入式控制器，基于CompactRIO平台设计，集成FPGA与实时处理器，适用于工业自动化、环境监测及复杂控制系统的开发。其无风扇设计与宽温工作范围，使其在严苛环境中表现稳定。
核心硬件配置
处理器架构
-实时控制器：运行NI Linux实时操作系统（Real-Time OS），保障确定性响应；
-FPGA模块：搭载Xilinx Kintex-7 160T FPGA芯片，支持自定义硬件逻辑开发。
存储与扩展
-存储容量：8 GB（具体类型未明确，推测为闪存）；
-扩展接口：8槽CompactRIO模块化插槽，支持I/O模块灵活扩展。
通信与连接
-网络接口：2个千兆以太网端口（支持冗余网络配置）；
-外设接口：2个USB主机接口、1个USB设备接口、2个串行端口；
-显示输出：Mini DisplayPort（可外接本地人机界面）。
软件与开发支持
编程环境：
-兼容LabVIEW Real-Time与LabVIEW FPGA模块，支持图形化开发；
-开源Linux系统允许调用Python、C++等语言进行深度定制。
同步与触发：
-通过PXI星触发（Star Trigger）实现多控制器同步；
-FPGA可编程I/O支持自定义触发逻辑。
环境适应性与可靠性
工作温度：-40°C至70°C（扩展温度等级）；
机械设计：无风扇散热结构，抗振动与冲击（适配工业级应用）；
电源：宽电压输入（具体参数需参考模块化电源配置）。
Product Overview
NI 9038 is a high-performance embedded controller launched by National Instruments(NI).It is designed based on the CompactRIO platform and integrates FPGA and real-time processor.It is suitable for the development of industrial automation,environmental monitoring and complex control systems.Its fanless design and wide temperature working range make it stable in harsh environments.
Core hardware configuration
Processor architecture
-Real-time controller:Run NI Linux real-time operating system(Real-Time OS)to ensure deterministic response;
-FPGA module:Equipped with Xilinx Kintex-7 160T FPGA chip,supporting custom hardware logic development.
Storage and Extension
-Storage capacity:8 GB(the specific type is not clear,it is supposed to be flash memory);
-Extended interface:8-slot CompactRIO modular slot,supports flexible expansion of I/O modules.
Communication and connection
-Network interface:2 Gigabit Ethernet ports(supports redundant network configuration);
-Peripheral interface:2 USB host interfaces,1 USB device interface,2 serial ports;
-Display output:Mini DisplayPort(can be connected to the local human-computer interface).
Software and development support
Programming environment:
-Compatible with LabVIEW Real-Time and LabVIEW FPGA modules,supporting graphical development;
-The open source Linux system allows in-depth customization to be made by calling Python,C++and other languages.
Synchronization and Triggering:
-Multi-controller synchronization is achieved through PXI star trigger;
-FPGA programmable I/O supports custom trigger logic.
Environmental adaptability and reliability
Operating temperature:-40°C to 70°C(extended temperature level);
Mechanical design:fanless heat dissipation structure,vibration and impact resistance(adapted to industrial-grade applications);
Power supply:Wide voltage input(specific parameters need to refer to the modular power supply configuration).
