描述

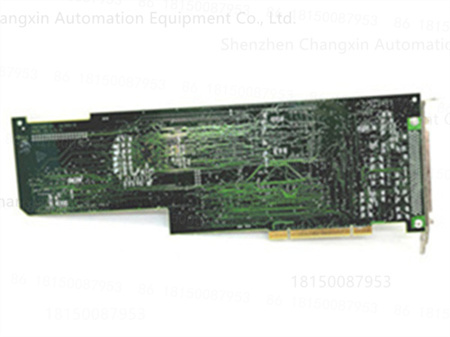

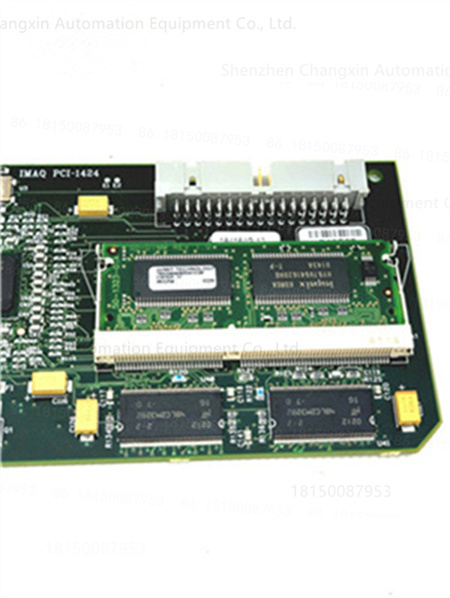

NI PCI-1424是美国国家仪器（National Instruments）公司生产的一款数字相机图像采集卡。以下是其产品详情：
基本信息
产品类型：数字相机图像采集卡
部件编号：777662-01（RS-422/TTL）、777662-02（LVDS/TTL）
分辨率：32位
接口：100针SCSI类型I/O连接器
性能参数
时钟速度：50MHz
采集速率：200MB/s
板载内存：16MB，可通过内存模块扩展
触发I/O线：支持多达4个外部触发I/O线，电压范围为0V至5V（TTL）
查找表：具有四个8位或两个16位查找表（LUT），用于数据的实时映射
时钟输出：双时钟输出，可生成500kHz至50MHz的频率，用于需要外部时钟的数字成像设备或相机
软件支持
配套软件：NI Vision Acquisition Software 8.0或更高版本，包含NI-IMAQ驱动
兼容开发环境：LabVIEW、LabWindows/CVI、Microsoft Visual Basic、NI Vision Builder for Automated Inspection、NI Vision Development Module和Measurement Studio等
物理特性
尺寸：4.5×13.2英寸
重量：0.5磅
NI PCI-1424 is a digital camera image acquisition card produced by National Instruments.The following are product details:
Basic Information
Product Type:Digital Camera Frame Grabber
Part Number:777662-01(RS-422/TTL),777662-02(LVDS/TTL)
Resolution:32-bit
Interface:100-pin SCSI-type I/O connector
Performance Parameters
Clock Speed:50 MHz
Acquisition Rate:200 MB/s
Onboard Memory:16 MB,expandable via memory modules
Trigger I/O Lines:Supports up to four external trigger I/O lines with a voltage range of 0 V to 5 V(TTL)
Look-Up Table:Features four 8-bit or two 16-bit look-up tables(LUTs)for real-time data mapping
Clock Output:Dual clock outputs capable of generating frequencies from 500 kHz to 50 MHz for use with digital imaging devices or cameras requiring an external clock
Software Support
Compatible Software:NI Vision Acquisition Software 8.0 or later,including NI-IMAQ Drivers
Compatible development environments:LabVIEW,LabWindows/CVI,Microsoft Visual Basic,NI Vision Builder for Automated Inspection,NI Vision Development Module,and Measurement Studio.
Physical Characteristics
Dimensions:4.5 x 13.2 inches
Weight:0.5 lb
