产品概述

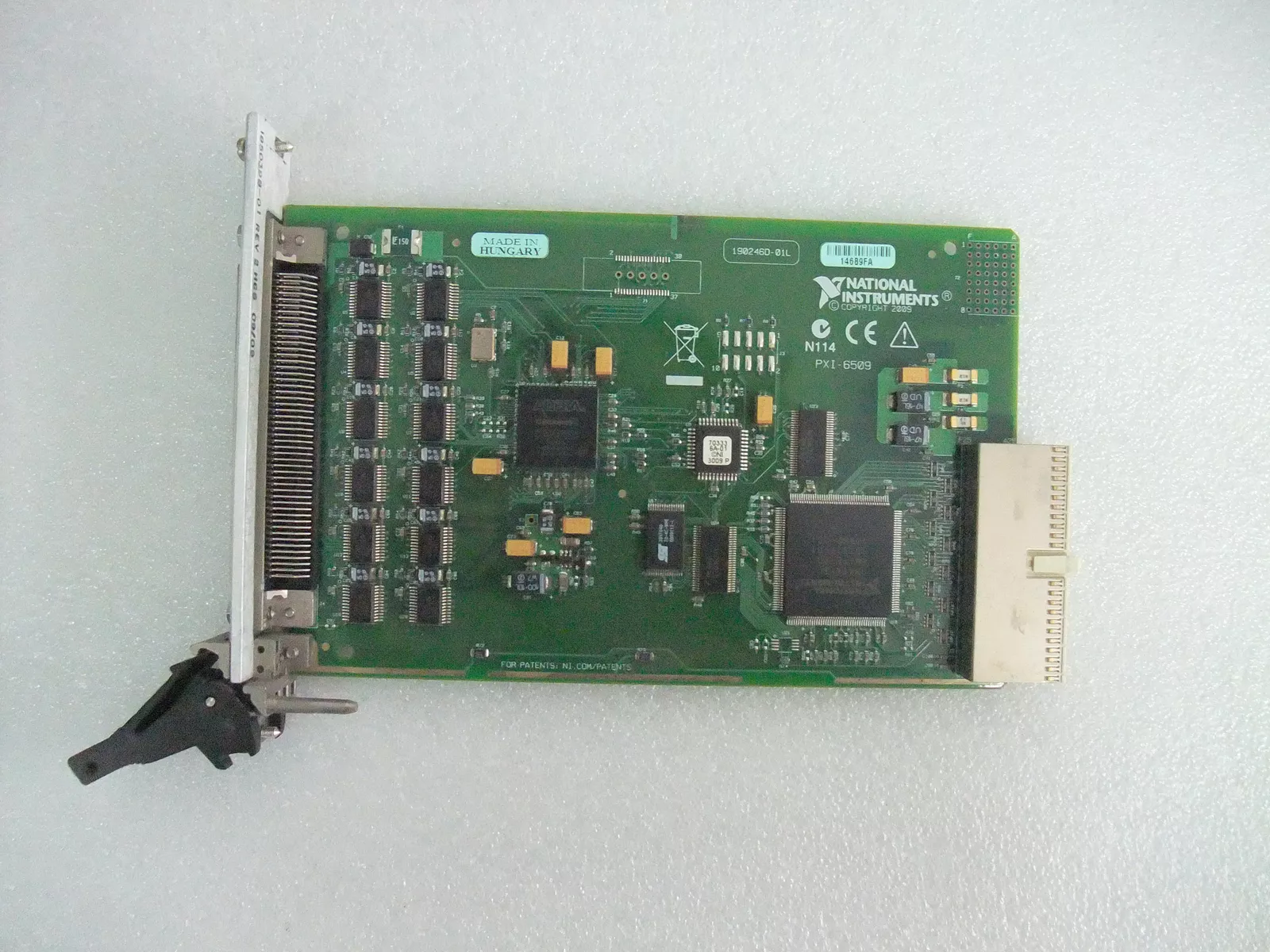

NI PXI-6509是美国国家仪器（NI）推出的96通道数字I/O（DIO）模块，专为工业控制、自动化测试及高可靠性应用场景设计。其支持PXI/PXI Express总线，具备高电流驱动能力（24 mA）和丰富的工业安全特性，可直接驱动固态继电器（SSR）等外部设备。
核心参数与性能
数字I/O特性
-通道数：96路双向数字I/O线，支持独立配置为输入或输出；
-电平兼容性：5 V TTL/CMOS逻辑电平；
-驱动能力：每通道源/漏电流±24 mA，无需外接电源即可驱动输出。
工业安全功能
-可编程上电状态：软件配置初始输出状态，确保设备上电时安全启动；
-数字I/O看门狗：监测系统故障（如死机），自动切换至预设安全状态；
-输入滤波器：可选短脉冲抑制（80 ns–5.12 ms滤波区间），消除噪声与继电器抖动。
扩展与同步
-变化检测：实时触发中断通知状态变化，降低CPU轮询负载；
-定时器/计数器：支持正交编码器输入（X1/X2/X4模式）及PWM输出。
技术特点
高可靠性设计
-故障恢复：看门狗功能在软件无响应时强制输出安全信号，适用于工业执行器控制（如阀门、电机）；
-隔离保护：输入/输出通道间耐压>100 V（典型值），适应复杂电磁环境。
灵活配置
-端口分组：以8位端口为单位配置方向（输入/输出）；
-软件生态：支持NI-DAQmx驱动及LabVIEW、LabWindows/CVI开发环境，提供代码生成与多线程流式传输优化。
环境适应性
-工作温度：0°C–55°C（工业级标准）；
-机械兼容性：PXI/PXI Express混合插槽兼容，适配多种机箱布局。
典型应用场景
工业自动化
-生产线设备控制（如继电器阵列驱动）；
-机器人多轴协同（通过DIO信号同步）。
测试与测量
-数字电路验证（高速状态切换与逻辑分析）；
-多传感器数据采集（结合变化检测减少数据处理负载）。
安全关键系统
-紧急停机控制（看门狗触发安全输出）；
-航空航天设备测试（宽温与抗振动设计）。
Product Overview
NI PXI-6509 is a 96-channel digital I/O(DIO)module launched by National Instruments(NI),designed for industrial control,automation testing and high reliability application scenarios.It supports PXI/PXI Express bus,has high current driving capability(24 mA)and rich industrial safety features,and can directly drive external devices such as solid-state relays(SSRs).
Core parameters and performance
Digital I/O Features
-Number of channels:96 bidirectional digital I/O lines,supported for independent configuration as input or output;
-Level compatibility:5 V TTL/CMOS logic level;
-Drive capability:±24 mA per channel source/drain current,drive the output without an external power supply.
Industrial safety features
-Programmable power-on status:The software configures the initial output status to ensure safe start when the device is powered on;
-Digital I/O watchdog:Monitor system failure(such as crash),automatically switch to preset safety status;
-Input filter:Optional short pulse suppression(80 ns–5.12 ms filtering interval)to eliminate noise and relay jitter.
Extend and Synchronize
-Change detection:trigger interrupt notification status changes in real time to reduce CPU polling load;
-Timer/Counter:Supports quadrature encoder input(X1/X2/X4 mode)and PWM output.
Technical Features
High reliability design
-Fault recovery:The watchdog function forces the output of safety signals when the software does not respond,and is suitable for industrial actuator control(such as valves,motors);
-Isolation protection:Withstand voltage between input/output channels>100 V(typical value),adapting to complex electromagnetic environments.
Flexible configuration
-Port grouping:Configure direction(input/output)in units of 8-bit ports;
-Software Ecosystem:Supports NI-DAQmx driver and LabVIEW and LabWindows/CVI development environments,providing code generation and multi-thread streaming optimization.
Environmental adaptability
-Operating temperature:0°C–55°C(industrial standard);
-Mechanical Compatibility:PXI/PXI Express hybrid slots are compatible,suitable for a variety of chassis layouts.
Typical application scenarios
Industrial automation
-Production line equipment control(such as relay array drive);
-Robot multi-axis coordination(synchronization via DIO signal).
Testing and Measurement
-Digital circuit verification(high-speed state switching and logic analysis);
-Multi-sensor data acquisition(combined with change detection to reduce data processing load).
Safety-critical systems
-Emergency shutdown control(watchdog triggers safe output);
-Testing of aerospace equipment(wide temperature and vibration resistance design).
