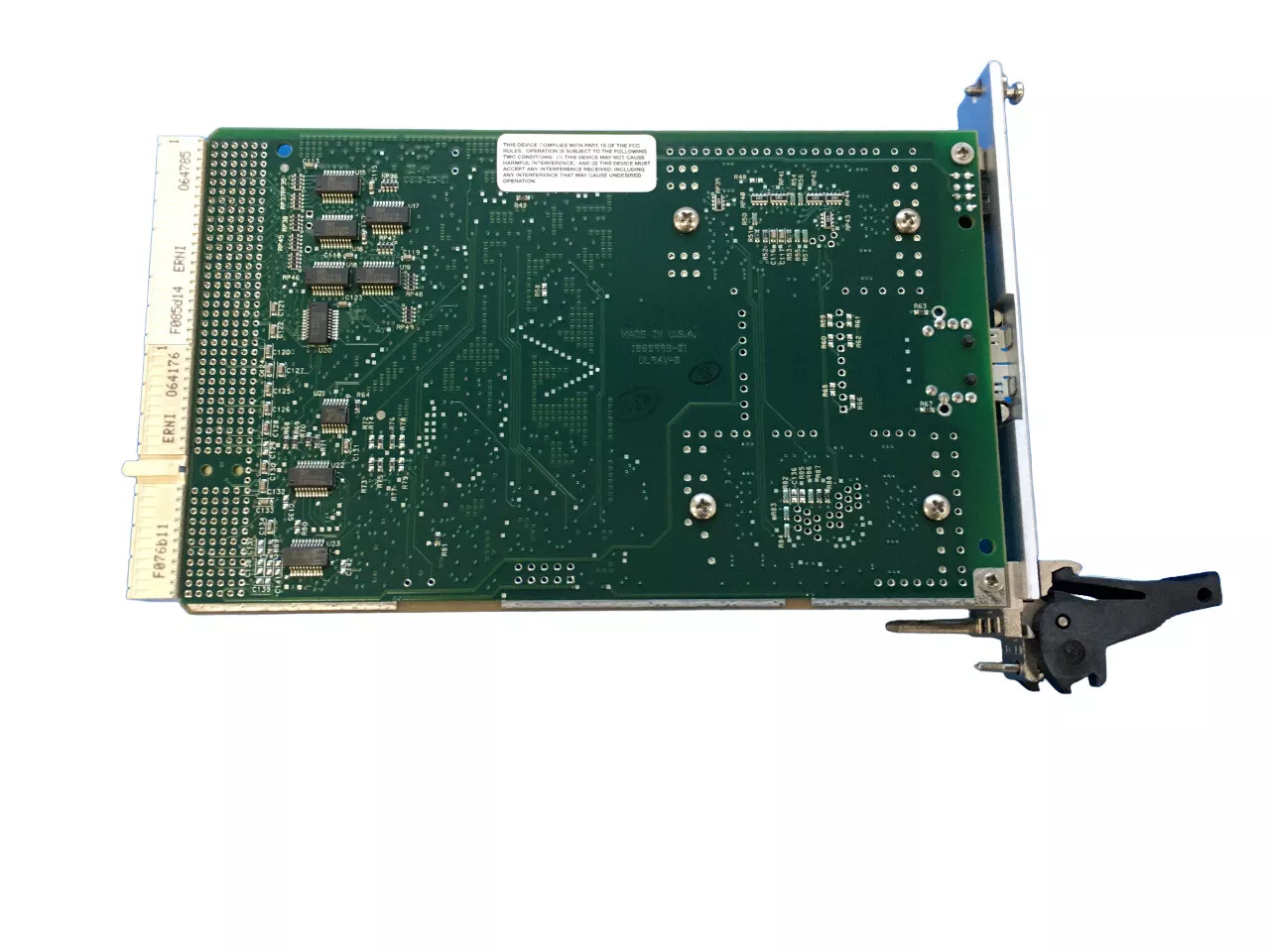

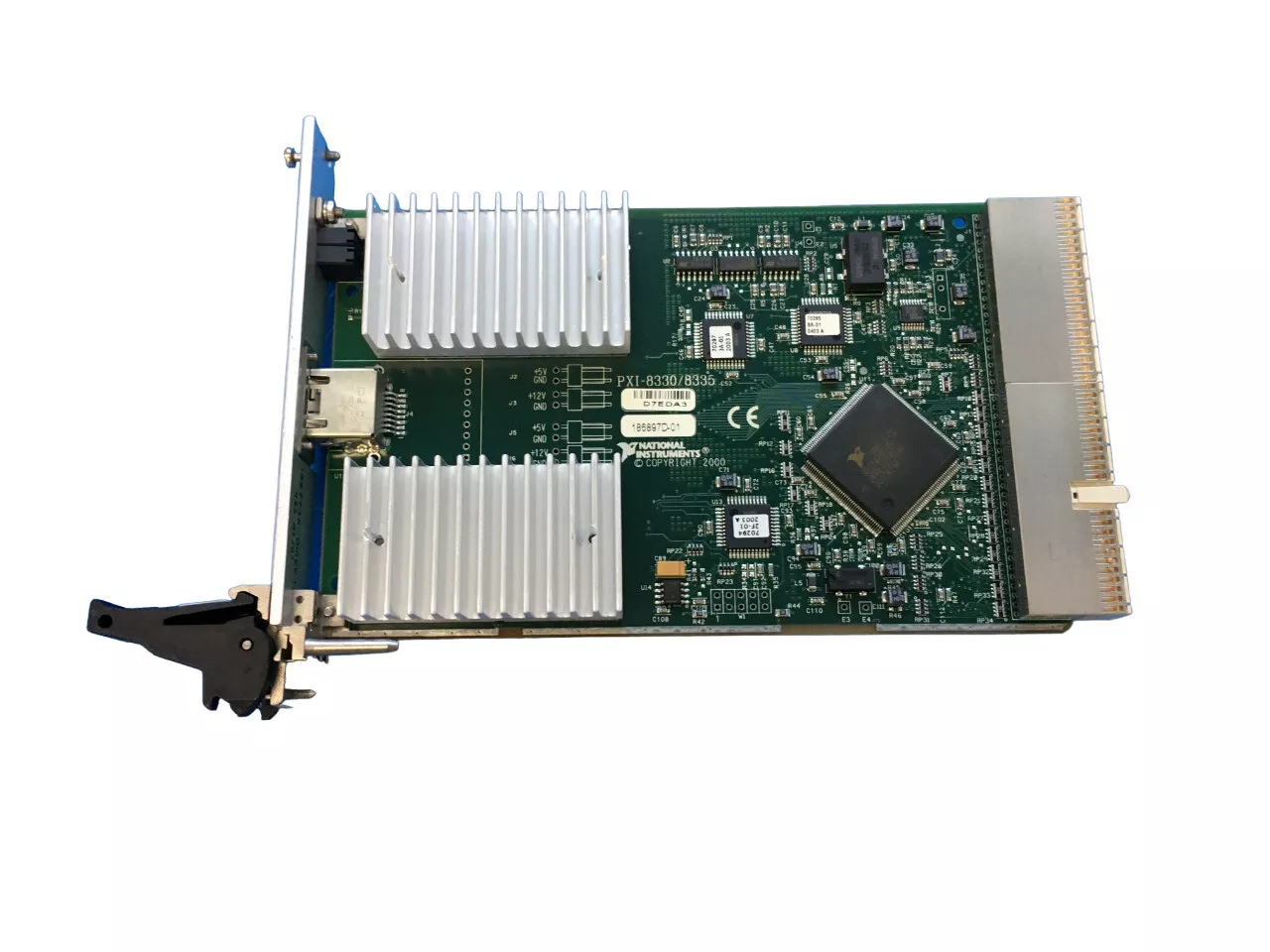

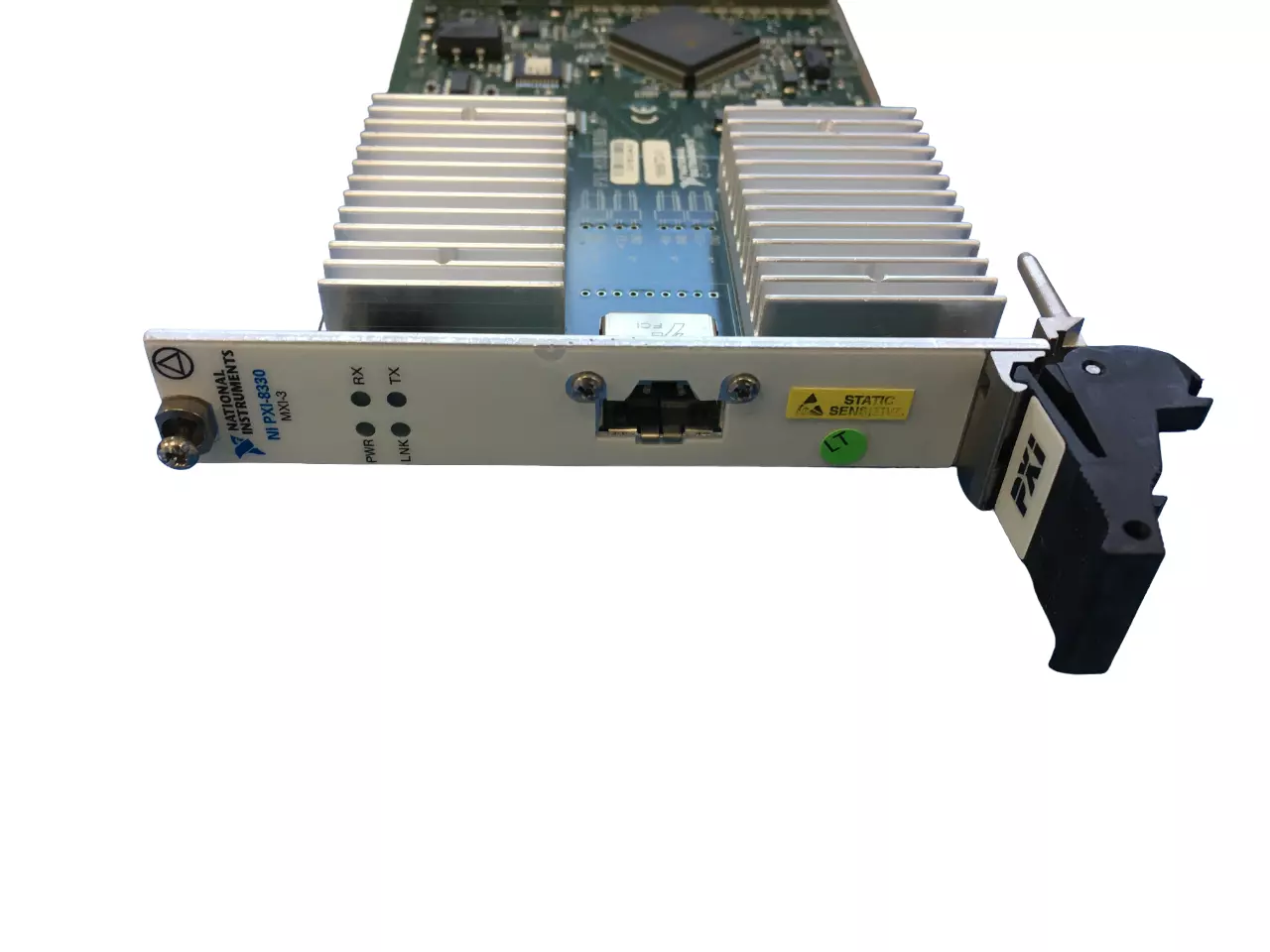

NI PXI-8330产品详细说明
产品概述
NI PXI-8330是美国国家仪器（NI）推出的高性能工业接口模块，基于PXI总线架构设计，专为复杂工控系统提供高速数据传输与多协议兼容性支持。其集成MXI-3（Multi-Protocol eXpansion Interface）接口，可扩展外部设备或子系统，适用于分布式测试、实时数据交互及跨平台通信场景。
核心参数与功能
接口与协议支持
-主接口：PXI总线（兼容PXI Express chassis）；
-扩展接口：MXI-3（支持光纤/铜缆连接，传输速率可达5 Gb/s）；
-协议兼容性：
-PXI星触发（Star Trigger）同步机制；
-支持IEEE 1588精确时间协议（PTP）；
-兼容传统VXI仪器扩展需求。
性能指标
-带宽：
-PXI背板共享带宽（具体速率依赖chassis配置）；
-MXI-3独立通道带宽：理论峰值2.5 Gb/s（实测受线缆长度影响）；
-延迟：
-硬件级触发响应延迟<1µs（典型值）。
系统集成能力
-设备扩展：
-最多支持8个MXI-3从节点（级联配置）；
-兼容NI PXIe-6363等DAQ模块构建混合系统；
-实时性：
-结合NI Linux实时控制器（如NI 9002）实现确定性通信。
技术特点
高可靠性设计：
-工业级温控芯片组（工作温度-40°C至85°C）；
-光纤接口抗电磁干扰（适用于高噪声环境）。
灵活部署：
-模块化固件架构（支持FPGA逻辑自定义）；
-通过LabVIEW FPGA模块实现协议定制。
典型应用场景
分布式测试系统：
-多站点同步测试（如风电场远程监控）；
-跨机柜设备互联（如半导体制造产线）。
混合总线整合：
-PXI与传统VXI仪器共存系统（通过协议转换）；
-结合EtherCAT主站实现运动控制与数据采集融合。
NI PXI-8330 Product Detailed Description
Product Overview
NI PXI-8330 is a high-performance industrial interface module launched by National Instruments(NI).It is designed based on the PXI bus architecture and is specially designed for complex industrial control systems to provide high-speed data transmission and multi-protocol compatibility support.It integrates MXI-3(Multi-Protocol eXpansion Interface)interface,which can expand external devices or subsystems,and is suitable for distributed testing,real-time data interaction and cross-platform communication scenarios.
Core parameters and functions
Interface and protocol support
-Main interface:PXI bus(compatible with PXI Express chassis);
-Extended interface:MXI-3(supports fiber/copper cable connection,transmission rate up to 5 Gb/s);
-Protocol Compatibility:
-PXI star trigger synchronization mechanism;
-Supports IEEE 1588 Precision Time Protocol(PTP);
-Compatible with traditional VXI instrument expansion requirements.
Performance metrics
-Bandwidth:
-PXI backplane shared bandwidth(specific rate depends on chassis configuration);
-MXI-3 independent channel bandwidth:theoretical peak 2.5 Gb/s(actual measurement is affected by cable length);
-Delay:
-Hardware-level trigger response delay<1µs(typical).
System integration capability
-Device extension:
-Support up to 8 MXI-3 slave nodes(cascaded configuration);
-Compatible with NI PXIe-6363 and other DAQ modules to build hybrid systems;
-Real-time:
-Consisting of NI Linux real-time controllers(such as NI 9002)to achieve deterministic communication.
Technical Features
High reliability design:
-Industrial-grade temperature control chipset(operating temperature-40°C to 85°C);
-Fiber optic interface anti-electromagnetic interference(suitable for high noise environments).
Flexible deployment:
-Modular firmware architecture(supports FPGA logic customization);
-Implement protocol customization through the LabVIEW FPGA module.
Typical application scenarios
Distributed testing system:
-Multi-site synchronous testing(such as remote monitoring of wind farms);
-Interconnection of cross-cabinet equipment(such as semiconductor manufacturing production lines).
Hybrid bus integration:
-PXI and traditional VXI instrument coexistence system(transformed through protocol);
-Combined with the EtherCAT master station to realize the integration of motion control and data acquisition.
