描述

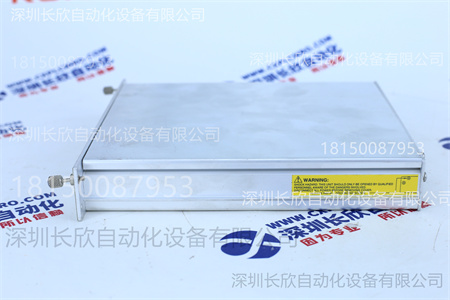

NI SCXI-1162HV是美国国家仪器（NI）推出的32通道隔离数字输入模块。以下是其产品详情：
通道配置：具有32个光隔离数字输入通道，分为8组，每组4条输入线。
电气特性：可感应广泛的交流或直流信号，能处理从数字逻辑电平信号到最高240V AC/DC的信号。每组具有300V rms、II类工作隔离，具备2300V rms瞬态过电压保护功能。输入电流限制为1mA。
通信与控制：有两种操作模式，多路复用模式下，一个数据采集（DAQ）仪器可通过SCXI总线利用串行数据协议从一个或多个SCXI模块的信息寄存器读取32位数字模式；并行模式下，可直接将每个模块连接到数字I/O DAQ设备。

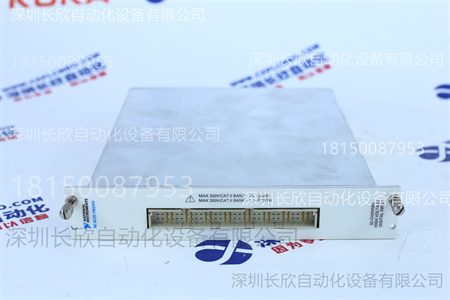

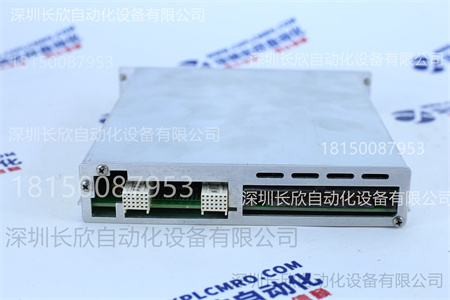

接口类型：配备50针公带状电缆后连接器和48针DIN C型公前连接器。
机械参数：尺寸约为3.8cm×20.3cm×20.3cm，重量约0.6kg。
适用场景：可用于检测电源电路、接近开关、按钮开关、恒温器和继电器的通断状态等，适用于工业自动化和控制系统、实验室测试、生产测试等场景。
兼容性：推荐使用SCXI-1600（USB）控制该模块，也与M系列兼容。
软件支持：支持NI-DAQ驱动软件以及LabVIEW、LabWindows/CVI等应用软件。
The NI SCXI-1162HV is a 32-channel isolated digital input module from National Instruments(NI).Product details are as follows:
Channel Configuration:It features 32 optically isolated digital input channels,organized into 8 groups of 4 input lines each.
Electrical Characteristics:It can sense a wide range of AC or DC signals,processing signals from digital logic levels up to 240V AC/DC.Each group provides 300V rms,Class II operational isolation and 2300V rms transient overvoltage protection.Input current is limited to 1mA.
Communication and Control:It has two operating modes:Multiplexed mode allows a data acquisition(DAQ)instrument to read 32-bit digital patterns from the information registers of one or more SCXI modules using a serial data protocol over the SCXI bus.Parallel mode allows each module to be directly connected to a digital I/O DAQ device.Interface Type:Equipped with a 50-pin male ribbon cable rear connector and a 48-pin DIN C-type male front connector.
Mechanical Parameters:Dimensions:Approximately 3.8cm×20.3cm×20.3cm,weight:Approximately 0.6kg.
Applications:Can be used to detect the on/off status of power circuits,proximity switches,pushbutton switches,thermostats,and relays.Suitable for industrial automation and control systems,laboratory testing,and production testing.
Compatibility:The SCXI-1600(USB)is recommended for controlling this module,and it is also compatible with the M Series.
Software Support:Supports NI-DAQ driver software and application software such as LabVIEW and LabWindows/CVI.
