产品概述

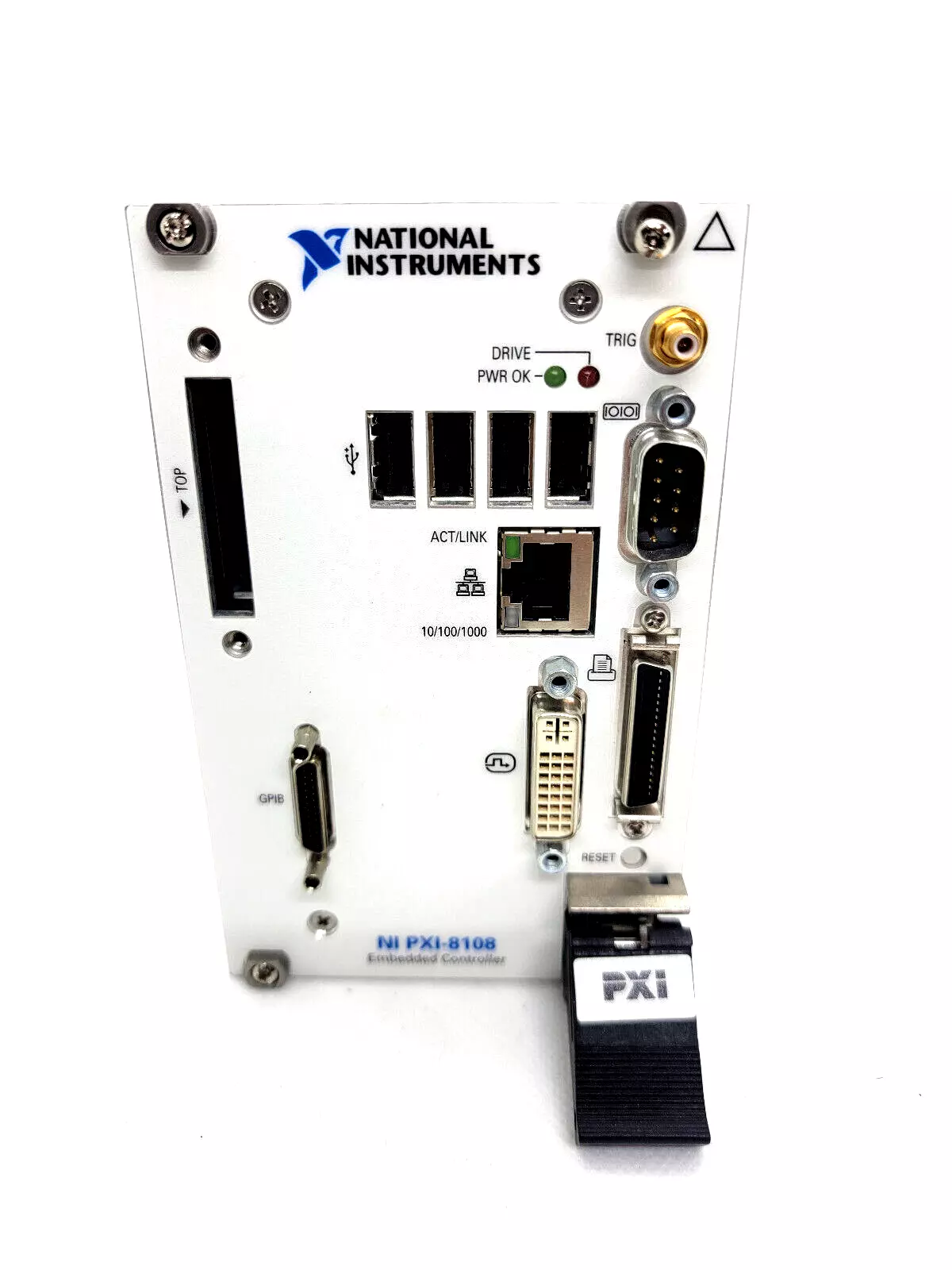

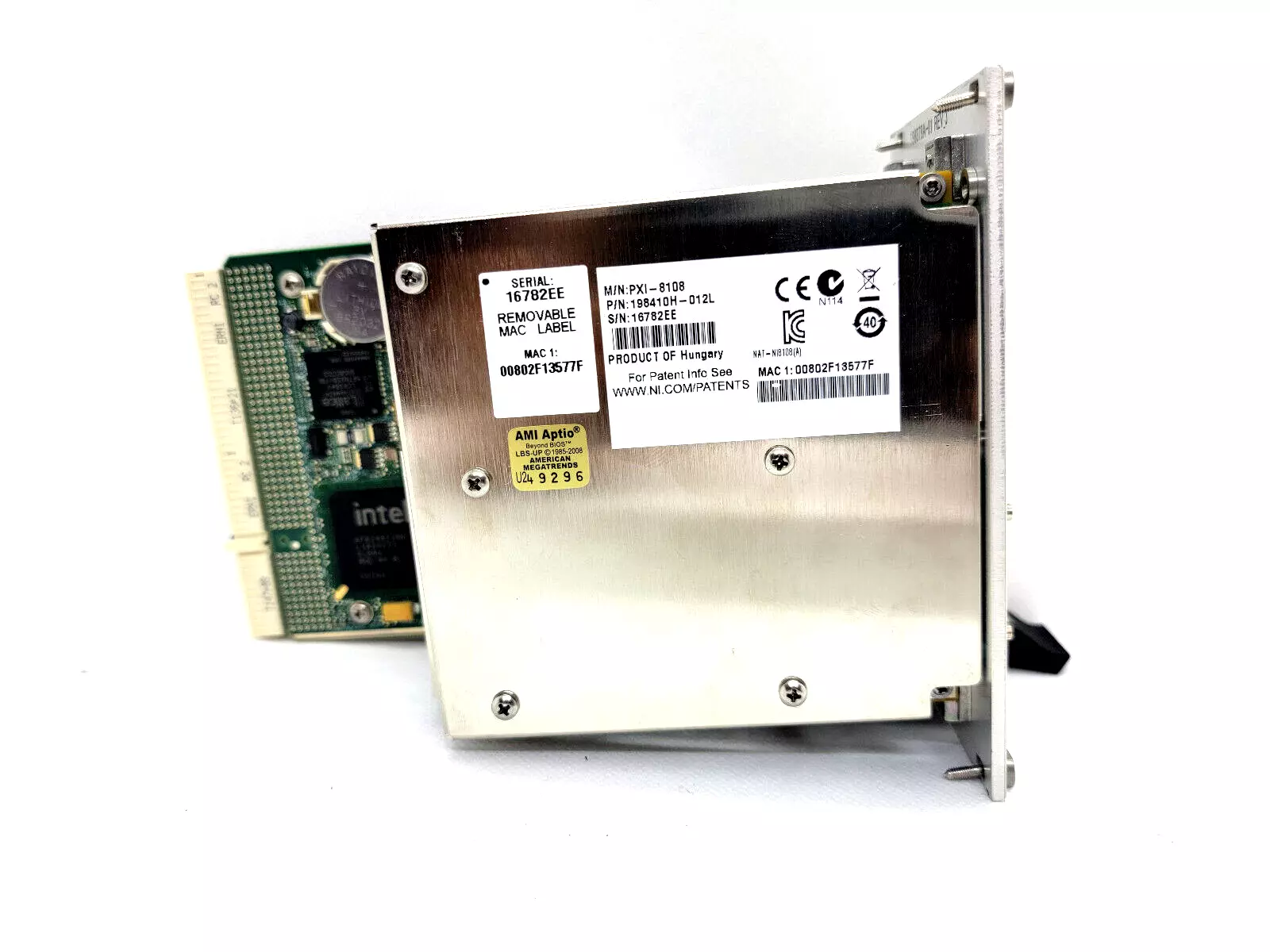

NI PXI-8108是一款基于Intel Core 2 Duo处理器的嵌入式控制器，专为PXI系统设计。它将高性能计算能力与PXI模块化仪器的灵活性相结合，适用于各种自动化测试、测量和数据采集应用。用户可以直接将其插入PXI机箱中，构建一个完整的测试和测量系统，无需额外的计算机设备。
主要特性
强大的处理能力
配备Intel Core 2 Duo T9400处理器，主频高达2.53 GHz，能够快速处理复杂的测试和测量任务，提高系统的整体性能和响应速度。
支持双核技术，可实现多任务并行处理，有效提升数据处理效率，尤其适用于需要同时运行多个测试程序或处理大量数据的场景。
丰富的内存和存储选项
提供多种内存配置选项，最高可支持4 GB DDR2 RAM，满足大型测试程序和复杂数据处理的需求，确保系统运行流畅，减少因内存不足导致的性能瓶颈。
配备大容量硬盘，支持快速的数据存储和读取，方便用户保存测试结果、日志文件和其他重要数据。部分型号还支持固态硬盘（SSD），进一步提高了数据读写速度和系统的可靠性。
多种接口和扩展性
具备丰富的接口，包括Gigabit Ethernet、USB 2.0、RS-232等，方便与外部设备进行连接和数据传输。Gigabit Ethernet接口可实现高速网络通信，便于远程控制和数据共享；USB 2.0接口支持连接各种外设，如键盘、鼠标、打印机等；RS-232接口可用于与传统的串口设备进行通信。
支持PXI模块化扩展，用户可以根据具体应用需求，在PXI机箱中插入各种功能模块，如数据采集卡、信号发生器、数字万用表等，构建一个高度定制化的测试和测量系统。
可靠性和稳定性
采用工业级设计，具备较高的可靠性和稳定性，能够在恶劣的环境条件下长时间稳定运行。其坚固的外壳和散热设计，有效保护内部组件免受灰尘、震动和温度变化的影响。
经过严格的质量检测和认证，符合相关的工业标准和规范，确保产品的质量和性能符合要求。
应用领域
自动化测试
在汽车电子、航空航天、电子制造等行业，用于对各种产品和系统进行自动化测试，如电路板测试、功能测试、性能测试等。其强大的处理能力和丰富的接口，能够满足复杂测试系统的需求，提高测试效率和准确性。
数据采集与分析
适用于科研、教育、医疗等领域的数据采集和分析应用。可以连接各种传感器和信号调理模块，实时采集物理量数据，并通过内置的软件进行分析和处理，为用户提供有价值的决策依据。
工业控制
在工业自动化生产线上，作为控制核心，实现对生产设备的监控和控制。通过与PLC、传感器等设备的连接，实时获取生产数据，并根据预设的逻辑进行控制操作，提高生产效率和产品质量。
技术规格
项目详情
处理器Intel Core 2 Duo T9400，2.53 GHz
内存最高4 GB DDR2 RAM
硬盘支持SATA硬盘或固态硬盘（SSD），容量根据型号而定
操作系统支持Windows XP、Windows Vista、Windows 7、Linux等
接口1个Gigabit Ethernet接口、4个USB 2.0接口、1个RS-232接口、1个并行接口、1个PS/2键盘和鼠标接口
尺寸符合PXI标准尺寸，可插入标准的PXI机箱中
工作温度0°C至55°C（具体取决于机箱的散热设计）
Product Overview
NI PXI-8108 is an embedded controller based on Intel Core 2 Duo processor,designed for PXI systems.It combines high-performance computing power with the flexibility of PXI modular instruments for a variety of automated test,measurement,and data acquisition applications.Users can plug it directly into the PXI chassis to build a complete test and measurement system without the need for additional computer equipment.
Main Features
Powerful processing power
Equipped with Intel Core 2 Duo T9400 processor,the main frequency is up to 2.53 GHz,which can quickly handle complex test and measurement tasks and improve the overall performance and response speed of the system.
Supporting dual-core technology,it can realize multi-task parallel processing and effectively improve data processing efficiency,especially for scenarios that need to run multiple test programs at the same time or process large amounts of data.
Abundant memory and storage options
Provide a variety of memory configuration options,up to 4 GB DDR2 RAM,to meet the needs of large test programs and complex data processing,ensure smooth system operation,and reduce performance bottlenecks caused by insufficient memory.
Equipped with a large-capacity hard disk,it supports fast data storage and reading,making it convenient for users to save test results,log files and other important data.Some models also support solid-state drives(SSDs),which further improves data read and write speeds and system reliability.
Multiple interfaces and expandability
It has a variety of interfaces,including Gigabit Ethernet,USB 2.0,RS-232,etc.,which facilitate connection with external devices and data transmission.The Gigabit Ethernet interface enables high-speed network communication,which is convenient for remote control and data sharing;the USB 2.0 interface supports the connection of various peripherals,such as keyboards,mice,printers,etc.;the RS-232 interface can be used to communicate with traditional serial port devices.
Supports PXI modular expansion.Users can insert various functional modules such as data acquisition cards,signal generators,digital multimeters,etc.into the PXI chassis according to specific application requirements to build a highly customized test and measurement system.
Reliability and stability
It adopts industrial-grade design,has high reliability and stability,and can operate stably for a long time under harsh environmental conditions.Its sturdy shell and heat dissipation design effectively protect internal components from dust,vibration and temperature changes.
After strict quality inspection and certification,it complies with relevant industrial standards and specifications to ensure that the quality and performance of the product meet the requirements.
Application field
Automated testing
In the automotive electronics,aerospace,electronic manufacturing and other industries,it is used to perform automated testing of various products and systems,such as circuit board testing,functional testing,performance testing,etc.Its powerful processing capabilities and rich interfaces can meet the needs of complex test systems and improve test efficiency and accuracy.
Data acquisition and analysis
Suitable for data acquisition and analysis applications in scientific research,education,medical and other fields.It can connect various sensors and signal conditioning modules to collect physical quantity data in real time,and analyze and process it through built-in software to provide users with valuable decision-making basis.
Industrial control
On the industrial automation production line,as the control core,it realizes the monitoring and control of production equipment.Through the connection with PLC,sensors and other equipment,it can obtain production data in real time,and perform control operations according to the preset logic to improve production efficiency and product quality.
Technical Specifications
Item Details
Processor Intel Core 2 Duo T9400,2.53 GHz
Memory Up to 4 GB DDR2 RAM
Hard Drive Supports SATA hard drive or solid state drive(SSD),capacity depends on the model
Operating System Supports Windows XP,Windows Vista,Windows 7,Linux,etc.
Interfaces 1 Gigabit Ethernet interface,4 USB 2.0 interfaces,1 RS-232 interface,1 parallel interface,1 PS/2 keyboard and mouse interface
Dimensions Conforms to PXI standard dimensions and can be inserted into a standard PXI chassis
Operating Temperature 0°C to 55°C(depending on the chassis’s heat dissipation design)
