描述
产品概述

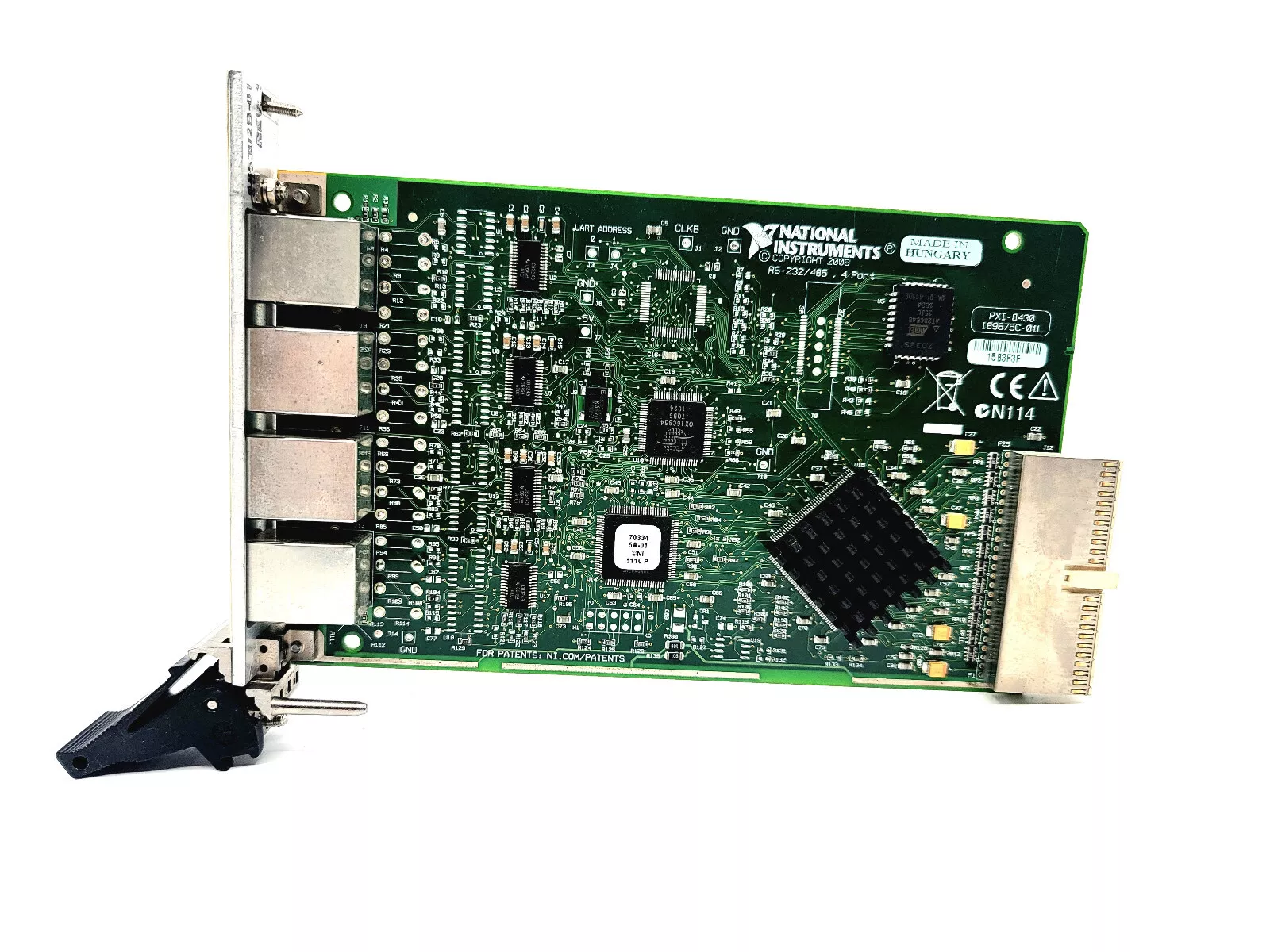

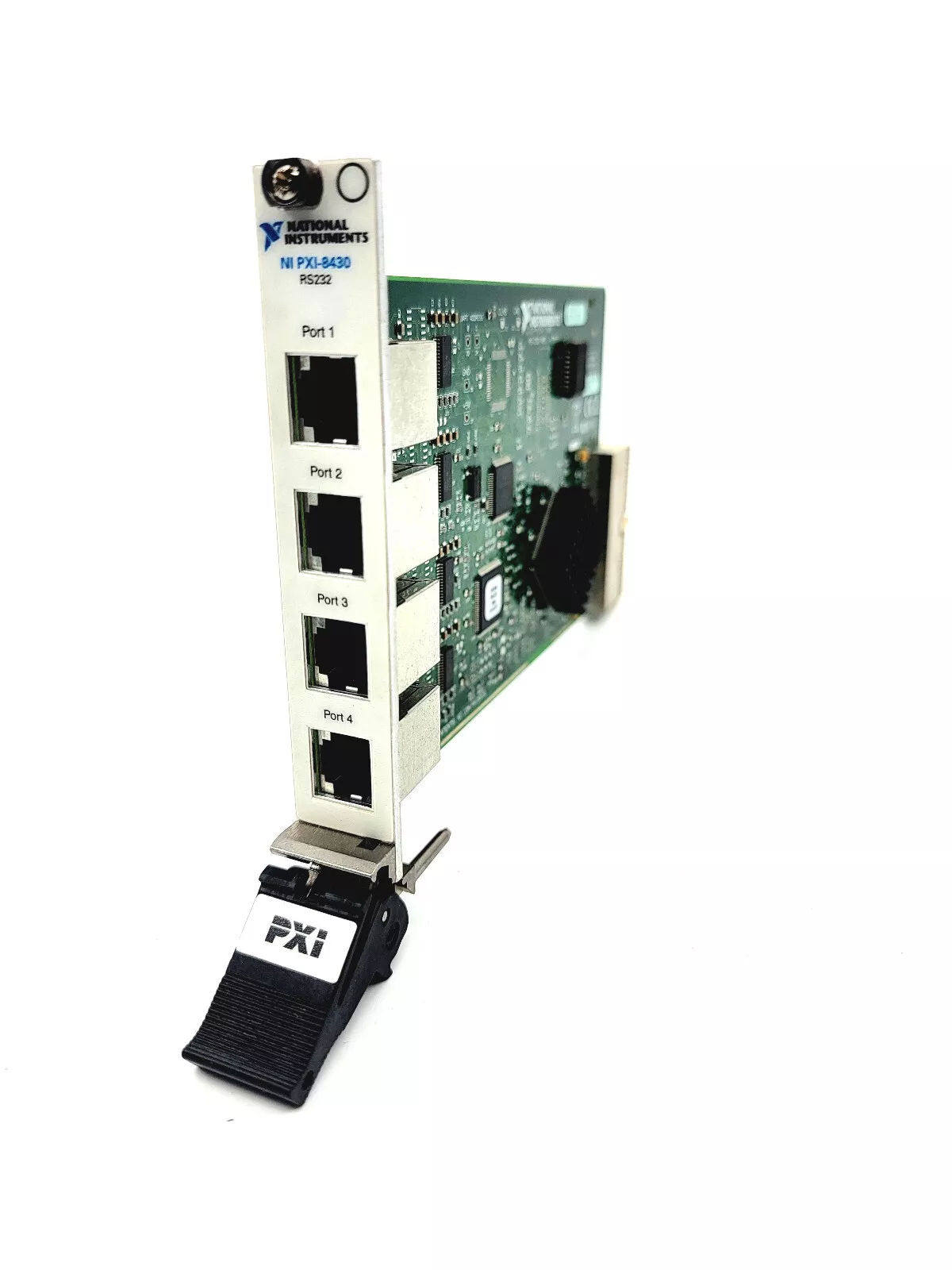

NI PXI-8430属于PXI嵌入式控制器系列的串行通信扩展模块，它为PXI系统提供了可靠的串行通信能力。该模块设计紧凑，可直接插入PXI机箱，与PXI控制器及其他功能模块协同工作，无需额外的外部转换设备，方便用户构建集成化的测试、测量和自动化控制系统，实现与各种串行设备的稳定数据传输。
主要特性
多种串行通信协议支持
RS-232协议：支持标准的RS-232串行通信，这是一种广泛应用的异步串行通信协议，适用于短距离、低速的数据传输场景。用户可以通过RS-232接口连接各种传统的串行设备，如调制解调器、打印机、数据采集终端等。
RS-422协议：具备RS-422通信能力，该协议采用差分信号传输方式，具有更强的抗干扰能力和更长的传输距离，能够在高速数据传输时保持信号的稳定性。适用于工业自动化控制、远程监控等对通信可靠性要求较高的场合。
RS-485协议：支持RS-485协议，这是一种多点的、双向的串行通信标准，常用于构建分布式控制系统。RS-485接口可以连接多个设备，实现设备之间的互联互通和集中控制，广泛应用于楼宇自动化、智能电网等领域。
高速数据传输
NI PXI-8430提供了较高的数据传输速率，能够满足不同应用场景下对数据传输速度的要求。在不同的串行通信协议下，它可以根据实际需求调整传输速率，确保数据的高效传输。例如，在RS-232协议下，最高传输速率可达115.2 kbps；在RS-422/485协议下，传输速率可更高，具体取决于硬件配置和通信环境。
灵活的端口配置
模块具有多个独立的串行端口，用户可以根据实际需求灵活配置每个端口的通信协议、波特率、数据位、停止位和校验位等参数。这种灵活性使得NI PXI-8430能够适应各种不同的串行设备和通信场景，方便用户进行系统集成和调试。
可靠性与稳定性
采用工业级设计，具备良好的抗干扰能力和稳定性。其电路设计经过优化，能够有效抑制电磁干扰和噪声，确保在恶劣的工业环境中也能稳定可靠地工作。同时，模块还具备过流、过压保护等功能，进一步提高了系统的安全性和可靠性。
应用领域
工业自动化
在工业自动化生产线上，NI PXI-8430可用于连接各种工业设备，如可编程逻辑控制器（PLC）、传感器、执行器等。通过串行通信接口，实现设备之间的数据交换和控制指令传输，实现对生产过程的自动化监控和控制。例如，在汽车制造工厂中，可以使用该模块将生产线上的各个设备连接起来，实现生产数据的实时采集和设备状态的远程监控。
数据采集与监测
适用于环境监测、能源管理等领域的数据采集系统。可以连接各种数据采集终端和传感器，通过串行通信将采集到的数据传输到PXI系统中进行分析和处理。例如，在气象监测站中，NI PXI-8430可以连接风速、风向、温度、湿度等传感器，实时采集气象数据，并将数据传输到监控中心进行存储和分析。
通信测试
在通信行业，可用于对串行通信设备进行测试和验证。例如，对调制解调器、路由器等设备的串行通信接口进行功能测试、性能测试和协议一致性测试。通过模拟不同的通信场景和数据传输条件，检测设备的通信性能和稳定性，确保设备符合相关的通信标准。
技术规格
项目详情
通信协议RS-232、RS-422、RS-485
端口数量多个独立端口（具体数量根据型号而定）
最大传输速率RS-232：最高115.2 kbps；RS-422/485：根据硬件配置和通信环境可达更高
数据位5、6、7、8位可选
停止位1、1.5、2位可选
校验位无校验、奇校验、偶校验、标记校验、空格校验可选
工作温度0°C至55°C（具体取决于机箱的散热设计）
尺寸符合PXI标准尺寸，可插入标准PXI机箱
Product Overview
NI PXI-8430 is a serial communication expansion module for the PXI embedded controller series.It provides reliable serial communication capabilities for PXI systems.The module is compact and can be directly inserted into the PXI chassis.It works with the PXI controller and other functional modules without the need for additional external conversion devices,making it easy for users to build integrated test,measurement,and automation control systems and achieve stable data transmission with various serial devices.
Main Features
Support for multiple serial communication protocols
RS-232 protocol:supports standard RS-232 serial communication,which is a widely used asynchronous serial communication protocol suitable for short-distance,low-speed data transmission scenarios.Users can connect various traditional serial devices such as modems,printers,data acquisition terminals,etc.through the RS-232 interface.
RS-422 protocol:has RS-422 communication capabilities.This protocol uses differential signal transmission,has stronger anti-interference ability and longer transmission distance,and can maintain signal stability during high-speed data transmission.It is suitable for industrial automation control,remote monitoring and other occasions with high communication reliability requirements.
RS-485 protocol:Supports RS-485 protocol,which is a multi-point,bidirectional serial communication standard commonly used to build distributed control systems.The RS-485 interface can connect multiple devices to achieve interconnection and centralized control between devices,and is widely used in building automation,smart grid and other fields.
High-speed data transmission
NI PXI-8430 provides a high data transmission rate,which can meet the requirements of data transmission speed in different application scenarios.Under different serial communication protocols,it can adjust the transmission rate according to actual needs to ensure efficient data transmission.For example,under the RS-232 protocol,the maximum transmission rate can reach 115.2 kbps;under the RS-422/485 protocol,the transmission rate can be higher,depending on the hardware configuration and communication environment.
Flexible port configuration
The module has multiple independent serial ports,and users can flexibly configure the communication protocol,baud rate,data bit,stop bit,and parity bit parameters of each port according to actual needs.This flexibility enables the NI PXI-8430 to adapt to a variety of different serial devices and communication scenarios,facilitating users to carry out system integration and debugging.
Reliability and stability
The industrial-grade design is adopted,with good anti-interference ability and stability.Its circuit design has been optimized to effectively suppress electromagnetic interference and noise,ensuring stable and reliable operation in harsh industrial environments.At the same time,the module also has functions such as overcurrent and overvoltage protection,which further improves the safety and reliability of the system.
Application field
Industrial automation
In industrial automation production lines,NI PXI-8430 can be used to connect various industrial equipment,such as programmable logic controllers(PLCs),sensors,actuators,etc.Through the serial communication interface,data exchange and control instruction transmission between devices are realized,and automatic monitoring and control of the production process are realized.For example,in an automobile manufacturing plant,the module can be used to connect various devices on the production line to realize real-time collection of production data and remote monitoring of equipment status.
Data acquisition and monitoring
It is suitable for data acquisition systems in the fields of environmental monitoring,energy management,etc.It can connect various data acquisition terminals and sensors,and transmit the collected data to the PXI system for analysis and processing through serial communication.For example,in a weather monitoring station,the NI PXI-8430 can connect sensors such as wind speed,wind direction,temperature,and humidity to collect weather data in real time and transmit the data to the monitoring center for storage and analysis.
Communication Testing
In the communications industry,it can be used to test and verify serial communication equipment.For example,the serial communication interface of devices such as modems and routers can be functionally tested,performance tested,and protocol consistency tested.By simulating different communication scenarios and data transmission conditions,the communication performance and stability of the equipment can be tested to ensure that the equipment meets the relevant communication standards.
Technical Specifications
Item Details
Communication Protocol RS-232,RS-422,RS-485
Number of Ports Multiple independent ports(specific number depends on the model)
Maximum transmission rate RS-232:up to 115.2 kbps;RS-422/485:higher according to hardware configuration and communication environment
Data bits 5,6,7,8 bits optional
Stop bits 1,1.5,2 bits optional
Parity bits None,odd,even,mark,space optional
Operating temperature 0°C to 55°C(depending on the chassis’s heat dissipation design)
Dimensions Conform to PXI standard dimensions and can be inserted into standard PXI chassis
