欧姆龙(Omron)3G8F5-CLK21产品详情

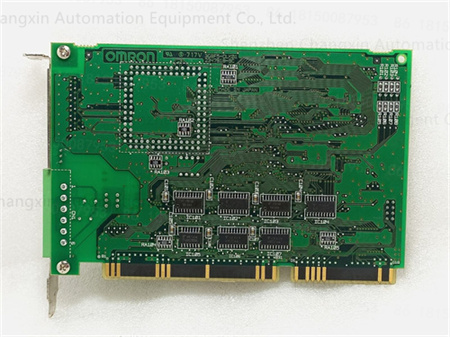

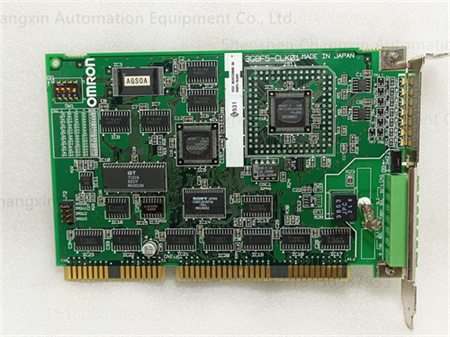

欧姆龙3G8F5-CLK21是一款用于欧姆龙Controller Link系统的光纤接口板卡。它不是一个独立的设备，而是作为欧姆龙PLC(可编程逻辑控制器)的扩展模块，用于实现基于光纤的高速网络通信。
这个模块的核心作用是在工业自动化网络中提供一种高速、抗干扰的通信方式。
主要特性与规格
类型:Controller Link光纤接口板卡。
制造商:欧姆龙(Omron)。
型号:3G8F5-CLK21。
功能:
光纤通信:核心功能是使用光纤电缆进行数据传输，这使得它能够实现更远的传输距离，并对电磁干扰(EMI)具有极强的抵抗力。
通信距离:模块支持不同的传输速率和距离。例如，在2 Mbps的高速率下，最大传输距离可达500 m，而在500 kbps的速率下，最大距离可达1 km。如果使用中继器，通信距离还可以进一步延长至20 km。
Controller Link协议:兼容欧姆龙的Controller Link网络协议，这是一个用于PLC、PC和其他自动化设备之间的高速数据链路。
PLC集成:模块通常安装在欧姆龙PLC的专用插槽中，如CS1W系列。
物理特性:
光纤接口:具备用于连接光纤电缆的接口，通常是ST或SC类型。
安装:板卡式设计，易于安装和更换。
应用领域
作为欧姆龙PLC系统中的关键通信模块，3G8F5-CLK21被广泛应用于各种需要高速、稳定和长距离通信的工业场景：
大型自动化系统:在大型工厂、生产线或建筑自动化系统中，连接分散的控制系统。
多PLC协同控制:使得多个PLC能够通过Controller Link网络进行数据共享和协调控制。
抗干扰环境:在存在大量电磁噪声（如焊接、大功率电机驱动）的工业环境中，光纤通信能够确保数据传输的完整性。
Omron 3G8F5-CLK21 Product Details
The Omron 3G8F5-CLK21 is a fiber optic interface board for Omron’s Controller Link system.It is not a standalone device,but rather an expansion module for Omron PLCs(Programmable Logic Controllers),enabling high-speed fiber-based network communication.
This module’s core function is to provide high-speed,interference-resistant communication within industrial automation networks.
Key Features and Specifications
Type:Controller Link Fiber Optic Interface Board.
Manufacturer:Omron.
Model:3G8F5-CLK21.
Function:
Fiber optic communication:The core function is to use fiber optic cables for data transmission,enabling longer transmission distances and high immunity to electromagnetic interference(EMI).
Communication distance:The module supports various transmission rates and distances.For example,at a high data rate of 2 Mbps,the maximum transmission distance reaches 500 meters,while at 500 kbps,the maximum distance is 1 km.Using a repeater,the communication distance can be further extended to 20 km.
Controller Link Protocol:Compatible with OMRON’s Controller Link network protocol,a high-speed data link between PLCs,PCs,and other automation devices.
PLC Integration:The module typically installs in a dedicated slot in OMRON PLCs,such as the CS1W series.
Physical Characteristics:
Fiber Optic Interface:Features an interface for connecting fiber optic cables,typically ST or SC type.
Installation:A card-based design makes installation and replacement easy.
Applications:As a key communication module in OMRON PLC systems,the 3G8F5-CLK21 is widely used in various industrial scenarios requiring high-speed,stable,and long-distance communication:
Large Automation Systems:Connecting distributed control systems in large factories,production lines,or building automation systems.
Multi-PLC Collaborative Control:Enables multiple PLCs to share data and coordinate control via a Controller Link network.
Interference-Resistant Environment:Fiber optic communication ensures data transmission integrity in industrial environments subject to significant electromagnetic noise,such as welding and high-power motor drives.
