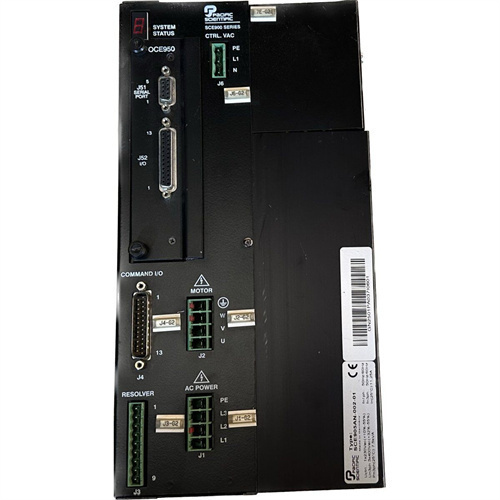

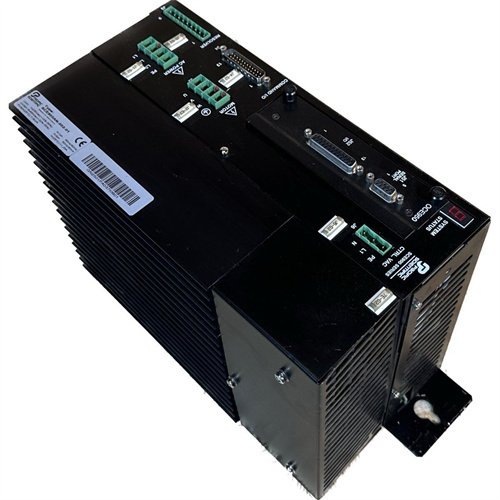

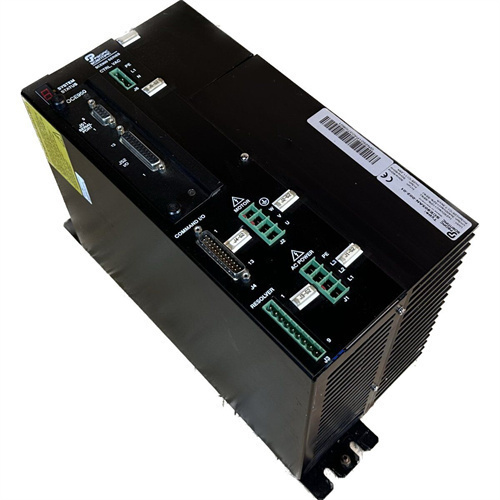

Pacific Scientific SCE905AN-002-01产品详情
Pacific Scientific SCE905AN-002-01是一款高性能数字伺服驱动器，专为需要精确运动控制的应用而设计，以下为其详细产品信息：
核心功能
高性能数字控制：
SCE905AN-002-01提供精确的位置、速度和力控制，适用于需要高精度运动控制的应用场景，如工业自动化、机床、印刷机械、医疗设备等。
驱动器采用先进的数字信号处理技术，能够实现高精度的电机位置、速度和力矩控制，确保运动轨迹的准确性和稳定性。
高级控制功能：
具备完全基于数字DSP的控制，包含电流环路和数字自动调节功能，便于轻松且可预测的设置。
采用先进的签名系列正弦电流控制功能，支持低轴扭矩脉动以及各种速度下的均匀控制动态，确保电机在复杂工况下的稳定运行。
高分辨率位置反馈：
驱动器包含一个数字的分解器到数字的转换器，具有24位位置分辨率，提供精确的位置反馈和控制，满足精密加工和定位需求。
模块化结构与用户可拆卸选项卡：
模块化设计使得驱动器易于配置和安装，用户可拆卸选项卡扩展了伺服驱动器的功能，并允许用户将装置调整为不同的参数，满足多样化的应用需求。
技术参数
兼容性与电源：
电力电子设备与美国480 VAC线路以及欧洲400 VAC三相电源兼容，无需额外的电源转换设备，可在全球范围内使用。
支持双电源冗余输入，DC（9-36）V，典型DC24V，功耗小于4W，具有DC1500V电压隔离以及反接保护功能，确保电源供应的稳定性和安全性。
机械特性：
外形尺寸为132mm×105mm×52mm，外壳采用IP30防护等级的波浪纹铝制加强机壳，具有良好的防护性能。
支持35mm DIN导轨安装，净重800g，便于在有限空间内安装使用。
工作环境：
工作温度范围为-10℃至70℃（宽温可选-40℃至+85℃），相对湿度≤90%（无冷凝），存放温度为-40℃至80℃，适应恶劣的工业环境。
通信与接口：
具备多种通信接口，便于与其他控制系统、监控设备或上层控制系统进行数据交换和集成，实现远程监控和自动化控制。
应用场景
工业自动化：
广泛应用于生产线控制、机械制造、自动化设备等领域，实现精密运动控制，提高生产效率和产品质量。
机器人技术：
适用于工业机器人和协作机器人的关节驱动，实现高精度的位置和速度控制，满足机器人复杂运动的需求。
精密机械：
在半导体设备、精密加工设备等领域，提供高动态响应和精确控制，确保设备的稳定运行和加工精度。
Pacific Scientific SCE905AN-002-01 Product Details
Pacific Scientific SCE905AN-002-01 is a high-performance digital servo drive designed for applications that require precise motion control.The following is its detailed product information:
Core Functions
High-performance digital control:
SCE905AN-002-01 provides precise position,speed and force control for applications that require high-precision motion control,such as industrial automation,machine tools,printing machinery,medical equipment,etc.
The drive uses advanced digital signal processing technology to achieve high-precision motor position,speed and torque control to ensure the accuracy and stability of the motion trajectory.
Advanced control functions:
It has a fully digital DSP-based control,including current loop and digital auto-tuning functions,which facilitates easy and predictable settings.
Adopting advanced signature series sinusoidal current control function,it supports low shaft torque pulsation and uniform control dynamics at various speeds,ensuring stable operation of the motor under complex working conditions.
High-resolution position feedback:
The drive contains a digital resolver to digital converter with 24-bit position resolution,providing accurate position feedback and control to meet precision machining and positioning requirements.
Modular structure and user-removable option card:
The modular design makes the drive easy to configure and install.The user-removable option card expands the functionality of the servo drive and allows the user to adjust the device to different parameters to meet diverse application requirements.
Technical parameters
Compatibility and power supply:
The power electronics are compatible with the US 480 VAC line and the European 400 VAC three-phase power supply.No additional power conversion equipment is required and it can be used worldwide.
Supports dual power redundant input,DC(9-36)V,typical DC24V,power consumption is less than 4W,with DC1500V voltage isolation and reverse connection protection functions to ensure the stability and safety of the power supply.
Mechanical characteristics:
The overall dimensions are 132mm×105mm×52mm,and the housing adopts a corrugated aluminum reinforced housing with IP30 protection level,which has good protection performance.
Supports 35mm DIN rail installation,net weight 800g,easy to install and use in limited space.
Working environment:
The operating temperature range is-10℃to 70℃(wide temperature optional-40℃to+85℃),relative humidity≤90%(no condensation),storage temperature is-40℃to 80℃,adapting to harsh industrial environments.
Communication and interface:
It has a variety of communication interfaces,which is convenient for data exchange and integration with other control systems,monitoring equipment or upper control systems to achieve remote monitoring and automatic control.
Application scenarios
Industrial automation:
It is widely used in production line control,mechanical manufacturing,automation equipment and other fields to achieve precision motion control and improve production efficiency and product quality.
Robotics:
It is suitable for joint drive of industrial robots and collaborative robots to achieve high-precision position and speed control to meet the needs of complex robot movements.
Precision machinery:
In the fields of semiconductor equipment,precision processing equipment,etc.,it provides high dynamic response and precise control to ensure stable operation and processing accuracy of equipment.
