描述

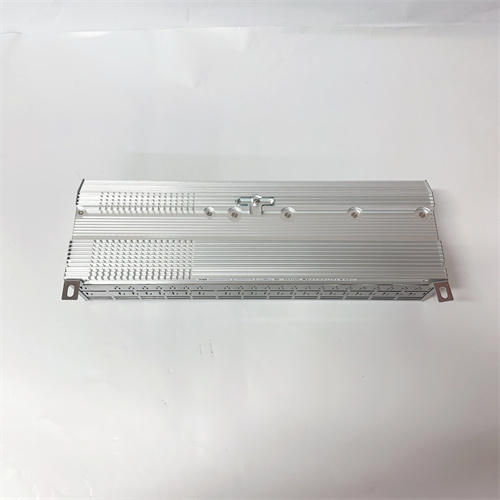

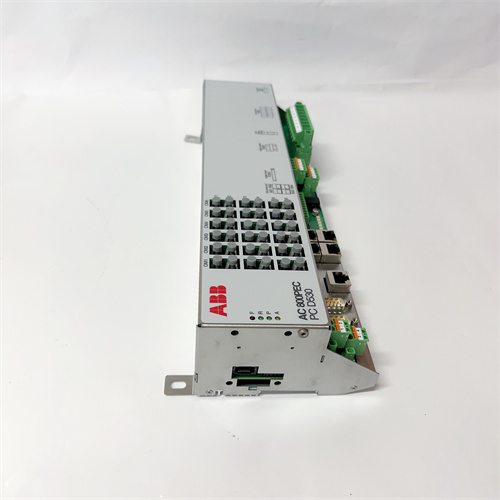

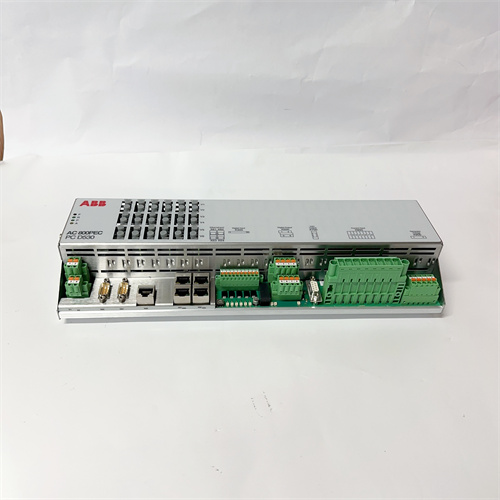

PCD530A102 3BHE041343R0102是ABB公司生产的一款高性能励磁控制模块，具备精确控制、宽范围调节、高可靠性和灵活集成等特点，适用于电力系统、工业自动化及新能源发电等领域。以下为具体详情：
核心功能
励磁控制核心
作为电机励磁系统的关键组件，模块通过精确调节励磁电流，动态调整电机磁场强度，确保发电机在负荷波动时维持稳定输出电压，满足电力系统对电压稳定性的严格要求。
适用于同步发电机、电动机调速等场景，通过优化励磁控制策略，提升发电效率和电能质量。
精确控制与调节
支持毫安级励磁电流调节精度，可适应不同电机型号对励磁特性的差异化需求。
内置宽范围调节算法，覆盖从微型发电机到大型工业电机的全功率段应用场景。
多维度保护机制
集成过流、过压、过热三重保护功能，当检测到励磁电流超过额定值120%时，模块自动触发保护逻辑，切断输出并生成故障代码。
采用冗余传感器设计，关键参数（如温度）通过双通道采样实现交叉验证，避免单点故障导致的误保护。
技术参数
电气特性
输入规格：支持24V DC冗余电源输入，单电源故障时自动切换至备用电源，切换时间≤2ms。
输出能力：提供24V DC驱动输出（最大电流2A）用于励磁绕组，10V DC监控输出（精度±0.5%）用于电流采样。
响应速度：从接收控制指令到输出调整的响应时间≤10ms，满足电力系统快速调压需求。
环境适应性
工作温度：-25℃至+70℃（扩展温度版支持-40℃至+85℃），相对湿度5%~95%（无冷凝）。
防护等级：IP30防护外壳，通过IEC 60068-2-6振动测试（10~500Hz，5g），适用于船舶、矿山等高振动环境。
通信与接口
通信协议：支持Modbus RTU/TCP、IEC 60870-5-103等工业协议，兼容主流DCS/SCADA系统。
扩展能力：提供2路CAN总线接口，支持菊花链拓扑，最多可扩展16个从站模块。
应用场景
电力系统稳定控制
在水电站、火电站中，模块通过实时调节发电机励磁，抑制功率振荡，提升电网暂态稳定性。
典型案例：某500kV变电站改造项目中，采用该模块后，系统电压波动范围从±3%缩小至±1.5%。
工业自动化集成
应用于冶金轧机、造纸机等设备的励磁控制，通过与PLC/HMI系统联动，实现工艺参数的闭环控制。
某钢铁厂热连轧机组中，模块与西门子S7-1500配合，将电机励磁响应时间缩短40%。
新能源发电适配
在风电/光伏储能系统中，模块通过调节储能逆变器的励磁，实现并网点电压的无功补偿。
某10MW风电场测试显示，模块使低电压穿越能力提升25%，满足GB/T 19963-2021标准。
产品优势
高可靠性设计
采用工业级元器件（如TDK电容、英飞凌IGBT），平均无故障时间（MTBF）超过15万小时。
模块化设计支持热插拔维护，单板故障时系统可降级运行，保障关键负载不停机。
灵活扩展与兼容性
支持与ABB AC800PEC、ABB Ability等系统无缝集成，通过统一工程平台实现参数配置。
提供MATLAB/Simulink模型库，用户可基于模型设计自定义控制算法。
PCD530A102 3BHE041343R0102 is a high-performance excitation control module produced by ABB.It has the characteristics of precise control,wide range adjustment,high reliability and flexible integration.It is suitable for power systems,industrial automation and new energy power generation.The following are the specific details:
Core function
Excitation control core
As a key component of the motor excitation system,the module accurately adjusts the excitation current and dynamically adjusts the motor magnetic field strength to ensure that the generator maintains a stable output voltage when the load fluctuates,meeting the strict requirements of the power system for voltage stability.
It is suitable for scenarios such as synchronous generators and motor speed regulation,and improves power generation efficiency and power quality by optimizing the excitation control strategy.
Precise control and regulation
Supports mA-level excitation current adjustment accuracy,which can adapt to the differentiated requirements of different motor models for excitation characteristics.
Built-in wide-range adjustment algorithm,covering the full power segment application scenarios from micro generators to large industrial motors.
Multi-dimensional protection mechanism
Integrated overcurrent,overvoltage,and overheating triple protection functions.When the excitation current is detected to exceed 120%of the rated value,the module automatically triggers the protection logic,cuts off the output and generates a fault code.
Redundant sensor design is adopted,and key parameters(such as temperature)are cross-validated through dual-channel sampling to avoid false protection caused by single-point failure.
Technical parameters
Electrical characteristics
Input specifications:Support 24V DC redundant power input,automatically switch to backup power when single power fails,and the switching time is≤2ms.
Output capacity:Provide 24V DC drive output(maximum current 2A)for excitation winding,10V DC monitoring output(accuracy±0.5%)for current sampling.
Response speed:The response time from receiving control instructions to output adjustment is≤10ms,which meets the rapid voltage regulation requirements of the power system.
Environmental adaptability
Operating temperature:-25℃to+70℃(extended temperature version supports-40℃to+85℃),relative humidity 5%~95%(no condensation).
Protection level:IP30 protective shell,passed IEC 60068-2-6 vibration test(10~500Hz,5g),suitable for high vibration environments such as ships and mines.
Communication and interface
Communication protocol:Supports industrial protocols such as Modbus RTU/TCP,IEC 60870-5-103,and is compatible with mainstream DCS/SCADA systems.
Expansion capability:Provides 2 CAN bus interfaces,supports daisy chain topology,and can expand up to 16 slave modules.
Application scenario
Power system stability control
In hydropower stations and thermal power stations,the module suppresses power oscillations and improves transient stability of the power grid by adjusting the excitation of the generator in real time.
Typical case:In a 500kV substation renovation project,after adopting this module,the system voltage fluctuation range was reduced from±3%to±1.5%.
Industrial automation integration
Applied to the excitation control of metallurgical rolling mills,papermaking machines and other equipment,and realizes closed-loop control of process parameters through linkage with PLC/HMI systems.
In a hot rolling mill of a steel plant,the module cooperates with Siemens S7-1500 to shorten the motor excitation response time by 40%.
Adaptation of new energy power generation
In the wind power/photovoltaic energy storage system,the module adjusts the excitation of the energy storage inverter to achieve reactive compensation of the grid connection point voltage.
Tests on a 10MW wind farm show that the module improves the low voltage ride-through capability by 25%,meeting the GB/T 19963-2021 standard.
Product advantages
High reliability design
Industrial-grade components(such as TDK capacitors and Infineon IGBTs)are used,with a mean time between failures(MTBF)of more than 150,000 hours.
Modular design supports hot-swap maintenance,and the system can be downgraded when a single board fails to ensure that critical loads do not stop.
Flexible expansion and compatibility
Supports seamless integration with systems such as ABB AC800PEC and ABB Ability,and parameter configuration is achieved through a unified engineering platform.
Provides MATLAB/Simulink model library,and users can design custom control algorithms based on the model.
