描述
一、核心功能与定位
产品类型

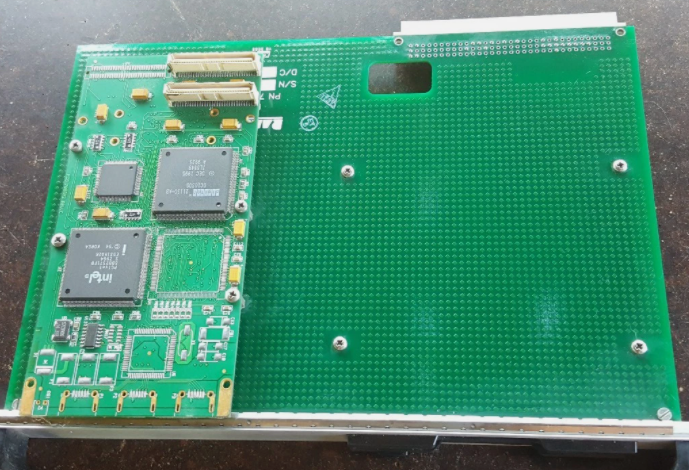

功能：高性能网络接口控制器板，基于PCI Mezzanine Card(PMC)规范设计，专为嵌入式系统、工业控制、通信设备等场景提供高吞吐量、低延迟的网络通信支持。
兼容性：兼容PCI-X总线，适配多种嵌入式系统与主机平台。
核心特性
网络处理器加速：集成专用网络处理器，高效处理数据包，降低主处理器负载，适用于实时网络应用。
协议支持：支持标准协议（TCP/IP、UDP）及高级功能（VLAN、QoS），优化网络性能与资源管理。
冗余容错：支持网络接口冗余配置，保障故障场景下的系统连续运行。
低功耗设计：优化能耗，适合长时间稳定运行。
操作系统兼容性：支持VxWorks、Linux、Windows等主流系统，提供驱动程序。
二、技术规格
硬件接口
接口类型：PCI Mezzanine Card(PMC)，兼容PCI-X总线。
网络接口：千兆以太网接口（全双工模式）。
协议与功能
协议支持：TCP/IP、UDP、VLAN、QoS。
冗余路径处理：支持多通道冗余配置，增强可靠性。
环境与功耗
功耗：低功耗设计（具体数值未明确标注）。
尺寸：符合PMC标准尺寸。
三、应用场景
嵌入式系统
路由器、防火墙、工业网络网关等高性能网络设备。
工业控制
PLC控制系统的联网模块，支持高效设备数据传输。
通信设备
电信与数据中心设备，用于交换和路由数据流。
军事与航空航天
高可靠性需求场景，如飞行器、卫星通信系统。
1.Core functions and positioning
Product Type
Function:High-performance network interface controller board,designed based on PCI Mezzanine Card(PMC)specification,and provides high-throughput,low-latency network communication support for embedded systems,industrial controls,communication equipment and other scenarios.
Compatibility:Compatible with PCI-X bus,adapted to a variety of embedded systems and host platforms.
Core features
Network processor acceleration:Integrates dedicated network processors to efficiently process data packets,reduces the load of the main processor,and is suitable for real-time network applications.
Protocol support:supports standard protocols(TCP/IP,UDP)and advanced functions(VLAN,QoS),and optimizes network performance and resource management.
Redundancy fault tolerance:supports redundant configuration of network interfaces to ensure continuous operation of the system in failure scenarios.
Low-power design:optimized energy consumption,suitable for long-term stable operation.
Operating system compatibility:supports mainstream systems such as VxWorks,Linux,Windows,etc.,and provides drivers.
2.Technical specifications
Hardware interface
Interface type:PCI Mezzanine Card(PMC),compatible with PCI-X bus.
Network interface:Gigabit Ethernet interface(full duplex mode).
Protocols and functions
Protocol support:TCP/IP,UDP,VLAN,QoS.
Redundant path processing:Supports multi-channel redundant configuration to enhance reliability.
Environment and power consumption
Power consumption:low-power design(specific valuesare not clearly marked).
Dimensions:Comply with PMC standard size.
III.Application scenarios
Embedded system
High-performance network equipment such as routers,firewalls,industrial network gateways.
Industrial Control
The networking module of the PLC control system supports efficient device data transmission.
Communication equipment
Telecom and data center equipment for switching and routing data streams.
Military and Aerospace
High reliability demand scenarios,such as aircraft and satellite communication systems.
