描述
产品概述

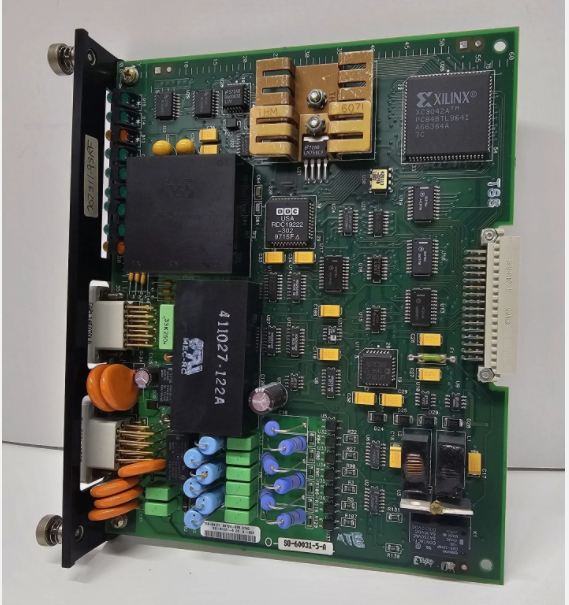

RELIANCE ELECTRIC 0-60031-5是一款高性能的光纤中继器，专为工业自动化系统设计，支持通过光纤扩展S908 RIO总线网络，提供高速率、远距离数据传输能力，同时具备电气隔离、抗干扰及智能故障管理功能。适用于复杂工业环境中的通信组网需求，如DCS（分布式控制系统）、PLC（可编程逻辑控制器）互联及远程设备通信。
技术参数
通信性能
总线速率：1.544 Mbit/s。
光纤传输距离：
多模光纤：2 km（ST/SC/FC接口可选）。
单模光纤：20 km（ST/SC/FC接口可选）。
数据传输模式：全透明传输，支持S908 RIO总线速率自适应。
电源与隔离
电源输入：DC 10-36 V宽电压供电，支持双电源冗余。
隔离保护：
电接口与总线间采用光电隔离，完全隔离地线回路。
每线1500 W防雷防浪涌保护、15 kV静电保护。
自恢复过流保护功能。
网络拓扑支持
支持点对点、星型、链型拓扑，可扩展为混合网络结构。
光纤交叉连接（A设备TX接B设备RX，反之亦然）。
核心功能特点
智能故障管理
总线故障切断：当某总线段故障时，自动切断以避免影响其他段。
状态监测：实时监测光纤链路、电源状态，通过继电器输出报警信号。
LED指示灯：显示总线和光纤运行状态，便于快速诊断。
工业级设计
防护等级：IP30，适用于工业环境。
结构：波纹式高强度金属外壳，35 mm工业卡轨安装。
抗干扰能力：防磁场、辐射及电磁干扰，适应恶劣环境。
扩展性与兼容性
支持与S908 RIO总线系统无缝集成。
兼容多品牌PLC及工业网络协议（需验证具体协议适配性）。
Product Overview
RELIANCE ELECTRIC 0-60031-5 is a high-performance fiber optic repeater designed for industrial automation systems.It supports the expansion of the S908 RIO bus network through fiber optics,providing high-speed,long-distance data transmission capabilities,and also has electrical isolation,anti-interference and intelligent fault management functions.It is suitable for communication networking requirements in complex industrial environments,such as DCS(distributed control system),PLC(programmable logic controller)interconnection and remote device communication.
Technical parameters
Communication performance
Bus rate:1.544 Mbit/s.
Fiber Optic Transmission Distance:
Multimode fiber:2 km(ST/SC/FC interface is optional).
Single-mode fiber:20 km(ST/SC/FC interface is optional).
Data transmission mode:fully transparent transmission,supports S908 RIO bus rate adaptation.
Power and isolation
Power input:DC 10-36 V wide voltage power supply,supports dual power supply redundancy.
Isolation protection:
The electrical interface and the bus are optoelectronic isolation,completely isolating the ground circuit.
Each line is 1500 W lightning protection and surge protection,15 kV electrostatic protection.
Self-recovery overcurrent protection function.
Network topology support
Supports point-to-point,star,and chain topology,and can be expanded into a hybrid network structure.
Fiber cross-connection(device A and TX connected to B and RX,and vice versa).
Core functional features
Intelligent fault management
Bus fail-off:When a bus segment fails,it will be automatically cut off to avoid affecting other segments.
Status monitoring:Real-time monitoring of fiber links and power supply status,and output alarm signals through relays.
LED indicator:Displays the operation status of the bus and fiber,which is convenient for quick diagnosis.
Industrial design
Protection level:IP30,suitable for industrial environments.
Structure:Corrugated high-strength metal shell,35 mm industrial rail installation.
Anti-interference ability:anti-magnetic field,radiation and electromagnetic interference,adapt to harsh environments.
Extensibility and compatibility
Supports seamless integration with the S908 RIO bus system.
Compatible with multi-brand PLC and industrial network protocols(need to verify the specific protocol adaptability).
