描述

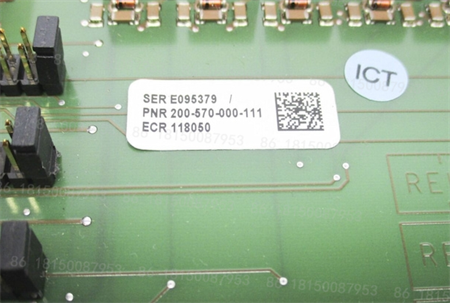

RLC16 200-570-000-111是Vibro-meter公司VM600系列机械保护系统中的继电器卡。以下是其产品详情：
基本信息
品牌：Vibro-meter
型号：RLC16
订货号：200-570-000-111
产地：瑞士
尺寸：262mm×20mm×125mm
重量：0.3kg
技术规格
继电器数量：16个
继电器类型：SPDT（单刀双掷）
触点装置：1x COM、1x NC和1xNO触点/继电器
额定电压：AC 250V
额定电流：AC 5A
最大分断能力：1250VA
操作/释放/反弹时间：通常为8/8/6毫秒
绝缘强度试验电压：开路之间AC 1000V，闭合回路之间AC 4000V
机械寿命：15×10⁶次操作
电气寿命：>10⁵次操作
功能特点
作为附加继电器卡：当IOC4T输入/输出卡的四个继电器不能满足需求时，RLC16卡可作为附加继电器卡使用。
安装方便：安装在VM600（ABE04X）框架背面，通过框架背板一对一进行连接。
软件组态：每个继电器都可通过软件组态，利用集电极开路驱动器驱动，可输出常开NO和常闭NC干接点，还可通过跳线选择常带电（NE）或常不带电（NDE）。
低触点电阻：具有低触点电阻、低电容和高通过性的特点。
热插拔支持：允许热插拔，符合EMC的EC标准。
RLC16 200-570-000-111 is the relay card in Vibro-meter’s VM600 series machinery protection system.The following are product details:
Basic Information
Brand:Vibro-meter
Model:RLC16
Order Number:200-570-000-111
Origin:Switzerland
Dimensions:262mm×20mm×125mm
Weight:0.3kg
Technical Specifications
Number of Relays:16
Relay Type:SPDT(Single Pole Double Throw)
Contact Arrangement:1x COM,1x NC,and 1x NO contact/relay
Rated Voltage:AC 250V
Rated Current:AC 5A
Maximum Breaking Capacity:1250VA
Operate/Release/Bounce Time:Typically 8/8/6 milliseconds
Dielectric Strength Test Voltage:AC 1000V between open circuits,AC 4000V between closed circuits
Mechanical Life:15×10⁶operations
Electrical Life:>10⁵operations
Functional Features
As an Add-on Relay Card:When IOC4T inputs/If the four relays on the output card are insufficient,the RLC16 card can be used as an additional relay card.
Easy Installation:Installs on the back of the VM600(ABE04X)frame and connects one-to-one via the frame backplane.
Software Configurability:Each relay is software-configurable,using an open-collector driver to output normally open(NO)and normally closed(NC)dry contacts.Jumpers can also be used to select normally energized(NE)or normally de-energized(NDE).
Low Contact Resistance:Features low contact resistance,low capacitance,and high current flow.
Hot-Swap Support:Hot-swapping is supported,complying with EC EMC standards.
