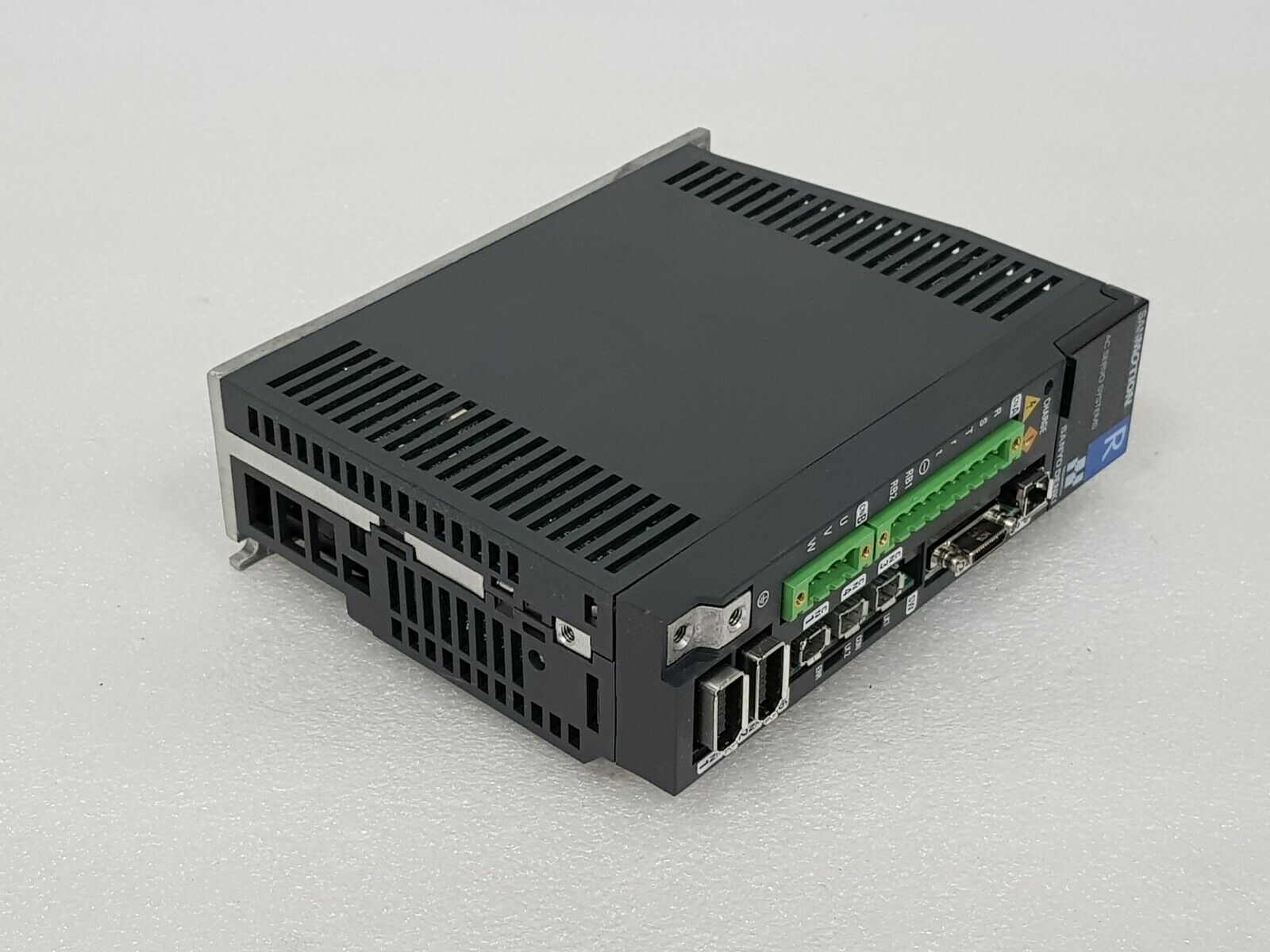

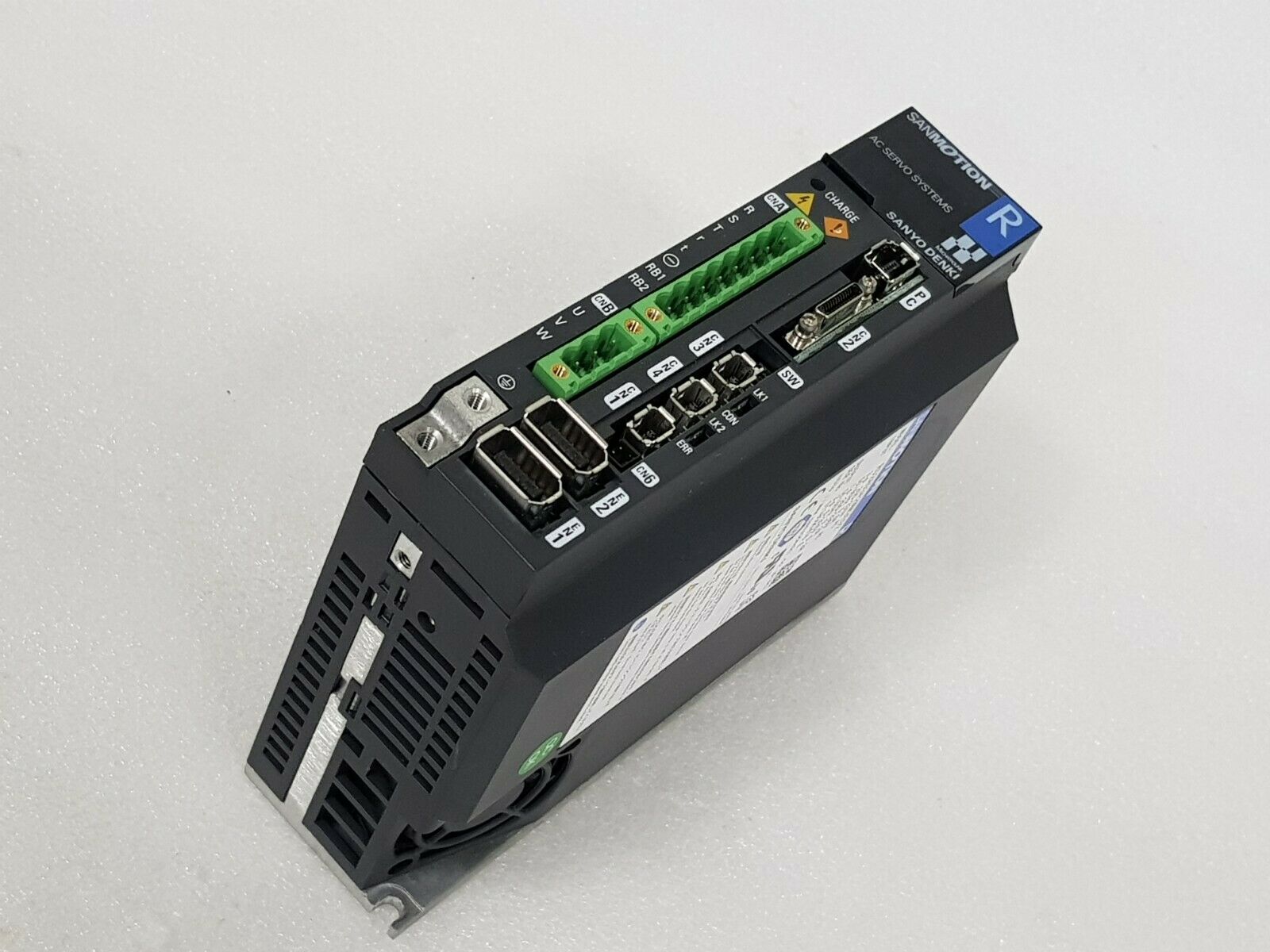

SANYO-767794产品概述
SANYO-767794是一款高性能闭环步进电机系统，作为SANYO DENKI旗下SANMOTION F5系列的核心产品，专为高精度闭环控制与动态响应设计。该产品融合绝对值编码技术（Absolute Encoder）与动态电流补偿算法，核心功能涵盖精准定位、实时反馈、抗干扰通信及自适应参数调整，所属闭环步进平台使其在自动化系统中定位为“智能定位模块”，通过闭环反馈与动态优化，提升设备定位精度与动态性能，适用于数控机床、机器人关节、精密检测设备等场景，显著降低定位误差与响应延迟，增强系统稳定性与效率。
主要特点和优势
SANYO-767794的技术特性与竞争优势体现在以下维度：
1.高精度闭环控制与绝对值反馈
采用17位绝对值编码器（Resolution 17bit），定位精度≤±0.001°。闭环反馈系统（Closed-loop Feedback）实时修正偏差，抗干扰能力达EMC Class 3。
2.动态电流补偿与低发热设计
动态电流补偿技术（DCC）根据负载变化自动调节电流，发热量降低30%。采用低损耗磁性材料（Low-loss Magnetic Core），延长电机寿命。
3.高速响应与宽频带控制
响应频率达4kHz，频响带宽≥1.2kHz。采用前馈控制（Feedforward Control）技术，缩短加速时间至0.1s。
4.自适应参数优化与一键调试
内置参数自整定功能（Auto-tuning），自动优化增益与滤波参数。一键调试工具（QCT）支持快速配置，减少调试时间80%。
5.高防护与紧凑设计
防护等级IP65，耐受工业粉尘与溅水。体积较传统系统缩小35%，支持导轨安装与模块化集成。
6.多轴联动与同步控制
支持8轴同步联动，通信协议兼容EtherCAT与CANopen，同步误差≤0.02ms，适配复杂协同任务。
7.低振动与静音运行
采用共振抑制算法（Vibration Suppression Algorithm），振动幅值≤0.01mm。正弦波驱动（Sinusoidal Drive）降低噪音至45dB（A）。
SANYO-767794 Product Overview
SANYO-767794 is a high-performance closed-loop stepper motor system.As the core product of SANMOTION F5 series under SANYO DENKI,it is specially designed for high-precision closed-loop control and dynamic response.This product integrates absolute value encoding technology(Absolute Encoder)and dynamic current compensation algorithm.The core functions cover precise positioning,real-time feedback,anti-interference communication and adaptive parameter adjustment.The closed-loop stepping platform makes it positioned as an”intelligent positioning module”in the automation system.Through closed-loop feedback and dynamic optimization,the equipment positioning accuracy and dynamic performance are improved.It is suitable for CNC machine tools,robot joints,precision detection equipment and other scenarios,significantly reducing positioning errors and response delays,and enhancing system stability and efficiency.
Main features and advantages
The technical characteristics and competitive advantages of SANYO-767794 are reflected in the following dimensions:
1.High-precision closed-loop control and absolute value feedback
A 17-bit absolute value encoder(Resolution 17bit)is used,and the positioning accuracy is≤±0.001°.Closed-loop feedback system(Closed-loop Feedback)corrects deviations in real time,and its anti-interference ability reaches EMC Class 3.
2.Dynamic current compensation and low heating design
Dynamic current compensation technology(DCC)automatically adjusts the current according to load changes,reducing the heat generation by 30%.Low-loss Magnetic Core is used to extend the motor life.
3.High-speed response and wide-band control
The response frequency reaches 4kHz and the frequency response bandwidth is≥1.2kHz.Feedforward Control technology is used to shorten the acceleration time to 0.1s.
4.Adaptive parameter optimization and one-click debugging
Built-in parameter autotuning function(Auto-tuning),automatically optimizes gain and filter parameters.One-click debugging tool(QCT)supports fast configuration,reducing debugging time by 80%.
5.High protection and compact design
Protection level IP65,withstand industrial dust and splashes.The volume is 35%smaller than that of traditional systems,and supports rail installation and modular integration.
6.Multi-axis linkage and synchronization control
Supports 8-axis synchronization linkage,the communication protocol is compatible with EtherCAT and CANopen,the synchronization error is≤0.02ms,and is suitable for complex collaborative tasks.
7.Low vibration and silent operation
A resonance suppression algorithm(Vibration Suppression Algorithm)is used,and the vibration amplitude is≤0.01mm.Sinusoidal Drive reduces noise to 45dB(A).
