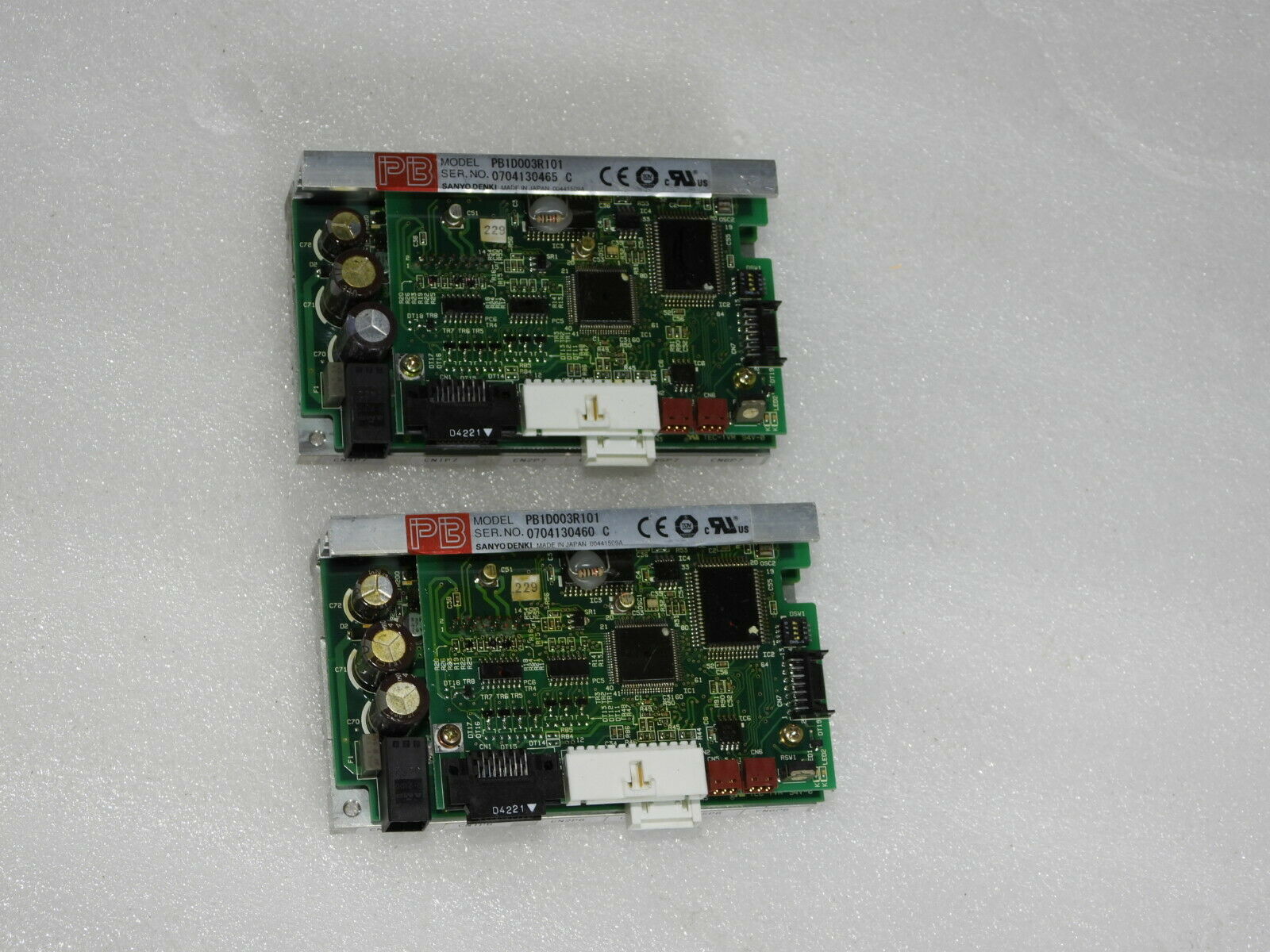

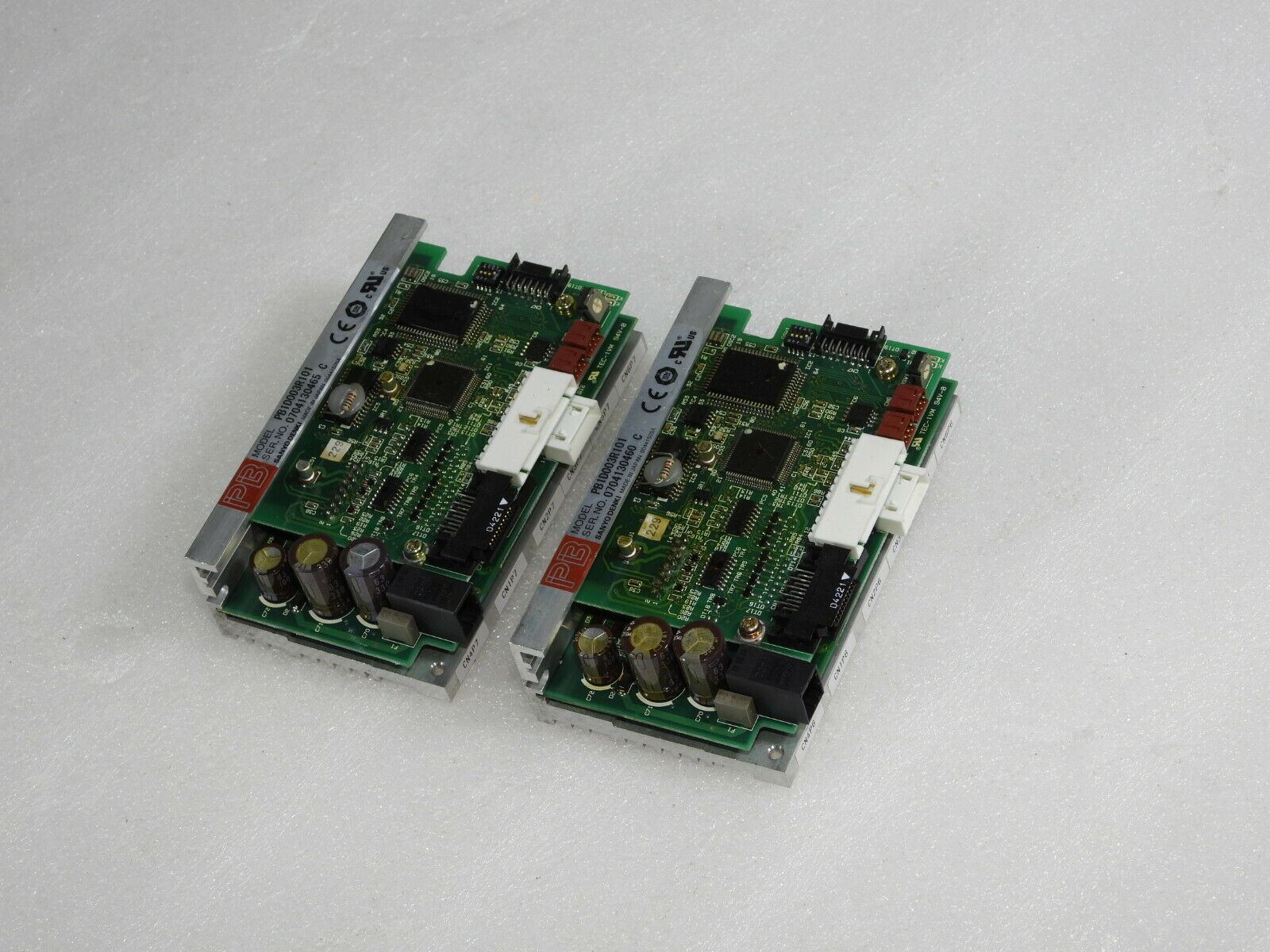

SANYO DENKI-769946产品概述
SANYO DENKI-769946是一款高性能单轴伺服驱动器，作为SANYO DENKI旗下SANMOTION R系列的旗舰产品，专为高精度单轴运动控制与快速响应场景设计。该产品采用先进的磁场定向控制（FOC）算法与自适应滤波技术，核心功能涵盖高速定位、动态扭矩优化、实时状态监测及紧凑型安装，所属SANMOTION高性能驱动平台使其在自动化系统中定位为“精准单轴控制核心”，通过精准调节电机转速与扭矩输出，显著提升设备的响应速度与定位精度，适用于精密加工、高速分拣、医疗设备等高要求自动化场景。
主要特点和优势
SANYO DENKI-769946的技术特性与竞争优势体现在以下维度：
1.高速响应与精准定位
控制周期0.0625ms，转速响应频率8kHz，支持前馈控制（FFC）与轨迹平滑算法（TSA），定位精度达±0.01mm。
2.动态扭矩优化与节能特性
实时扭矩监测与动态分配（RTD），节能模式（DCC）根据负载自动调节电流，效率提升至97%。过载保护（OLP）结合热管理，延长设备使用寿命。
3.智能诊断与预测维护
集成故障预测系统（FDS），通过振动分析（VA）与电流波形监测，提前预警轴承磨损、过热等故障，维护时间缩短50%。
4.紧凑设计与高效散热
体积较同类产品缩小35%，采用液冷与风冷双模式散热（DCS），温升控制≤25℃，适用于高密度机柜安装。
5.多协议兼容与灵活配置
兼容Profinet、EtherCAT、MECHATROLINK协议，支持开放式API接口，快速集成至现有控制系统。
6.高精度调试与自适应控制
自动参数整定（APT）功能，调试时间缩短70%。自适应振动抑制（AVS）算法，实时补偿机械共振，提升定位精度。
7.抗干扰设计与高可靠性
信号传输采用光纤冗余（FRD），抗电磁干扰能力达IEC 61000-4-4 4kV。防护等级IP20，适配工业现场复杂电磁环境。
8.安全认证与合规性
符合IEC 61800-5-2安全标准，支持安全扭矩限制（STL）与安全速度监控（SSM），确保操作安全。
SANYO DENKI-769946 Product Overview
SANYO DENKI-769946 is a high-performance single-axis servo driver.As the flagship product of SANMOTION R series under SANYO DENKI,it is specially designed for high-precision single-axis motion control and fast response scenarios.The product adopts advanced magnetic field directional control(FOC)algorithm and adaptive filtering technology.The core functions cover high-speed positioning,dynamic torque optimization,real-time status monitoring and compact installation.Its high-performance drive platform makes it positioned as the”precise single-axis control core”in the automation system.By accurately adjusting the motor speed and torque output,the equipment’s response speed and positioning accuracy are significantly improved.It is suitable for high-demand automation scenarios such as precision machining,high-speed sorting,and medical equipment.
Main features and advantages
The technical characteristics and competitive advantages of SANYO DENKI-769946 are reflected in the following dimensions:
1.High-speed response and precise positioning
The control period is 0.0625ms,the speed response frequency is 8kHz,and the feedforward control(FFC)and trajectory smoothing algorithm(TSA)are supported,and the positioning accuracy is±0.01mm.
2.Dynamic torque optimization and energy-saving characteristics
Real-time torque monitoring and dynamic distribution(RTD),energy-saving mode(DCC)automatically adjusts current according to the load,and the efficiency is increased to 97%.Overload protection(OLP)combined with thermal management extends the service life of the equipment.
3.Intelligent diagnostics and prediction maintenance
Integrated fault prediction system(FDS)is used to monitor vibration analysis(VA)and current waveform monitoring to early warning of bearing wear,overheating and other faults,and the maintenance time is shortened by 50%.
4.Compact design and efficient heat dissipation
The volume is 35%smaller than similar products.It adopts dual-mode heat dissipation(DCS)with liquid cooling and air cooling,and the temperature rise control is≤25℃.It is suitable for high-density cabinet installation.
5.Multi-protocol compatibility and flexible configuration
Compatible with Profinet,EtherCAT,and MECHATROLINK protocols,supports open API interfaces,and quickly integrates into existing control systems.
6.High-precision debugging and adaptive control
Automatic parameter tuning(APT)function,shortening debugging time by 70%.Adaptive vibration suppression(AVS)algorithm compensates mechanical resonance in real time and improves positioning accuracy.
7.Anti-interference design and high reliability
The signal transmission adopts fiber redundancy(FRD)and has an anti-electromagnetic interference capability of IEC 61000-4-4 4kV.Protection level IP20,adapted to complex electromagnetic environments on industrial sites.
8.Safety certification and compliance
Comply with IEC 61800-5-2 safety standards,supports safety torque limit(STL)and safety speed monitoring(SSM)to ensure safe operation.
