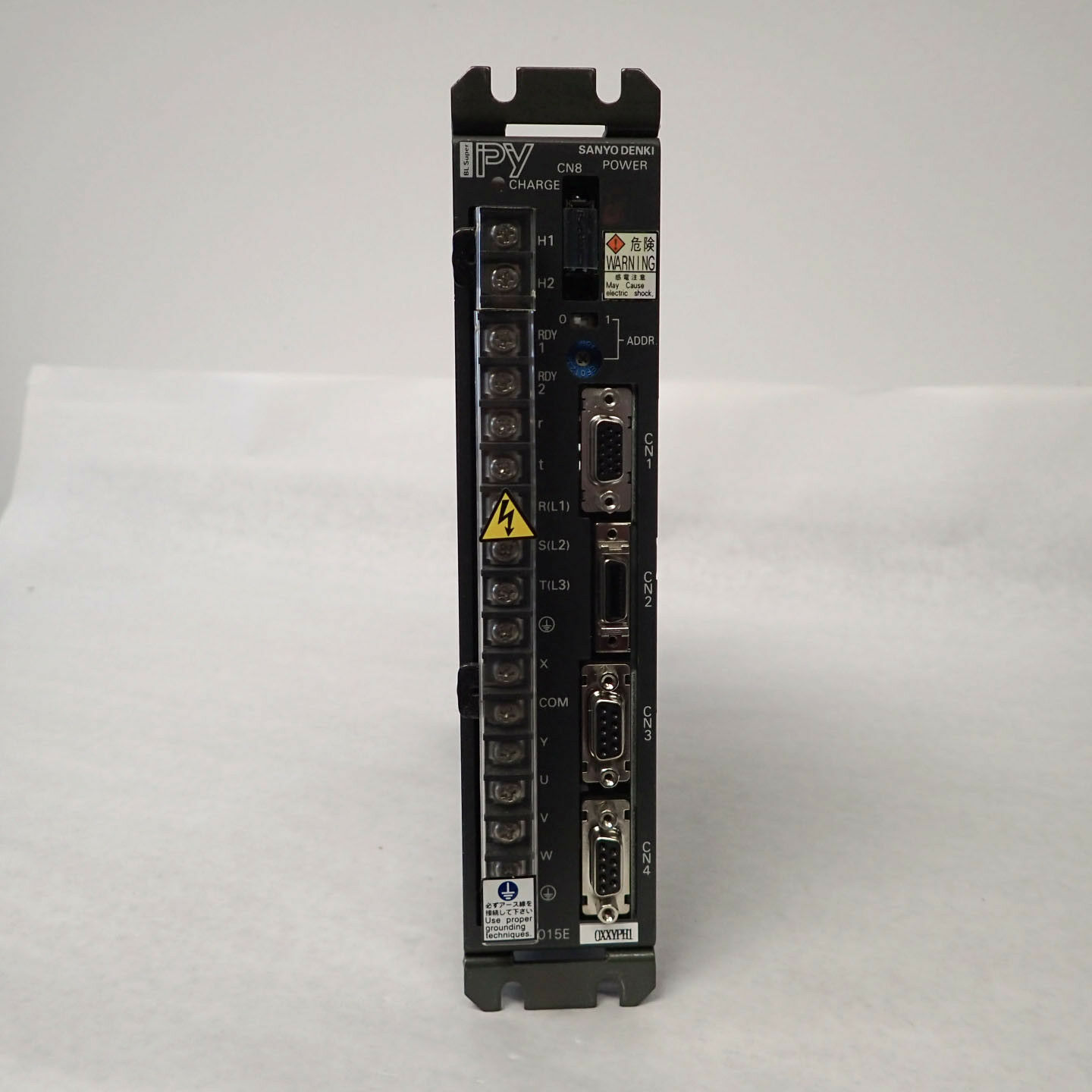

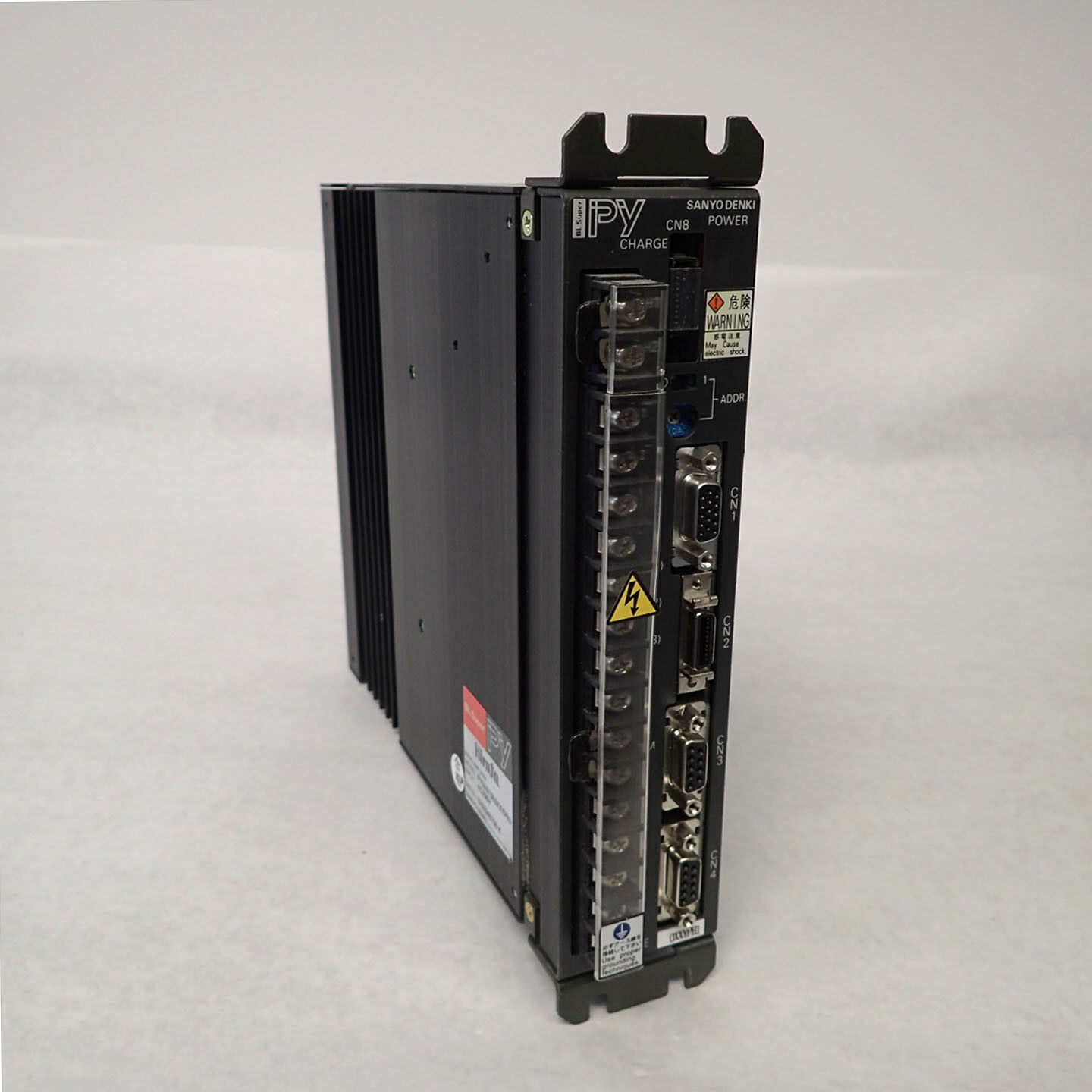

SANYO DENKI-770560产品概述
SANYO DENKI-770560是一款高性能步进电机驱动器，作为SANYO DENKI旗下SANMOTION S系列的核心产品，专为高精度定位与低振动控制设计。该产品采用先进细分驱动技术与动态电流优化算法，核心功能涵盖高精度步进控制、多轴联动、振动抑制及实时故障诊断，所属智能运动控制平台使其在自动化系统中定位为“精准执行单元”，通过优化电机电流分配与动态响应调节，提升设备定位精度与运行稳定性，适用于精密加工、自动化装配、医疗设备等高精度场景，显著降低振动与噪音，增强系统效率与可靠性。
主要特点和优势
SANYO DENKI-770560的技术特性与竞争优势体现在以下维度：
1.高精度细分驱动与低振动控制
支持256细分驱动（Microstepping），定位精度≤±0.01°。采用动态电流控制（DCC）与振动抑制算法（Vibration Suppression），减少电机共振与噪音。
2.多轴联动与高速同步
支持4轴同步控制，通信速率达5Mbps（EtherCAT/CANopen）。同步误差补偿（SEC）技术确保多轴偏差≤0.05ms，适配复杂协同任务。
3.动态电流优化与节能设计
实时监测负载变化，动态调节电流输出（Dynamic Current Optimization,DCO），节能效率达30%。采用低发热IGBT模块，延长设备寿命。
4.智能诊断与预防性维护
内置健康管理系统（HMS），实时监测温度、电流与驱动状态。故障预测模型（FPM）提前预警过热、过载风险，维护成本降低50%。
5.宽电压适配与高防护等级
支持AC 24-48V宽电压输入，电压波动容忍度±20%。防护等级IP65，耐受工业粉尘与油污，适应恶劣环境。
6.紧凑设计与快速安装
体积较传统驱动器缩小40%，支持导轨安装与模块化堆叠。预接线端子与一键配置工具（QCT）减少安装时间70%。
7.开放式编程与扩展性
兼容PLCopen运动控制标准，支持自定义逻辑接口（CLI）。提供API开发库，便于第三方系统集成。
8.低噪音与静音模式
采用正弦波电流驱动（Sinusoidal Drive），噪音降低至45dB。可选静音模式（Quiet Mode）进一步优化运行环境。
9.安全冗余与故障隔离
内置双重安全认证（Safety Certification EN 13849），支持STO（安全扭矩关断）。故障隔离设计确保单轴故障不影响系统运行。
SANYO DENKI-770560 Product Overview
SANYO DENKI-770560 is a high-performance stepper motor driver.As the core product of SANYO DENKI’s S series,it is specially designed for high-precision positioning and low-vibration control.The product adopts advanced segmented driving technology and dynamic current optimization algorithm.The core functions cover high-precision stepping control,multi-axis linkage,vibration suppression and real-time fault diagnosis.The intelligent motion control platform makes it positioned as a”precise execution unit”in the automation system.By optimizing motor current distribution and dynamic response adjustment,the equipment positioning accuracy and operation stability are improved.It is suitable for high-precision scenarios such as precision machining,automated assembly,and medical equipment,significantly reducing vibration and noise,and enhancing system efficiency and reliability.
Main features and advantages
The technical characteristics and competitive advantages of SANYO DENKI-770560 are reflected in the following dimensions:
1.High-precision subdivided drive and low vibration control
Supports 256 segmentation driver(Microstepping),with positioning accuracy≤±0.01°.Dynamic current control(DCC)and vibration suppression algorithm(Vibration Suppression)are used to reduce motor resonance and noise.
2.Multi-axis linkage and high-speed synchronization
Supports 4-axis synchronous control,and the communication rate reaches 5Mbps(EtherCAT/CANopen).Synchronous Error Compensation(SEC)technology ensures that multi-axis deviation is≤0.05ms and is suitable for complex collaborative tasks.
3.Dynamic current optimization and energy-saving design
Monitor load changes in real time,dynamically adjust current output(DCO),and energy saving efficiency reaches 30%.It adopts low heat generation IGBT module to extend the life of the equipment.
4.Intelligent diagnostic and preventive maintenance
Built-in health management system(HMS)to monitor temperature,current and driving status in real time.The Fault Prediction Model(FPM)warning for overheating and overload risks in advance,reducing maintenance costs by 50%.
5.Wide voltage adaptation and high protection level
Supports AC 24-48V wide voltage input,voltage fluctuation tolerance±20%.Protection level IP65,withstand industrial dust and oil pollution,and adapt to harsh environments.
6.Compact design and quick installation
The volume is 40%smaller than that of traditional drivers,and supports rail installation and modular stacking.Pre-wired terminals and one-click configuration tool(QCT)reduce installation time by 70%.
7.Open programming and scalability
Compatible with PLCopen motion control standard and supports custom logical interfaces(CLI).Provides API development library to facilitate third-party system integration.
8.Low noise and silent mode
Sinusoidal Drive is used to reduce the noise to 45dB.The optional Quiet Mode further optimizes the operating environment.
9.Safety redundancy and fault isolation
Built-in dual safety certification(Safety Certification EN 13849)supports STO(safety torque shutdown).The fault isolation design ensures that single-axis failure does not affect system operation.
