描述

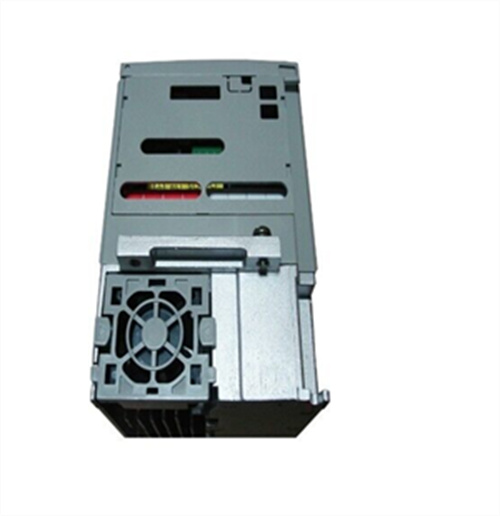

施耐德ATV61HD37N40变频器产品详情
1.产品概述
施耐德ATV61HD37N40是ATV61系列变频器的一款中高端型号，专为工业和商业领域的泵、风机等流体管理应用设计。该系列以高效节能、稳定可靠著称，支持复杂控制逻辑和多协议通信，适用于楼宇自动化、能源管理及工业驱动场景。
2.核心参数与技术规格
参数描述
型号ATV61HD37N40
品牌施耐德电气（Schneider）
功率范围0.75 kW至2400 kW（具体型号对应功率需参考手册）
电压等级三相200/240V或380/480V
过载能力110%连续，120%持续60秒
控制技术矢量控制（支持无传感器或编码器反馈）
通信协议Modbus、CANopen、DeviceNet、Profibus DP、Ethernet/IP等
EMC滤波器内置B级或可选A级滤波器，满足EN55011标准
防护等级IP20（标准配置），可选更高防护版本
环境适应性工作温度-10°C至+50°C，湿度≤90%（无凝露）
安全功能安全断电、过压/欠压保护、电机过载保护等
3.功能特性
（1）高效能与节能
变频调速：支持无极调速，优化电机运行效率，降低能耗达30%以上。
多泵管理：通过内置多泵可编程卡实现多台泵的协同控制，提升系统灵活性。
（2）智能控制与扩展
内置控制器：支持IEC 61131-3编程语言，可扩展逻辑控制功能。
I/O扩展：最多支持2个可选扩展卡（如通讯卡、编码器接口卡），扩展输入/输出通道。
（3）通信与集成
楼宇系统兼容：支持LonWorks、BACnet、METASYS N2等协议，无缝集成至楼宇管理系统。
工业网络适配：可选配以太网、Profinet等模块，实现工业自动化系统联网。
4.应用场景
工业领域
泵站、风机、压缩机、传送带等流体管理设备。
商业楼宇
空调、通风系统、空气净化设备及数据中心冷却系统。
特殊环境
海上钻井平台、灌溉站等严苛工业环境。
Schneider ATV61HD37N40 inverter product details
1.Product Overview
Schneider ATV61HD37N40 is a mid-to-high-end model of the ATV61 series inverter,designed for fluid management applications such as pumps and fans in industrial and commercial fields.This series is known for its high efficiency,energy saving,stability and reliability,supports complex control logic and multi-protocol communication,and is suitable for building automation,energy management and industrial drive scenarios.
2.Core parameters and technical specifications
Parameter Description
Model ATV61HD37N40
Brand Schneider
Power range 0.75 kW to 2400 kW(refer to the manual for the specific model corresponding power)
Voltage level Three-phase 200/240V or 380/480V
Overload capacity 110%continuous,120%for 60 seconds
Control technology Vector control(supports sensorless or encoder feedback)
Communication protocol Modbus,CANopen,DeviceNet,Profibus DP,Ethernet/IP,etc.
EMC filter Built-in Class B or optional Class A filter,meeting EN55011 standard
Protection level IP20(standard configuration),optional higher protection version
Environmental adaptability Working temperature-10°C to+50°C,humidity≤90%(no condensation)
Safety function Safe power off,overvoltage/undervoltage protection,motor overload protection,etc.
3.Functional characteristics
(1)High efficiency and energy saving
Variable frequency speed regulation:supports stepless speed regulation,optimizes motor operating efficiency,and reduces energy consumption by more than 30%.
Multi-pump management:realizes coordinated control of multiple pumps through the built-in multi-pump programmable card to improve system flexibility.
(2)Intelligent control and expansion
Built-in controller:supports IEC 61131-3 programming language and can expand logical control functions.
I/O expansion:supports up to 2 optional expansion cards(such as communication cards,encoder interface cards)to expand input/output channels.
(3)Communication and integration
Building system compatibility:supports LonWorks,BACnet,METASYS N2 and other protocols,and seamlessly integrates into building management systems.
Industrial network adaptation:optional Ethernet,Profinet and other modules can be used to realize networking of industrial automation systems.
4.Application scenarios
Industrial field
Fluid management equipment such as pump stations,fans,compressors,conveyor belts,etc.
Commercial buildings
Air conditioning,ventilation systems,air purification equipment and data center cooling systems.
Special environments
Harsh industrial environments such as offshore drilling platforms and irrigation stations.
