描述
SCHNEIDER BMXAMO0210产品详情
1.产品概述

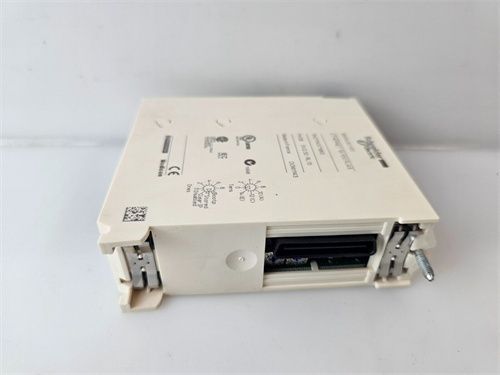

SCHNEIDER BMXAMO0210是施耐德电气（Schneider Electric）旗下Modicon X80/M340系列PLC的2通道隔离模拟量输出模块，专为工业自动化控制设计，支持高精度模拟信号输出，适用于电力、化工、机械、食品加工等领域的复杂控制场景。
2.核心参数与技术规格
参数描述
型号BMXAMO0210
品牌施耐德（Schneider Electric）
通道数量2通道
输出类型隔离模拟量（支持电压±10 V、电流0…20 mA/4…20 mA）
分辨率16位（15位+符号位）
转换时间≤1 ms
精度≤0.2%满量程（0…60°C），0.1%满量程（25°C）
隔离电压通道与地之间：1400 V DC；通道与总线之间：1400 V DC；通道间：750 V DC
功耗典型值2.1 W（24 V DC），最大值2.8 W
工作温度-20°C～+60°C
防护等级IP20（机架内部安装）
认证标准CE、UL、CSA、RoHS等
3.功能特性
（1）高精度与稳定性
多量程配置：支持电压（±10 V）和电流（0…20 mA/4…20 mA）灵活切换，适应不同传感器需求。
通道隔离：各通道间电气隔离，抗干扰能力强，确保信号传输的可靠性。
智能诊断：内置LED指示灯（RUN、通道状态、ERR），实时监测模块运行状态。
（2）工业级防护
过压/过载保护：自动切断输出，防止短路或过载损坏设备。
宽温适应性：支持-20°C～+60°C环境，适应严苛工业场景。
（3）兼容性与扩展
PLC系列适配：兼容Modicon X80、M340系列PLC，支持高速数据交换。
通信接口：通过机架内部电源供电，无需额外配置通信模块。
4.应用场景
工业自动化
PLC系统中电机调速、温度/压力控制、传感器信号输出。
食品加工
食品检测设备中的精准定位与信号输出（如雪糕检测）。
能源管理
泵、风机等流体设备的变频控制。
机械控制
机床、纺织机械的模拟量输出控制。
SCHNEIDER BMXAMO0210 Product Details
1.Product Overview
SCHNEIDER BMXAMO0210 is a 2-channel isolated analog output module for Schneider Electric’s Modicon X80/M340 series PLC.It is designed for industrial automation control and supports high-precision analog signal output.It is suitable for complex control scenarios in the fields of power,chemical industry,machinery,food processing,etc.
2.Core parameters and technical specifications
Parameter Description
Model BMXAMO0210
Brand Schneider Electric
Number of channels 2 channels
Output type Isolated analog(supports voltage±10 V,current 0…20 mA/4…20 mA)
Resolution 16 bits(15 bits+sign bit)
Conversion time≤1 ms
Accuracy≤0.2%full scale(0…60°C),0.1%full scale(25°C)
Isolation voltage Between channel and ground:1400 V DC;Between channel and bus:1400 V DC;Between channels:750 V DC
Power consumption Typical value 2.1 W(24 V DC),maximum value 2.8 W
Operating temperature-20°C~+60°C
Protection level IP20(installed inside the rack)
Certification standards CE,UL,CSA,RoHS,etc.
3.Functional characteristics
(1)High precision and stability
Multi-range configuration:supports flexible switching of voltage(±10 V)and current(0…20 mA/4…20 mA)to meet the needs of different sensors.
Channel isolation:Electrical isolation between channels,strong anti-interference ability,ensuring the reliability of signal transmission.
Intelligent diagnosis:Built-in LED indicator(RUN,channel status,ERR)to monitor the module operation status in real time.
(2)Industrial-grade protection
Overvoltage/overload protection:Automatically cut off the output to prevent short circuit or overload damage to the equipment.
Wide temperature adaptability:supports-20°C~+60°C environment,suitable for harsh industrial scenarios.
(3)Compatibility and expansion
PLC series adaptation:compatible with Modicon X80,M340 series PLC,supports high-speed data exchange.
Communication interface:powered by the internal power supply of the rack,no additional communication module is required.
4.Application scenarios
Industrial automation
Motor speed regulation,temperature/pressure control,and sensor signal output in PLC systems.
Food processing
Precise positioning and signal output in food testing equipment(such as ice cream testing).
Energy management
Frequency control of fluid equipment such as pumps and fans.
Machine control
Analog output control of machine tools and textile machinery.
