描述
SCHNEIDER BMXCPS2000产品详情
1.产品概述

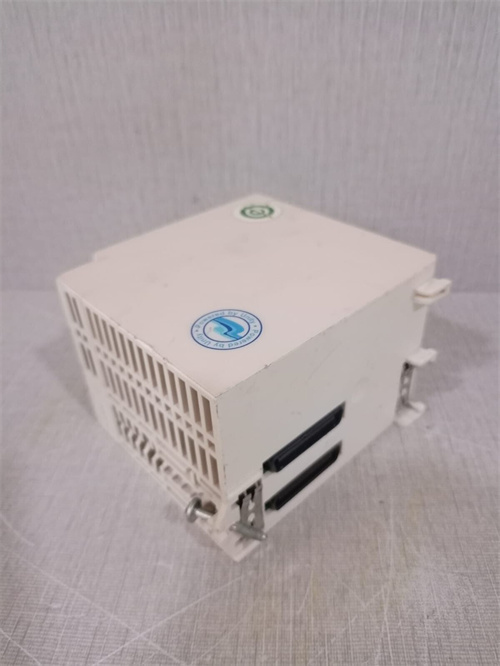

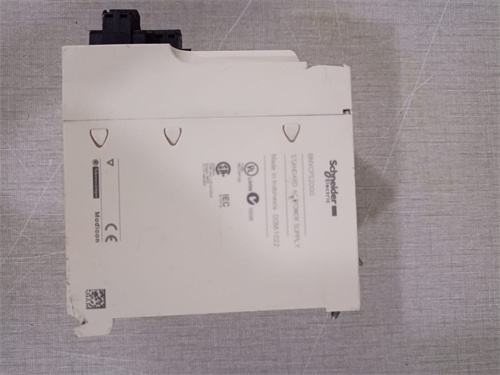

SCHNEIDER BMXCPS2000是施耐德电气（Schneider Electric）推出的一款标准电源模块，专为Modicon M340/X80系列PLC系统设计，提供稳定的24V直流电源支持。其核心功能是为PLC机架及扩展模块供电，适用于工业自动化、工厂控制、楼宇管理等领域，具有宽电压输入、高可靠性和紧凑设计等特点。
2.技术规格
参数描述
型号BMXCPS2000
品牌施耐德电气（Schneider Electric）
输入电压100-240 V AC（极限范围85-264 V AC）
输出电压24 V DC（传感器电源）、24 V DC（I/O模块电源）、3.3 V DC（逻辑电源）
输出功率20 W（总功率），其中：
传感器电源：10.8 W
I/O模块电源：16.8 W
逻辑电源：8.3 W|
|效率|88%|
|工作温度|0°C-60°C（运行），-40°C-85°C（存储）|
|防护等级|IP20（机架内部安装）|
|尺寸|100 mm×80 mm×50 mm|
|认证标准|CE、EN 61131-2、IEC 61131-2|
3.功能特性
（1）高可靠性与兼容性
宽电压输入：支持85-264 V AC输入，适应不同供电环境。
过载保护：内置过压、过流、短路保护，确保系统稳定运行。
兼容性：专为Modicon M340/X80系列PLC设计，兼容BMXXBPpp00机架，不兼容BMEXBP..02系列。
（2）高效能与低功耗
低功耗设计：典型功耗≤8.5 W，效率达88%，减少能源浪费。
智能散热：无需额外散热装置，适应高温环境（最高60°C）。
（3）扩展与维护
模块化设计：支持快速更换，降低维护成本。
状态指示：LED指示灯显示背板电压和传感器电源状态。
SCHNEIDER BMXCPS2000 Product Details
1.Product Overview
SCHNEIDER BMXCPS2000 is a standard power supply module launched by Schneider Electric,designed for Modicon M340/X80 series PLC systems,providing stable 24V DC power support.Its core function is to power PLC racks and expansion modules.It is suitable for industrial automation,factory control,building management and other fields,with wide voltage input,high reliability and compact design.
2.Technical Specifications
Parameter Description
Model BMXCPS2000
Brand Schneider Electric
Input voltage 100-240 V AC(limit range 85-264 V AC)
Output voltage 24 V DC(sensor power),24 V DC(I/O module power),3.3 V DC(logic power)
Output power 20 W(total power),of which:
Sensor power:10.8 W
I/O module power:16.8 W
Logic power:8.3 W|
|Efficiency|88%|
|Operating temperature|0°C-60°C(operation),-40°C-85°C(storage)|
|Protection level|IP20(mounted inside the rack)|
|Dimensions|100 mm×80 mm×50 mm|
|Certification standards|CE,EN 61131-2,IEC 61131-2|
3.Functional characteristics
(1)High reliability and compatibility
Wide voltage input:supports 85-264 V AC input,adapting to different power supply environments.
Overload protection:built-in overvoltage,overcurrent,and short-circuit protection to ensure stable system operation.
Compatibility:specially designed for Modicon M340/X80 series PLC,compatible with BMXXBPpp00 rack,not compatible with BMEXBP..02 series.
(2)High efficiency and low power consumption
Low power consumption design:typical power consumption≤8.5 W,efficiency up to 88%,reducing energy waste.
Intelligent heat dissipation:no additional heat dissipation device is required,adapting to high temperature environment(up to 60°C).
(3)Expansion and maintenance
Modular design:supports quick replacement and reduces maintenance costs.
Status indication:LED indicator shows backplane voltage and sensor power status.
