描述

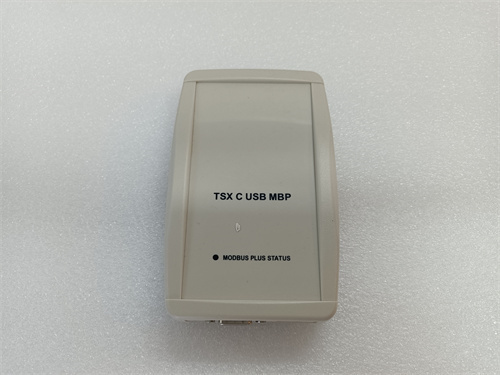

SCHNEIDER TSXCUSBMBP是施耐德电气推出的一款通信适配器模块，主要用于工业自动化领域，实现计算机与施耐德电气PLC（可编程逻辑控制器）之间的通信，以下为产品详情：
一、核心功能
通信接口与数据传输
接口类型：配备USB接口，符合USB 2.0标准，支持即插即用功能，无需额外电源。
传输能力：支持从计算机向PLC发送控制命令、参数配置及数据，同时可实时获取PLC的运行状态和过程数据。
协议支持与扩展性
协议兼容：支持Modbus Plus协议，并可能兼容TCP/IP、RS-232等协议，适应多厂商设备集成需求。
网络集成：通过单根电缆提供千兆级以太网带宽，集成I/O、安全和运动控制功能，支持工业4.0数据密集型应用。
工业级设计
环境适应性：工作温度范围0℃至60℃，采用宽温设计，满足工业现场复杂环境要求。
防护等级：具备防尘、防潮特性，通过EMC电磁兼容性测试，确保在强干扰环境下稳定运行。
二、技术参数
硬件规格

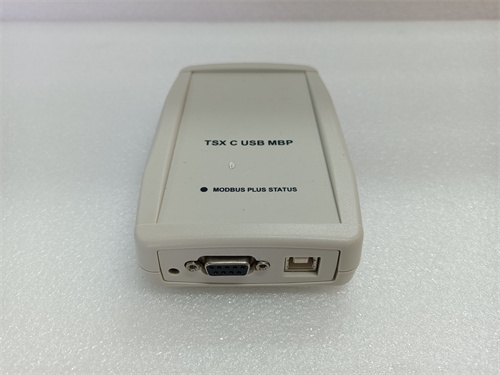

接口形式：USB-B型接口，支持热插拔，数据传输速率最高480Mbps。
尺寸与重量：紧凑型设计，具体尺寸需参考技术手册，重量约200g。
电气参数
供电方式：通过USB接口供电，无需独立电源，支持5V/500mA输出。
功耗：典型功耗≤2.5W，待机功耗＜0.5W。
三、典型应用场景
工业自动化
生产线监控：实时采集设备运行数据，支持故障预警与远程诊断。
过程控制：通过Modbus Plus协议与PLC通信，实现配方管理、批次跟踪等功能。
建筑自动化
智能楼宇系统：集成照明、暖通空调（HVAC）及安防系统，支持能耗分析与优化。
能源管理
分布式发电：连接微型涡轮机控制器，实现多设备协同运行与预测性维护。
SCHNEIDER TSXCUSBMBP is a communication adapter module launched by Schneider Electric.It is mainly used in the field of industrial automation to realize communication between computers and Schneider Electric PLC(Programmable Logic Controller).The following are product details:
1.Core functions
Communication interface and data transmission
Interface type:Equipped with USB interface,compliant with USB 2.0 standard,supports plug-and-play function,and does not require additional power supply.
Transmission capability:Supports sending control commands,parameter configuration and data from computer to PLC,and can obtain the operating status and process data of PLC in real time.
Protocol support and scalability
Protocol compatibility:Supports Modbus Plus protocol,and may be compatible with TCP/IP,RS-232 and other protocols to meet the needs of multi-vendor equipment integration.
Network integration:Provides Gigabit Ethernet bandwidth through a single cable,integrates I/O,safety and motion control functions,and supports data-intensive applications of Industry 4.0.
Industrial-grade design
Environmental adaptability:The operating temperature range is 0℃to 60℃,and the wide temperature design is adopted to meet the complex environment requirements of industrial sites.
Protection level:dustproof and moisture-proof,passed EMC electromagnetic compatibility test,ensuring stable operation in strong interference environment.
2.Technical parameters
Hardware specifications
Interface form:USB-B type interface,supports hot plugging,data transmission rate up to 480Mbps.
Dimensions and weight:compact design,specific dimensions need to refer to the technical manual,weight about 200g.
Electrical parameters
Power supply mode:powered by USB interface,no independent power supply required,supports 5V/500mA output.
Power consumption:typical power consumption≤2.5W,standby power consumption<0.5W.
3.Typical application scenarios
Industrial automation
Production line monitoring:real-time collection of equipment operation data,support fault warning and remote diagnosis.
Process control:communicate with PLC through Modbus Plus protocol to realize recipe management,batch tracking and other functions.
Building automation
Intelligent building system:integrated lighting,HVAC and security systems,support energy consumption analysis and optimization.
Energy management
Distributed power generation:connect micro-turbine controller to realize multi-device collaborative operation and predictive maintenance.
