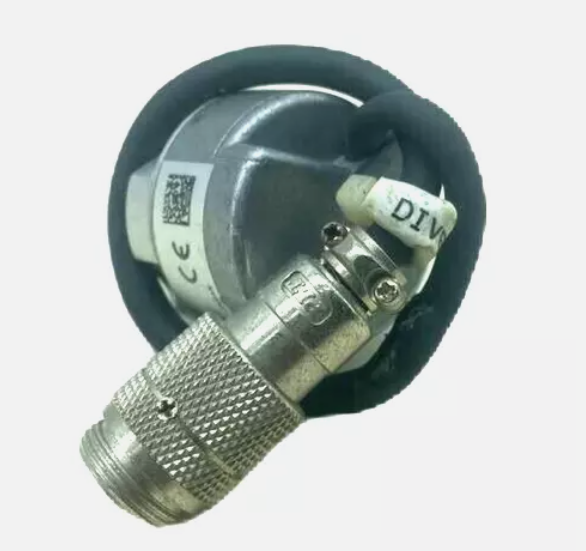

SUMTAK IRH320-1000-203技术数据解析
一、产品类型与定位
类型：增量式空心轴旋转编码器
系列：控制系统
应用场景：工业自动化、机器人、机械集成设备的位置与速度传感
二、核心参数
物理结构
轴径：203 mm（型号后缀“203”通常表示轴径，单位为毫米）
中空轴设计：便于集成到现有机械结构中，减少空间占用。
电气特性
输出信号：增量式编码器标准输出（如A/B相正交脉冲+Z相零位脉冲）。
环境适应性
工作温度范围：-40°C至+85°C（宽温型，适用于恶劣工业环境）。
防护等级：未明确，但“耐用结构”描述暗示可能具备IP防护等级（如IP65/IP67）。
三、功能特性
高分辨率
支持高精度位置反馈，但具体分辨率（如PPR，脉冲每转）未明确。
抗干扰能力
耐受电磁干扰（EMI）与机械振动，适用于工业环境。
可靠性
长寿命设计，支持24/7连续运行，适用于自动化生产线等高可靠性场景。
四、应用领域
工业自动化
机械臂、传送带、数控机床的位置控制。
机器人技术
关节轴旋转角度检测，确保运动精度。
过程控制
泵、阀门等设备的转速与位置监测。
SUMTAK IRH320-1000-203 Technical data analysis
1.Product type and positioning
Type:Incremental hollow shaft rotary encoder
Series:Control system
Application scenarios:Position and speed sensing of industrial automation,robots,and mechanical integrated equipment
2.Core parameters
Physical structure
Shaft diameter:203 mm(the model suffix”203″usually indicates the shaft diameter,in mm)
Hollow shaft design:easy to integrate into existing mechanical structures and reduce space occupation.
Installation method:Not specified,but hollow shaft encoder usually supports flange installation or direct coupling.
Electrical characteristics
Working voltage:Not clearly marked(refer to the specific model manual).
Output signal:standard output of incremental encoder(such as A/B phase orthogonal pulse+Z phase zero pulse).
Power consumption:Low power consumption design,but specific valuesare not provided.
Environmental adaptability
Operating temperature range:-40°C to+85°C(Wide temperature type,suitable for harsh industrial environments).
Protection level:Not clear,but the”durable construction”description implies that IP protection level may be available(such as IP65/IP67).
3.Functional characteristics
high resolution
Supports high-precision position feedback,but the specific resolution(such as PPR,pulse per revolution)is not clear.
Anti-interference capability
Resistant to electromagnetic interference(EMI)and mechanical vibration,suitable for industrial environments.
reliability
Long-life design,supports 24/7 continuous operation,suitable for high-reliability scenarios such as automated production lines.
IV.Application fields
Industrial automation
Position control of robotic arms,conveyor belts,and CNC machine tools.
Robotics
The rotation angle detection of joint axis ensures movement accuracy.
Process control
Monitor the speed and position of pumps,valves and other equipment.
