描述

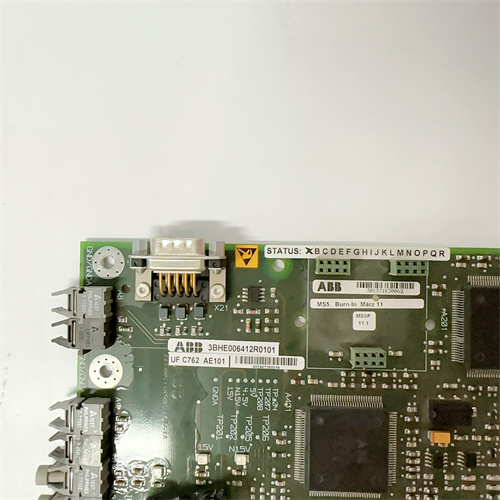

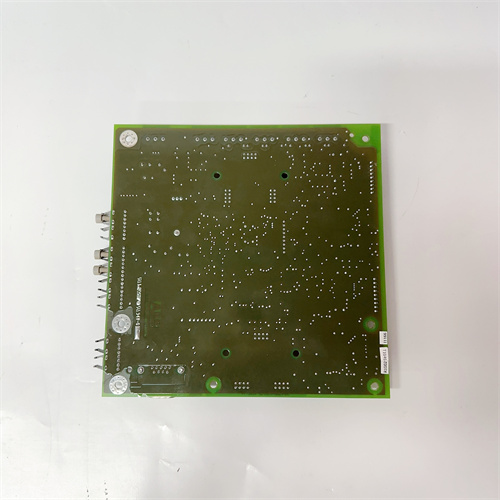

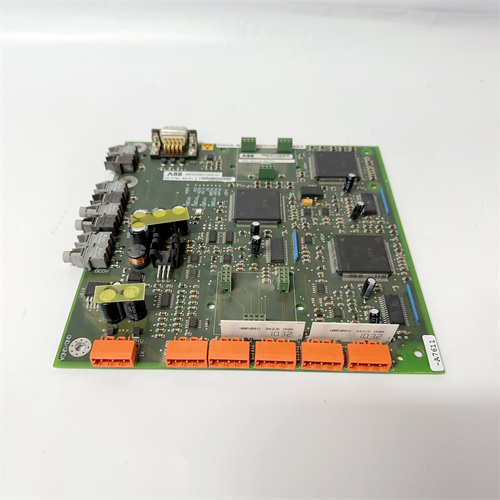

UFC762AE101 3BHE006412R0101是ABB推出的一款高性能伺服驱动模块，主要用于工业自动化和控制系统中，实现对伺服电机的精确控制。
核心功能
伺服控制
多模式控制：支持速度控制、位置控制和扭矩控制，可满足复杂运动控制需求，适用于高精度定位、动态响应等场景。
高动态响应：配备高性能处理器和反馈系统，能够快速响应指令变化，确保电机运行的稳定性和高效性。
多轴支持
支持多轴同步控制，可同时驱动多个伺服电机，实现复杂运动轨迹控制，提升系统灵活性和生产效率。
通信与集成
接口兼容性：提供以太网、Modbus、CAN总线、RS485、Profibus等多种通信接口，便于与其他设备或控制系统集成。
协议支持：兼容主流工业协议，支持数据交换和远程监控，适应不同工业场景需求。
自诊断与报警
内置自诊断功能，可实时监测系统状态，发现故障时生成报警信息，便于及时维护。
用户友好配置
提供直观的配置界面和参数调整工具，支持通过配置软件快速设定电机参数和控制模式，降低操作难度。
技术参数
输入/输出信号
输入信号：支持模拟量（0-10V、4-20mA）和数字量（ON/OFF）。
输出信号：支持模拟量（0-10V、4-20mA）和数字量（ON/OFF）。
控制精度
精度达到±0.1%FS（满量程），确保高精度运动控制。
环境适应性
工作温度范围：-10℃至+55℃，适应不同工业环境。
防护等级：具备防尘、防潮能力，抵御恶劣环境影响。
电源支持
电源电压：AC220V/DC24V，兼容多种电源类型。
应用场景
工业自动化
应用于工业机器人、自动化装配线、数控机床等场景，实现高精度运动控制，提升生产效率。
能源与动力系统
用于风力涡轮机、燃气轮机、蒸汽轮机、水轮机等设备的控制，优化能源利用效率。
医疗与印刷设备
在医疗设备、印刷设备等需要高精度控制的领域，确保设备运行的稳定性和可靠性。
过程控制
适用于废水处理系统等过程控制场景，实现对关键参数的精确调节。
产品优势
高可靠性与稳定性
采用工业级设计，具备优异的稳定性和可靠性，能够在恶劣环境中长期稳定运行。
灵活配置与扩展性
支持多轴控制和多种通信接口，便于系统扩展和功能升级。
易于维护
提供直观的配置界面和强大的诊断工具，支持远程监控和维护，降低维护成本。
高精度与动态响应
通过高性能处理器和反馈系统，实现高精度、高动态响应的运动控制，满足复杂工业需求。
UFC762AE101 3BHE006412R0101 is a high-performance servo drive module launched by ABB,mainly used in industrial automation and control systems to achieve precise control of servo motors.
Core functions
Servo control
Multi-mode control:supports speed control,position control and torque control,can meet complex motion control requirements,and is suitable for high-precision positioning,dynamic response and other scenarios.
High dynamic response:equipped with high-performance processors and feedback systems,it can quickly respond to command changes and ensure the stability and efficiency of motor operation.
Multi-axis support
Supports multi-axis synchronous control,can drive multiple servo motors at the same time,realize complex motion trajectory control,and improve system flexibility and production efficiency.
Communication and integration
Interface compatibility:provides multiple communication interfaces such as Ethernet,Modbus,CAN bus,RS485,Profibus,etc.,which is easy to integrate with other devices or control systems.
Protocol support:compatible with mainstream industrial protocols,supports data exchange and remote monitoring,and adapts to the needs of different industrial scenarios.
Self-diagnosis and alarm
The built-in self-diagnosis function can monitor the system status in real time,generate alarm information when a fault is found,and facilitate timely maintenance.
User-friendly configuration
Provides an intuitive configuration interface and parameter adjustment tool,supports quick setting of motor parameters and control mode through configuration software,and reduces the difficulty of operation.
Technical parameters
Input/output signal
Input signal:supports analog(0-10V,4-20mA)and digital(ON/OFF).
Output signal:supports analog(0-10V,4-20mA)and digital(ON/OFF).
Control accuracy
The accuracy reaches±0.1%FS(full scale),ensuring high-precision motion control.
Environmental adaptability
Operating temperature range:-10℃to+55℃,suitable for different industrial environments.
Protection level:dustproof and moisture-proof,resistant to harsh environments.
Power supply support
Power supply voltage:AC220V/DC24V,compatible with a variety of power supply types.
Application scenarios
Industrial automation
Applied to industrial robots,automated assembly lines,CNC machine tools and other scenarios to achieve high-precision motion control and improve production efficiency.
Energy and power systems
Used for the control of wind turbines,gas turbines,steam turbines,water turbines and other equipment to optimize energy utilization efficiency.
Medical and printing equipment
Ensure the stability and reliability of equipment operation in fields such as medical equipment and printing equipment that require high-precision control.
Process control
Applicable to process control scenarios such as wastewater treatment systems to achieve precise adjustment of key parameters.
Product advantages
High reliability and stability
Adopting industrial-grade design,it has excellent stability and reliability and can operate stably for a long time in harsh environments.
Flexible configuration and scalability
Supports multi-axis control and multiple communication interfaces to facilitate system expansion and function upgrades.
Easy to maintain
Provides an intuitive configuration interface and powerful diagnostic tools to support remote monitoring and maintenance and reduce maintenance costs.
High precision and dynamic response
Through high-performance processors and feedback systems,high-precision and high-dynamic response motion control is achieved to meet complex industrial needs.
