描述

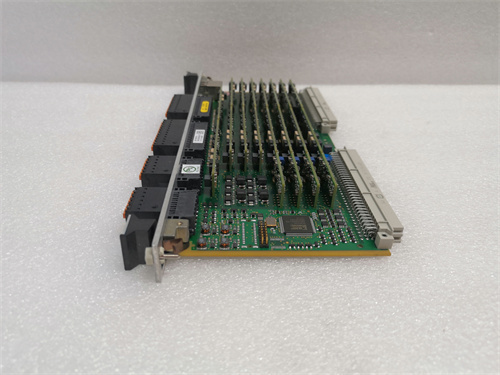

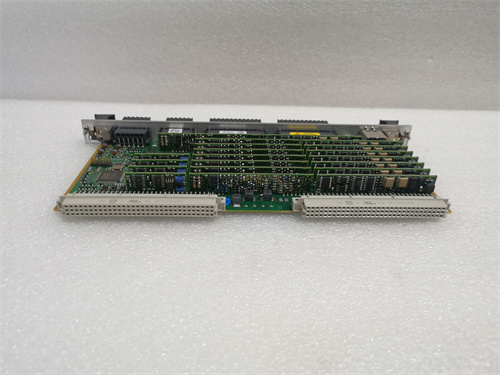

Vibro-meter 620-002-000-113 620-003-111-112 VM600 XIO16T输入/输出模块产品详情
1.产品概述
VM600 XIO16T是Vibro-meter（现属Meggitt公司）推出的高可靠性输入/输出模块，专为VM600系列机架式机械监控系统设计，通常与XMV16振动监测模块或XMC16燃烧监控模块组合使用（形成“卡对”），支持多通道信号采集与控制，适用于工业设备的振动、转速及状态监测。
2.核心功能与特性
（1）多通道输入/输出
动态通道：支持16个动态通道，用于振动、温度等传感器信号输入，可独立配置。
转速计通道：提供4个转速计（速度）通道，支持1-100,000 RPM转速测量，分辨率高达5ns，兼容电压（-20～+20V DC）和电流（-30～+30 mA）输入。
数字I/O：支持数字输入（如开关信号、报警触发）和数字输出（如控制设备启停），适用于工业自动化控制。
（2）信号处理与通信
高精度采集：采用24位分辨率模拟信号处理，信噪比高，支持FFT频谱分析（最高每500ms 6400行）。
通信协议：兼容Modbus RTU/TCP、PROFINET及以太网（RJ45接口），可与VibroSight软件、PLC及上位机系统无缝集成。
（3）实时监测与报警
实时数据传输：通过以太网或工业总线将振动、转速数据实时上传至监控系统。
报警触发：检测到异常振动或超速时，可触发本地报警或通过数字输出控制外部设备停机。
3.技术规格
参数描述
通道类型16个动态通道+4个转速计通道
转速测量范围1-100,000 RPM（0.017 Hz至1.667 kHz）
输入信号类型动态通道：差分信号输入；转速计通道：电压/电流（通道1-2支持电流输入）
分辨率转速计：5ns；动态通道：24位ADC
通信接口以太网（RJ45）、工业总线（OC总线）
工作温度-40°C至+70°C
防护等级未明确标注（符合工业环境抗干扰设计）
兼容机架ABE04x、ABE056
4.应用场景
工业设备监测：发电厂汽轮机、石油天然气泵、化工机械等旋转设备的振动与转速监控。
状态维护：结合VibroSight软件实现预测性维护，减少非计划停机。
自动化控制：通过数字输出控制设备启停或联锁保护。
5.系统集成与扩展
模块化设计：需与XMV16/XMC16模块搭配使用，形成“卡对”结构，安装于VM600机架（如ABE04x）。
冗余配置：可选CPUR/IOCR冗余控制器，提升系统可靠性
Vibro-meter 620-002-000-113 620-003-111-112 VM600 XIO16T Input/Output Module Product Details
1.Product Overview
VM600 XIO16T is a high-reliability input/output module launched by Vibro-meter(now Meggitt).It is designed for VM600 series rack-mounted machinery monitoring systems.It is usually used in combination with XMV16 vibration monitoring module or XMC16 combustion monitoring module(forming a”card pair”),supports multi-channel signal acquisition and control,and is suitable for vibration,speed and condition monitoring of industrial equipment.
2.Core functions and features
(1)Multi-channel input/output
Dynamic channels:supports 16 dynamic channels for vibration,temperature and other sensor signal input,which can be configured independently.
Tachometer channel:Provides 4 tachometer(speed)channels,supports 1-100,000 RPM speed measurement,with a resolution of up to 5ns,and is compatible with voltage(-20~+20V DC)and current(-30~+30 mA)inputs.
Digital I/O:Supports digital input(such as switch signals,alarm triggers)and digital output(such as control equipment start and stop),suitable for industrial automation control.
(2)Signal processing and communication
High-precision acquisition:Adopts 24-bit resolution analog signal processing,high signal-to-noise ratio,and supports FFT spectrum analysis(up to 6400 lines per 500ms).
Communication protocol:Compatible with Modbus RTU/TCP,PROFINET and Ethernet(RJ45 interface),and can be seamlessly integrated with VibroSight software,PLC and host computer systems.
(3)Real-time monitoring and alarm
Real-time data transmission:Vibration and speed data are uploaded to the monitoring system in real time via Ethernet or industrial bus.
Alarm trigger:When abnormal vibration or overspeed is detected,a local alarm can be triggered or the external device can be controlled to shut down through digital output.
3.Technical specifications
Parameter Description
Channel type 16 dynamic channels+4 tachometer channels
Speedmeasurement range 1-100,000 RPM(0.017 Hz to 1.667 kHz)
Input signal type Dynamic channel:differential signal input;tachometer channel:voltage/current(channels 1-2 support current input)
Resolution Tachometer:5ns;Dynamic channel:24-bit ADC
Communication interface Ethernet(RJ45),industrial bus(OC bus)
Operating temperature-40°C to+70°C
Protection level Not clearly marked(in line with industrial environment anti-interference design)
Compatible racks ABE04x,ABE056
4.Application scenarios
Industrial equipment monitoring:vibration and speed monitoring of rotating equipment such as power plant turbines,oil and gas pumps,and chemical machinery.
Condition maintenance:Combined with VibroSight software to achieve predictive maintenance and reduce unplanned downtime.
Automation control:Control the start and stop of equipment or interlock protection through digital output.
5.System integration and expansion
Modular design:Need to be used with XMV16/XMC16 modules to form a”card pair”structure and installed in VM600 rack(such as ABE04x).
Redundant configuration:Optional CPUR/IOCR redundant controller to improve system reliability
