描述

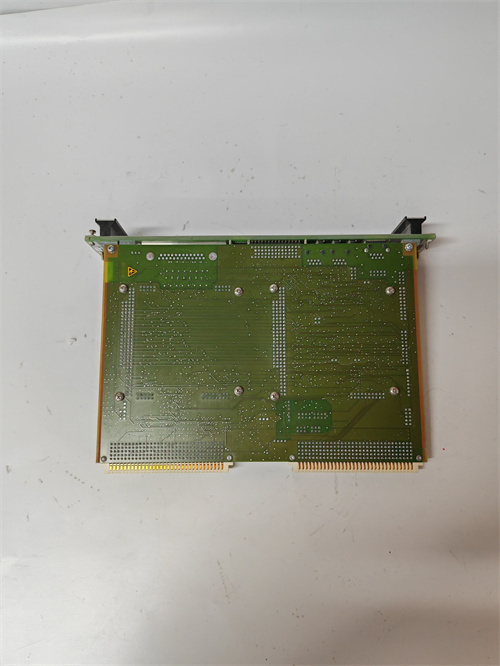

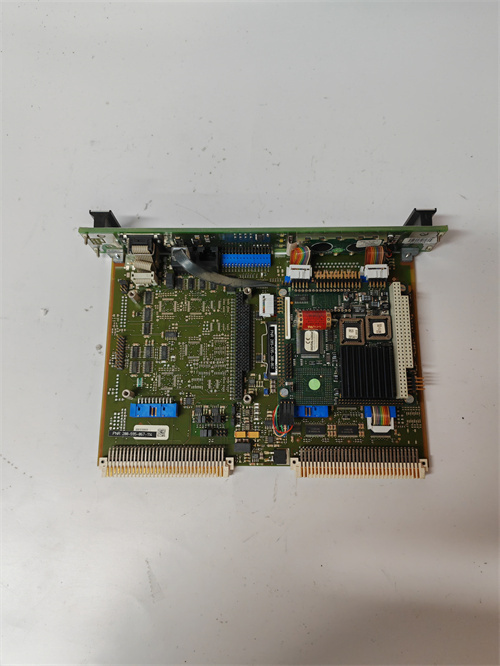

VIBRO-METER VM600 CPUM 200-595-067-114模块化CPU卡产品详情
1.产品概述
VM600 CPUM 200-595-067-114是Vibro-Meter（现属Meggitt公司）推出的工业级机架控制器，专为VM600系列机械保护系统（MPS）和状态监测系统（CMS）设计。它作为系统的核心控制单元，负责数据采集、处理、通信及配置管理，支持高精度振动监测与故障诊断，适用于发电、石油、化工、冶金等工业领域的关键设备保护与状态监控。
2.核心功能与特性
（1）数据处理与采集
通道配置：
16个动态通道：支持振动（加速度、速度、位移）、温度、压力等传感器信号输入。
4个转速通道：用于转速测量（1-100,000 RPM）及相位参考。
采样能力：
24位高分辨率数据采集，支持异步（固定频率）或同步（顺序跟踪）采样模式。
FFT频谱分析：每500 ms可生成6400行高分辨率频谱数据。
（2）通信与集成
通信协议：
Modbus RTU/TCP或PROFINET，支持与PLC、HMI、SCADA系统无缝对接。
以太网/RS-232串行接口：连接运行VM600 MPSx软件的计算机，实现远程配置与监控。
模块化设计：
需与XIO16T输入/输出模块配对使用（卡对形式），支持热插拔维护。
兼容VM600机架（如ABE04x），可扩展至多通道系统。
（3）控制与报警
报警管理：
前面板LCD显示实时监测输出与报警限值，支持通用报警复位（AR）功能。
事件日志记录系统及测量事件（最多10,000条），通过软件分析故障趋势。
安全冗余：
支持CPUR/IOCR冗余控制器（PNR 600-007-VVV-VVV），提升系统可靠性。
3.技术规格
参数描述
处理器AMD Geode™LX800，500 MHz，256 MB DRAM
通道数量16个动态通道+4个转速通道
采样率200 kHz（动态通道）；1024 Hz（振动监测模式）
通信接口以太网（Modbus RTU/TCP/PROFINET）、RS-232
输入信号类型振动、温度、压力、转速、相位基准
输出信号类型控制信号、报警信号、通信数据
尺寸与安装483mm×44mm×300mm，19英寸机架安装（双宽卡，占用2个插槽）
工作温度-40°C至+70°C（标准型）
防护等级IP30（机架内安装）
VIBRO-METER VM600 CPUM 200-595-067-114 Modular CPU Card Product Details
1.Product Overview
VM600 CPUM 200-595-067-114 is an industrial-grade rack controller launched by Vibro-Meter(now Meggitt),designed for the VM600 series mechanical protection system(MPS)and condition monitoring system(CMS).As the core control unit of the system,it is responsible for data acquisition,processing,communication and configuration management,supports high-precision vibration monitoring and fault diagnosis,and is suitable for key equipment protection and condition monitoring in industrial fields such as power generation,petroleum,chemical industry,and metallurgy.
2.Core functions and features
(1)Data processing and acquisition
Channel configuration:
16 dynamic channels:support vibration(acceleration,velocity,displacement),temperature,pressure and other sensor signal input.
4 speed channels:used for speed measurement(1-100,000 RPM)and phase reference.
Sampling capability:
24-bit high-resolution data acquisition,supporting asynchronous(fixed frequency)or synchronous(sequential tracking)sampling modes.
FFT spectrum analysis:Generates 6400 lines of high-resolution spectrum data every 500 ms.
(2)Communication and integration
Communication protocol:
Modbus RTU/TCP or PROFINET,supporting seamless connection with PLC,HMI,and SCADA systems.
Ethernet/RS-232 serial interface:Connect to a computer running VM600 MPSx software for remote configuration and monitoring.
Modular design:
Needs to be paired with XIO16T input/output modules(card pair form),supports hot-swappable maintenance.
Compatible with VM600 racks(such as ABE04x),expandable to multi-channel systems.
(3)Control and alarm
Alarm management:

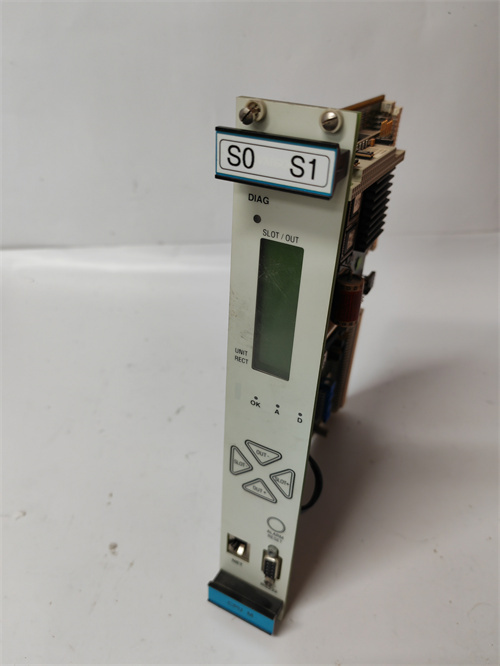

The front panel LCD displays real-time monitoring output and alarm limits,and supports universal alarm reset(AR)function.
The event log records system and measurement events(up to 10,000)and analyzes fault trends through software.
Safety redundancy:
Supports CPUR/IOCR redundant controllers(PNR 600-007-VVV-VVV)to improve system reliability.
3.Technical Specifications
Parameter Description
Processor AMD Geode™LX800,500 MHz,256 MB DRAM
Number of channels 16 dynamic channels+4 speed channels
Sampling rate 200 kHz(dynamic channels);1024 Hz(vibration monitoring mode)
Communication interface Ethernet(Modbus RTU/TCP/PROFINET),RS-232
Input signal type Vibration,temperature,pressure,speed,phase reference
Output signal type Control signal,alarm signal,communication data
Dimensions and installation 483mm×44mm×300mm,19-inch rack installation(double-width card,occupies 2 slots)
Operating temperature-40°C to+70°C(standard)
Protection level IP30(in-rack installation)
