描述
产品简要说明

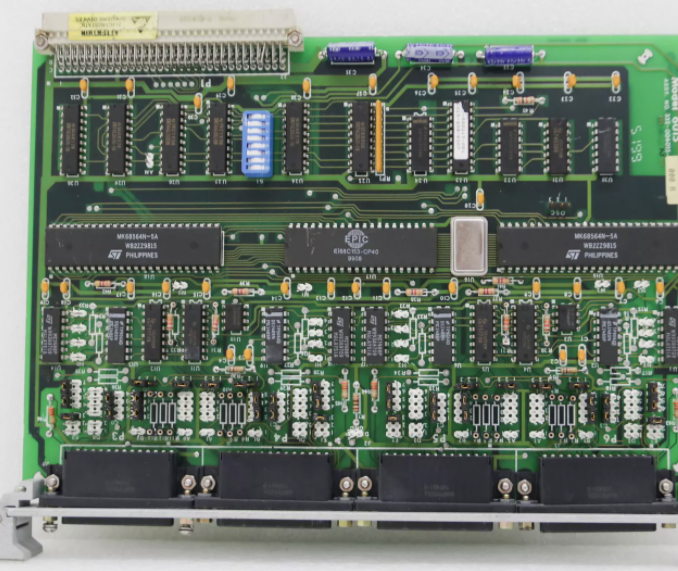

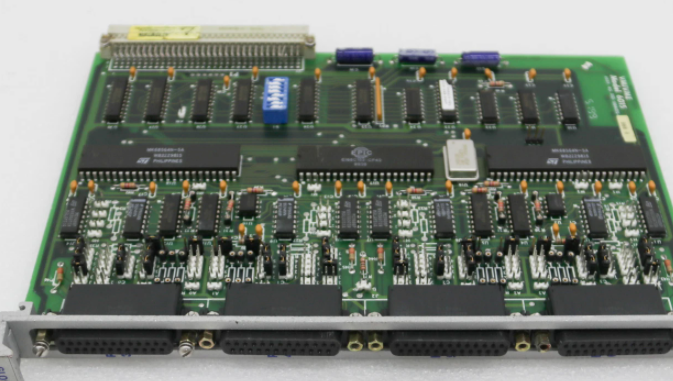

VMIC VMIVME-6015 332-006015-000是通用电气（GE）工业自动化系列的四通道串行I/O模块，专为VME总线系统设计，支持异步、同步字节/位协议及自定义协议扩展。其核心特性包括：
多协议兼容：异步、IBM BiSync、HDLC/SDLC协议，支持CRC校验与数据完整性检测
硬件自检：内置环路测试功能，支持故障诊断与调试
工业级可靠性：宽温设计（-40℃～+85℃），通过IEC 61000-6-2抗干扰认证
产品详细说明
1.硬件架构与通信能力
核心组件
处理器：双通道MK68564 SIO控制器，支持并行/串行数据转换
接口配置：
VME总线接口：符合VME64x标准，支持32位数据传输
串行接口：4路独立通道，支持RS-485/RS-232协议
协议支持
异步协议：支持9-8-N-1格式，波特率范围9600～115200bps
同步协议：
面向字节协议：IBM BiSync，支持数据帧长度配置
面向位协议：HDLC/SDLC，可编程帧格式与校验模式
自定义协议：通过寄存器配置实现私有协议扩展
自检与调试
环路测试模式：通过命令寄存器激活，支持信号回环检测
错误日志：记录CRC校验失败、帧格式错误等异常事件
产品概述:VMIC VMIVME-6015 332-006015-000
作为VME总线系统的通信核心模块，其核心价值在于协议灵活性与工业级可靠性：
技术价值：
在电力监控系统中，实现多协议设备数据聚合
在纺织机械控制中，支持异步传感器与同步执行器协同工作
行业适配：
电力能源：变电站保护装置通信接口、风电场SCADA系统
智能制造：数控机床多轴同步控制、工业机器人协议转换
轨道交通：列车信号系统多协议兼容、车载设备数据采集
技术规格:VMIC VMIVME-6015 332-006015-000
参数项规格描述
处理器MK68564双通道SIO控制器
接口类型4×独立串行通道（RS-485/RS-232）
协议支持异步、IBM BiSync、HDLC/SDLC，可扩展私有协议
数据速率异步模式最高115.2kbps，同步模式最高1Mbps
工作温度-40℃～+85℃（工业级宽温设计）
防护等级IP20（柜内安装）
核心价值与性能亮点
1.多协议融合能力
技术优势：单模块兼容异步、同步及自定义协议，减少硬件冗余
应用案例：某化工厂通过该模块实现PLC、DCS与仪表设备的跨协议通信
2.硬件自检与调试
技术优势：环路测试功能支持故障快速定位，降低维护成本
行业应用：在轨道交通信号系统中，实现模块级故障诊断
3.宽温域适应性
技术优势：-40℃～+85℃工作，符合恶劣工业环境要求
价值体现：某沙漠石油平台设备连续运行3年零故障
Product brief description
VMIC VMIVME-6015 332-006015-000 is a four-channel serial I/O module of General Electric(GE)industrial automation series,designed for VME bus systems,supporting asynchronous,synchronous byte/bit protocols and custom protocol extensions.Its core features include:
Multi-protocol compatible:asynchronous,IBM BiSync,HDLC/SDLC protocols,supports CRC verification and data integrity detection
Hardware self-test:built-in loop testing function,supports fault diagnosis and debugging
Industrial-grade reliability:Wide temperature design(-40℃~+85℃),passed IEC 61000-6-2 anti-interference certification
Product details
1.Hardware architecture and communication capabilities
Core Components
Processor:Dual-channel MK68564 SIO controller,supports parallel/serial data conversion
Interface configuration:
VME bus interface:Comply with VME64x standard and supports 32-bit data transmission
Serial interface:4 independent channels,supporting RS-485/RS-232 protocol
Agreement support
Asynchronous protocol:Supports 9-8-N-1 format,baud rate range of 9600~115200bps
Synchronization protocol:
Byte-oriented protocol:IBM BiSync,supports data frame length configuration
Bit-oriented protocol:HDLC/SDLC,programmable frame format and verification mode
Custom protocol:implement private protocol extension through register configuration
Self-test and debugging
Loop test mode:Activated through command registers,supporting signal loopback detection
Error log:Record CRC verification failure,frame format error and other abnormal events
Product Overview:VMIC VMIVME-6015 332-006015-000
As the communication core module of VME bus system,its core value lies in protocol flexibility and industrial reliability:
Technical value:
In the power monitoring system,multi-protocol equipment data aggregation is realized
In textile machinery control,it supports asynchronous sensors and synchronous actuators to work in concert
Industry adaptation:
Power energy:communication interface of substation protection device,wind farm SCADA system
Intelligent manufacturing:multi-axis synchronous control of CNC machine tools,industrial robot protocol conversion
Rail Transit:Multi-protocol compatible train signal system,data collection of on-board equipment
Technical Specifications:VMIC VMIVME-6015 332-006015-000
Parameters Specification Description
Processor MK68564 Dual Channel SIO Controller
Interface type 4×Independent Serial Channel(RS-485/RS-232)
Protocol supports asynchronous,IBM BiSync,HDLC/SDLC,and can expand private protocols
Data rate:up to 115.2kbps in asynchronous mode,up to 1Mbps in synchronous mode
Working temperature-40℃~+85℃(industrial-grade wide temperature design)
Protection level IP20(installed in the cabinet)
Core Valuesand Performance Highlights
1.Multi-protocol fusion capability
Technical advantages:Single modules are compatible with asynchronous,synchronous and custom protocols,reducing hardware redundancy
Application case:A chemical factory realizes cross-protocol communication between PLC,DCS and instrumentation equipment through this module
2.Hardware self-test and debugging
Technical advantages:Loop testing function supports rapid fault location and reduces maintenance costs
Industry application:In rail transit signal system,module-level fault diagnosis is realized
3.Wide temperature domain adaptability
Technical advantages:-40℃~+85℃work,meets the requirements of harsh industrial environment
Value manifestation:Equipment of a desert oil platform has been operating continuously for 3 years and has zero failures
