描述

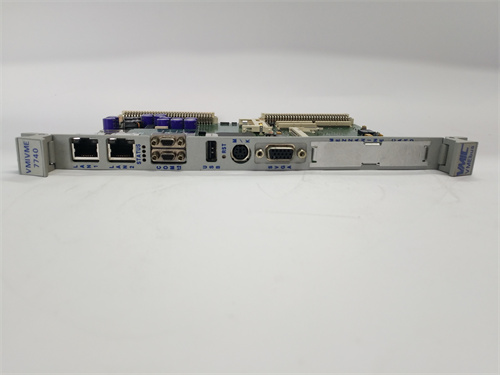

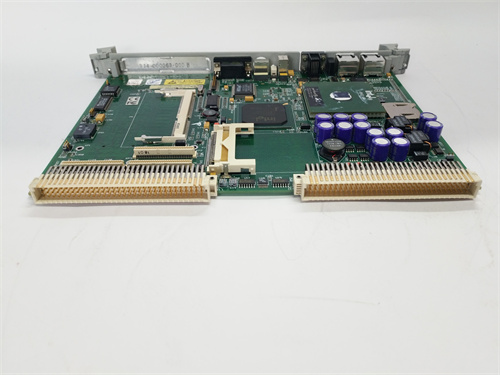

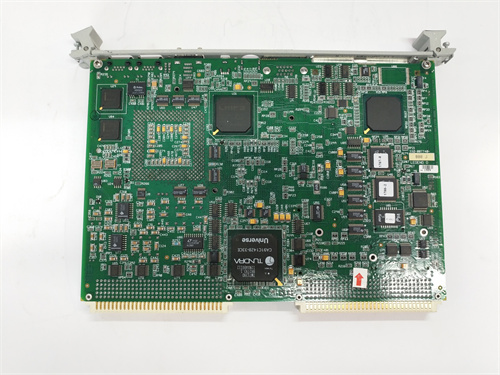

VMIC VMIVME-7740-850 350-007740-850 L是一款高性能的VMEbus模块卡，专为工业自动化与控制系统设计，以下是其核心产品详情：
核心功能
高性能处理能力
基于摩托罗拉MPC7477 PowerPC处理器，具备出色的计算性能和数据处理速度，能够应对复杂的工业控制需求，支持多任务并行处理。
多接口与扩展性
双以太网端口：提供冗余通信能力，确保数据传输的可靠性。
双PMC/XMC站点：支持多种I/O模块扩展，用户可根据需求灵活配置输入/输出接口，满足多样化的数据采集和控制需求。
协议兼容与通信能力
工业以太网接口：支持MODBUS TCP/IP协议，实现与现代控制系统的无缝连接，兼容主流工业通信标准。
多协议支持：支持多种工业协议，便于与其他设备或系统进行数据交互，提升系统集成度。
逻辑处理与协议转换
内置IC61131逻辑处理器，支持安全通信、高级数据集中、本地和远程I/O操作，以及多个内置客户机/服务器协议之间的协议转换，简化系统集成。
技术参数
处理器
采用摩托罗拉MPC7477 PowerPC处理器，具备高主频和低功耗特性，适用于高可靠性工业环境。
存储与内存
内存扩展：支持高达512MB的SDRAM，满足大规模数据处理需求。
存储选项：提供高达192MB的IDE CompactFlash存储，支持数据本地存储和快速访问。
接口与扩展
双以太网端口：支持10BaseT和100BaseTX，提供高速网络通信能力。
双PMC/XMC站点：支持多种I/O模块扩展，用户可根据需求灵活配置输入/输出接口。
串行与USB接口：提供两个高性能16550兼容串行端口和前面板USB连接，支持多种外设接入。
显示与图形处理
AGP SVGA控制器：集成4MB SDRAM，支持高分辨率图形和多媒体视频输出，适用于需要图形界面的工业应用。
操作系统支持
支持VxWorks、Linux、Windows等多种操作系统，用户可根据需求选择合适的开发环境，提升系统兼容性。
应用场景
工业自动化
适用于自动化生产线、机器人控制、设备监测等场景，提供高精度控制和实时数据处理能力。
数据采集与处理
在能源管理、环境监测等领域，支持多通道数据采集和实时分析，优化系统运行效率。
分布式控制系统
作为分布式控制系统（DCS）的核心节点，支持多节点协同工作，提升系统可靠性和可扩展性。
嵌入式系统开发
适用于嵌入式设备开发，支持多种操作系统和编程语言，便于快速开发和部署。
产品优势
高可靠性与稳定性
专为工业环境设计，具备抗振动、抗电磁干扰能力，能够在恶劣环境下长期稳定运行。
灵活配置与扩展性
支持多种处理器性能、内存大小和存储选项，用户可根据实际需求进行灵活配置，满足不同应用场景的需求。
丰富的I/O选项
提供多种接口和扩展站点，支持多种I/O模块扩展，便于与其他设备或系统集成，提升系统功能。
多协议支持与兼容性
支持多种工业协议和操作系统，便于与现有系统无缝集成，降低系统升级和改造成本。
VMIC VMIVME-7740-850 350-007740-850 L is a high-performance VMEbus module card designed for industrial automation and control systems.The following are its core product details:
Core functions
High-performance processing capability
Based on the Motorola MPC7477 PowerPC processor,it has excellent computing performance and data processing speed,can cope with complex industrial control needs,and supports multi-task parallel processing.
Multi-interface and scalability
Dual Ethernet ports:Provide redundant communication capabilities to ensure the reliability of data transmission.
Dual PMC/XMC sites:Support a variety of I/O module expansions.Users can flexibly configure input/output interfaces according to needs to meet diverse data acquisition and control needs.
Protocol compatibility and communication capabilities
Industrial Ethernet interface:Supports MODBUS TCP/IP protocol to achieve seamless connection with modern control systems and is compatible with mainstream industrial communication standards.
Multi-protocol support:Supports a variety of industrial protocols,facilitates data interaction with other devices or systems,and improves system integration.
Logic Processing and Protocol Conversion
Built-in IC61131 logic processor supports secure communications,advanced data concentration,local and remote I/O operations,and protocol conversion between multiple built-in client/server protocols to simplify system integration.
Technical Parameters
Processor
Adopts Motorola MPC7477 PowerPC processor,with high main frequency and low power consumption,suitable for high-reliability industrial environments.
Storage and Memory
Memory expansion:supports up to 512MB of SDRAM to meet large-scale data processing needs.
Storage options:Provides up to 192MB of IDE CompactFlash storage,supports local data storage and fast access.
Interface and expansion
Dual Ethernet ports:Supports 10BaseT and 100BaseTX,providing high-speed network communication capabilities.
Dual PMC/XMC sites:Supports a variety of I/O module expansions,and users can flexibly configure input/output interfaces according to needs.
Serial and USB interfaces:Provides two high-performance 16550-compatible serial ports and front panel USB connections to support a variety of peripheral access.
Display and Graphics Processing
AGP SVGA controller:integrated with 4MB SDRAM,supports high-resolution graphics and multimedia video output,suitable for industrial applications that require a graphical interface.
Operating System Support
Supports multiple operating systems such as VxWorks,Linux,and Windows.Users can choose the appropriate development environment according to their needs to improve system compatibility.
Application Scenarios
Industrial Automation
Suitable for scenarios such as automated production lines,robot control,and equipment monitoring,providing high-precision control and real-time data processing capabilities.
Data Acquisition and Processing
In the fields of energy management and environmental monitoring,it supports multi-channel data acquisition and real-time analysis to optimize system operation efficiency.
Distributed Control System
As the core node of a distributed control system(DCS),it supports multi-node collaboration to improve system reliability and scalability.
Embedded System Development
Suitable for embedded device development,supports multiple operating systems and programming languages,and facilitates rapid development and deployment.
Product Advantages
High Reliability and Stability
Designed specifically for industrial environments,it has the ability to resist vibration and electromagnetic interference,and can operate stably for a long time in harsh environments.
Flexible configuration and scalability
Supports a variety of processor performance,memory size and storage options.Users can flexibly configure according to actual needs to meet the needs of different application scenarios.
Rich I/O options
Provides a variety of interfaces and expansion sites,supports a variety of I/O module expansion,and is easy to integrate with other devices or systems to enhance system functions.
Multi-protocol support and compatibility
Supports a variety of industrial protocols and operating systems,which is easy to integrate with existing systems seamlessly and reduce system upgrade and transformation costs.
