描述

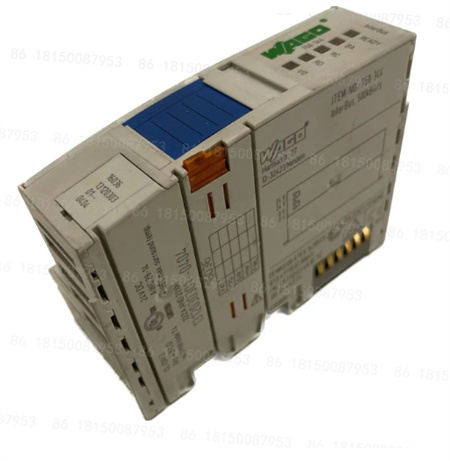

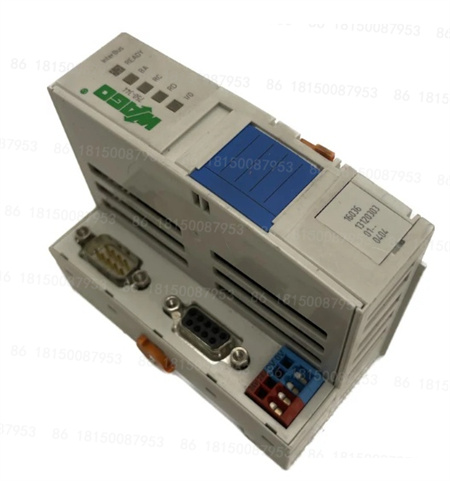

WAGO 750-344是一款INTERBUS现场总线耦合器，属于WAGO 750系列。以下是其产品详情：
基本信息
通信协议：INTERBUS
传输速率：500kbit/s
供电电压：通过布线（系统）提供24V DC
接口类型：1个9针D型公头/母头连接器（现场总线），4个弹簧笼式夹子（电源供应连接），1个4针公头连接器（设备配置）
安装方式：DIN-35导轨安装，宽度为49.5mm
防护等级：IP20
环境参数
工作温度：0°C至+55°C
存储温度：-25°C至+85°C
湿度：95%相对湿度（无冷凝）
电气参数
输入电流：标称负载24V时典型值为260mA
电流消耗：5V系统电源时为350mA，系统电源为650mA
EMC抗干扰：符合EN 61000-6-2
EMC发射干扰：符合EN 61000-6-4
其他参数
节点连接能力：每个节点64个连接，主连接上最多有256个现场总线节点的能力
外壳材质：聚碳酸酯（PC）/聚酰胺（PA）6.6
尺寸：96.8mm（高）×49.5mm（宽）×71.9mm（深）
The WAGO 750-344 is an INTERBUS fieldbus coupler from the WAGO 750 series.The following are product details:
Basic Information
Communication Protocol:INTERBUS
Transmission Rate:500 kbit/s
Supply Voltage:24 V DC supplied via the system wiring
Connector Type:1 9-pin D-sub male/female connector(fieldbus),4 spring-cage clamps(power supply connection),1 4-pin male connector(device configuration)
Mounting Method:DIN-35 rail mounting,49.5 mm width
Protection Rating:IP20
Environmental Specifications
Operating Temperature:0°C to+55°C
Storage Temperature:-25°C to+85°C
Humidity:95%relative humidity(non-condensing)
Electrical Specifications
Input Current:Typical 260 mA at 24 V nominal load
Current Consumption:350 mA at 5 V system power supply,650 mA at system power supply
EMC Interference Immunity:Complies with EN 61000-6-2
EMC Interference Emission:Complies with EN 61000-6-4
Other Parameters
Node Connection Capacity:64 connections per node,with a maximum of 256 fieldbus nodes on the master link
Casing Material:Polycarbonate(PC)/Polyamide(PA)6.6
Dimensions:96.8 mm(H)x 49.5 mm(W)x 71.9 mm(D)
