描述

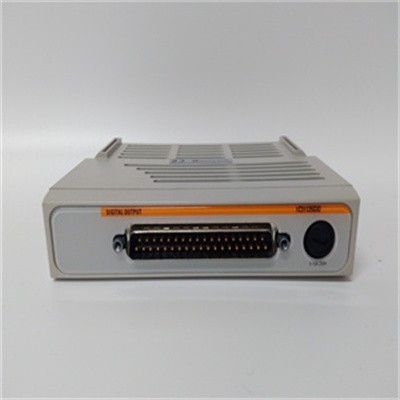

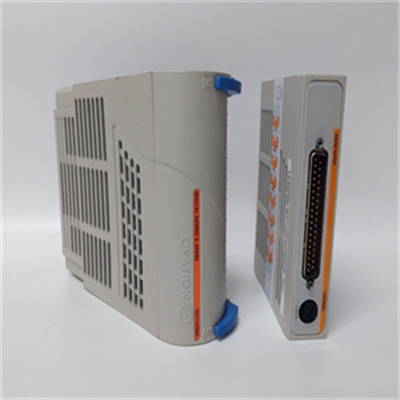

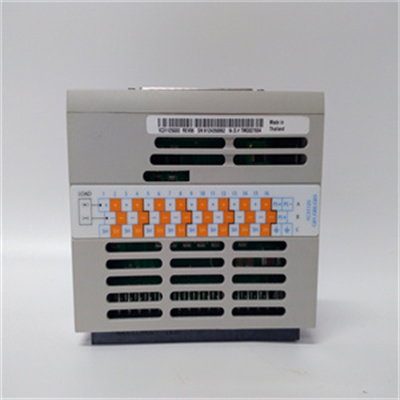

1C31125G02是西屋（Westinghouse）Ovation分布式控制系统的核心模块，属于数字输出特性模件，广泛应用于工业自动化领域。以下是其综合产品特性与技术优势的详细说明：
一、核心功能与技术特点
数字输出控制
支持多通道数字信号输出，可驱动继电器、阀门、执行器等设备，适用于开关量控制场景。模块化设计允许灵活扩展，满足不同规模系统的控制需求。
高可靠性与稳定性
经过严格质量测试，可在-5°C至+55°C温度范围内稳定运行，湿度适应范围0%-90%RH，适合化工、石油、电力等严苛工业环境。
宽电压兼容性
支持85-264V AC/DC宽电压输入，具备过压、过流保护功能，兼容不同电源系统。
高速响应能力
处理速度可达0.3/0.09μs，适用于需要快速响应的实时控制系统。
二、技术参数与性能
参数项规格说明
输出通道数8-500通道（模块化扩展）
工作电压85-264V AC/DC
输出频率50-100Hz
处理速度0.3/0.09μs
程序容量12K字节
环境适应性温度-5°C至+55°C，湿度0%-90%RH
三、应用场景
化工与石油行业
控制反应釜阀门开度、温度调节，实现工艺流程的精准闭环控制。
电力系统
驱动断路器分合闸、风机启停，保障电力设备安全运行。
智能制造
集成于数控机床、机器人等设备，实现高精度动作逻辑控制。
环保与水处理
监控污水处理设备的开关状态，确保工艺流程稳定性。
四、技术优势
模块化与扩展性
支持与其他Ovation系统模块（如模拟量输入/输出、CPU）协同工作，构建分布式控制系统。
通信兼容性
集成Modbus、OPC UA等工业协议，可无缝对接PLC、DCS及SCADA系统。
智能诊断功能
实时监测通道状态，支持故障报警与远程维护，降低停机风险。
五、与其他产品的关联性
Ovation系统：作为其核心输出模块，支持与PMOD控制器、虚拟机等组件协同运行。
第三方设备：兼容艾默生、西门子等品牌PLC及传感器，便于系统集成。
六、技术演进趋势
智能化升级：未来可能集成边缘计算功能，实现本地数据处理与预测性维护。
绿色节能：优化功耗设计，降低待机能耗以响应工业低碳化需求。
1C31125G02 is the core module of Westinghouse Ovation distributed control system.It is a digital output characteristic module and is widely used in the field of industrial automation.The following is a detailed description of its comprehensive product characteristics and technical advantages:
I.Core functions and technical features
Digital output control
Supports multi-channel digital signal output,can drive relays,valves,actuators and other equipment,and is suitable for switch quantity control scenarios.Modular design allows flexible expansion to meet the control needs of systems of different sizes.
High reliability and stability
After strict quality testing,it can operate stably in the temperature range of-5°C to+55°C,and the humidity adaptation range is 0%-90%RH,which is suitable for harsh industrial environments such as chemical,petroleum,and electricity.
Wide voltage compatibility
Supports 85-264V AC/DC wide voltage input,has overvoltage and overcurrent protection functions,and is compatible with different power supply systems.
High-speed response capability
The processing speed can reach 0.3/0.09μs,which is suitable for real-time control systems that require fast response.
2.Technical parameters and performance
Parameter item Specifications
Number of output channels 8-500 channels(modular expansion)
Working voltage 85-264V AC/DC
Output frequency 50-100Hz
Processing speed 0.3/0.09μs
Program capacity 12K bytes
Environmental adaptability Temperature-5°C to+55°C,humidity 0%-90%RH
3.Application scenarios
Chemical and petroleum industries
Control the valve opening and temperature adjustment of the reactor to achieve precise closed-loop control of the process flow.
Power system
Drive the circuit breaker to open and close,and the fan to start and stop,to ensure the safe operation of power equipment.
Intelligent manufacturing
Integrated in CNC machine tools,robots and other equipment to achieve high-precision action logic control.
Environmental protection and water treatment
Monitor the switch status of sewage treatment equipment to ensure the stability of the process flow.
4.Technical advantages
Modularity and scalability
Supports collaboration with other Ovation system modules(such as analog input/output,CPU)to build a distributed control system.
Communication compatibility
Integrated with industrial protocols such as Modbus and OPC UA,it can seamlessly connect to PLC,DCS and SCADA systems.
Intelligent diagnostic function
Real-time monitoring of channel status,support for fault alarm and remote maintenance,and reduce the risk of downtime.
V.Relevance with other products
Ovation system:As its core output module,it supports collaborative operation with components such as PMOD controller and virtual machine.
Third-party equipment:compatible with PLC and sensors of brands such as Emerson and Siemens,which is convenient for system integration.
VI.Technology evolution trend
Intelligent upgrade:In the future,it may integrate edge computing functions to realize local data processing and predictive maintenance.
Green energy saving:Optimize power consumption design and reduce standby energy consumption to respond to the demand for industrial low carbonization.
