描述

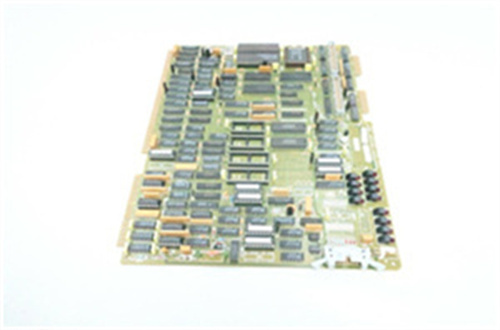

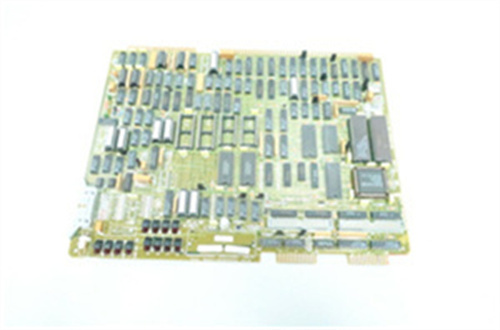

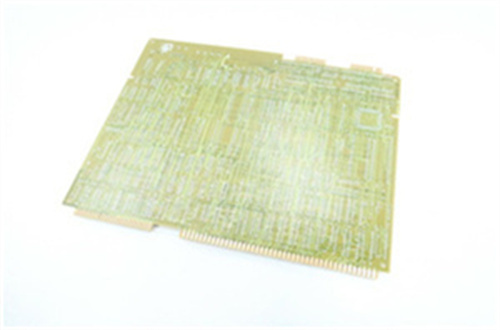

WESTINGHOUSE 7381A29G01是西屋电气（Westinghouse）为工业自动化系统设计的核心数字量输入/输出模块，适用于复杂工业场景的信号采集与控制。以下是其产品特性与技术细节：
1.核心功能与技术参数
模块类型：支持16通道数字量输入/输出，兼容干接点、继电器触点等信号，适用于开关状态监测与控制指令输出。
通信协议：
通过TCP/IP协议实现与上位机或PLC的实时数据交互，支持OPC服务器连接，可无缝集成至工业网络（如800xA系统）。
提供C语言编程接口（DMS-API），支持非标准协议定制，增强系统灵活性。
环境适应性：
工作温度范围-20°C至70°C，防护等级IP30，符合工业现场严苛条件需求。
2.应用场景
基础自动化控制：
例如在轧钢生产线中，与ABB RMC200系统协同工作，实时监测设备状态（如电机运行、阀门开闭），并触发安全联锁逻辑。
石油化工领域：
监测反应釜温度开关、压力报警信号，实现工艺流程自动化控制与异常响应。
电力能源行业：
采集发电机转速、断路器位置等数字信号，辅助电力调度与故障诊断。
3.技术优势
高可靠性：
采用工业级元器件，MTBF（平均无故障时间）超过363,000小时，支持冗余配置以提升系统稳定性。
智能诊断：
内置自检功能，实时监测通道状态（如短路、断线），并通过LED指示灯或通信接口反馈异常信息。
扩展性：
支持热插拔更换，可与Ovation系列主控制器及扩展模块（如7379A29G01）协同工作，形成大规模分布式系统。
4.兼容性与认证
系统兼容：
支持ControlNet、Modbus等工业协议，可与主流DCS（如西门子、施耐德）及PLC系统无缝对接。
认证标准：
通过UL、CE认证，符合IEC 61508安全规范，适用于危险区域（如Class I Div 2）。
5.物理特性
尺寸与安装：标准模块化设计，支持导轨或壁挂安装，重量约2.5kg。
供电要求：支持115VAC/230VAC输入，宽电压范围增强适应性。
WESTINGHOUSE 7381A29G01 is a core digital input/output module designed by Westinghouse for industrial automation systems,suitable for signal acquisition and control in complex industrial scenarios.The following are its product features and technical details:
1.Core functions and technical parameters
Module type:supports 16-channel digital input/output,compatible with dry contacts,relay contacts and other signals,suitable for switch status monitoring and control command output.
Communication protocol:
Real-time data interaction with the host computer or PLC is realized through TCP/IP protocol,OPC server connection is supported,and it can be seamlessly integrated into industrial networks(such as 800xA system).
Provides C language programming interface(DMS-API),supports non-standard protocol customization,and enhances system flexibility.
Environmental adaptability:
Operating temperature range-20°C to 70°C,protection level IP30,meets the requirements of harsh conditions in industrial sites.
2.Application scenarios
Basic automation control:
For example,in a steel rolling production line,it works with the ABB RMC200 system to monitor the equipment status(such as motor operation,valve opening and closing)in real time and trigger the safety interlock logic.
Petrochemical industry:
Monitor the temperature switch and pressure alarm signal of the reactor to realize the automatic control and abnormal response of the process.
Electric power industry:
Collect digital signals such as generator speed and circuit breaker position to assist power dispatch and fault diagnosis.
3.Technical advantages
High reliability:
Using industrial-grade components,the MTBF(mean time between failures)exceeds 363,000 hours,and supports redundant configuration to improve system stability.
Intelligent diagnosis:
Built-in self-test function,real-time monitoring of channel status(such as short circuit,disconnection),and feedback of abnormal information through LED indicators or communication interfaces.
Scalability:
Supports hot-swap replacement,and can work with Ovation series main controllers and expansion modules(such as 7379A29G01)to form a large-scale distributed system.
4.Compatibility and certification
System compatibility:
Supports industrial protocols such as ControlNet and Modbus,and can be seamlessly connected with mainstream DCS(such as Siemens,Schneider)and PLC systems.
Certification standards:
Passed UL and CE certification,complies with IEC 61508 safety specifications,and is suitable for hazardous areas(such as Class I Div 2).
5.Physical characteristics
Size and installation:Standard modular design,supports rail or wall mounting,weighs about 2.5kg.
Power supply requirements:Supports 115VAC/230VAC input,and a wide voltage range enhances adaptability.
