描述

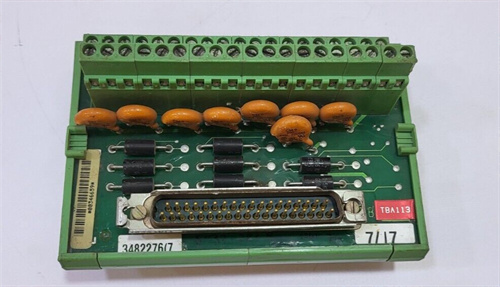

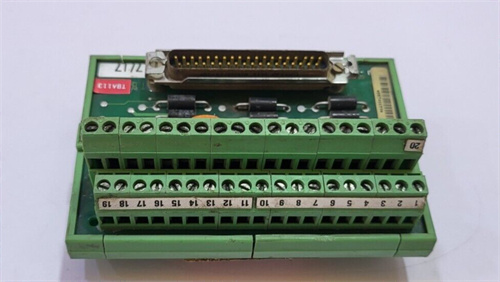

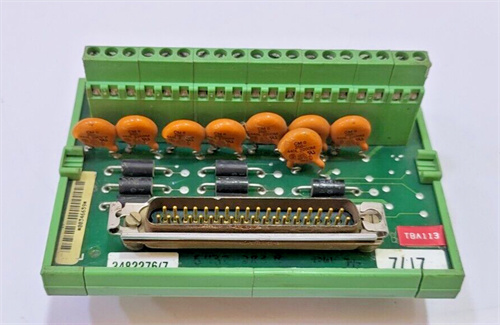

WOODWARD 5437-055是伍德沃德（Woodward）公司推出的一款工业控制模块，专为工业自动化系统设计，适用于数据采集与控制场景。以下是其核心功能与技术特性：
1.应用领域
工业生产监控：用于工厂自动化系统中，如原料配料控制、设备状态监测等，支持与三菱FX系列PLC等主流设备通信。
数据采集：通过串口协议（如Modbus）实现PLC内部数据的实时采集与传输，满足中小规模生产场合的低成本通信需求。
2.技术参数
型号：5437-055
接口类型：支持RS-232/RS-485串行通信接口，兼容Windows API函数与VB6.0的MSCOMM控件开发模式。
通信协议：支持Modbus RTU协议，可扩展至其他工业协议（如ControlNet）。
3.功能特点
高可靠性：采用工业级设计，适应复杂电磁环境，防护等级IP30，支持宽温工作（-20°C至70°C）。
灵活性：可通过高级语言（如Visual Basic）自定义开发通信程序，满足非标系统集成需求。
扩展性：支持与其他Woodward模块（如5464-337、8555-958）协同工作，形成分布式控制系统。
4.认证与标准
符合ISO 9001-2000质量管理体系认证，兼容IEC 61131-3编程标准。
5.其他特性
电源要求：支持24V DC/AC宽电压输入，适应不同工业现场供电条件。
兼容性：可与主流组态软件（如SCADA系统）或人机界面（HMI）无缝对接，替代昂贵的商用通信模块。
WOODWARD 5437-055 is an industrial control module launched by Woodward,designed for industrial automation systems and suitable for data acquisition and control scenarios.The following are its core functions and technical features:
1.Application areas
Industrial production monitoring:used in factory automation systems,such as raw material batching control,equipment status monitoring,etc.,and supports communication with mainstream equipment such as Mitsubishi FX series PLC.
Data acquisition:Real-time acquisition and transmission of PLC internal data through serial port protocols(such as Modbus),meeting the low-cost communication needs of small and medium-sized production occasions.
2.Technical parameters
Model:5437-055
Interface type:Supports RS-232/RS-485 serial communication interface,compatible with Windows API functions and VB6.0 MSCOMM control development mode.
Communication protocol:Supports Modbus RTU protocol,which can be expanded to other industrial protocols(such as ControlNet).
3.Features
High reliability:Industrial-grade design,adaptable to complex electromagnetic environment,IP30 protection level,wide operating temperature(-20°C to 70°C).
Flexibility:Customized communication programs can be developed through high-level languages(such as Visual Basic)to meet non-standard system integration requirements.
Scalability:Supports collaboration with other Woodward modules(such as 5464-337,8555-958)to form a distributed control system.
4.Certification and standards
Complies with ISO 9001-2000 quality management system certification and is compatible with IEC 61131-3 programming standards.
5.Other features
Power supply requirements:Supports 24V DC/AC wide voltage input to adapt to different industrial site power supply conditions.
Compatibility:Can be seamlessly connected with mainstream configuration software(such as SCADA system)or human-machine interface(HMI),replacing expensive commercial communication modules.
