描述

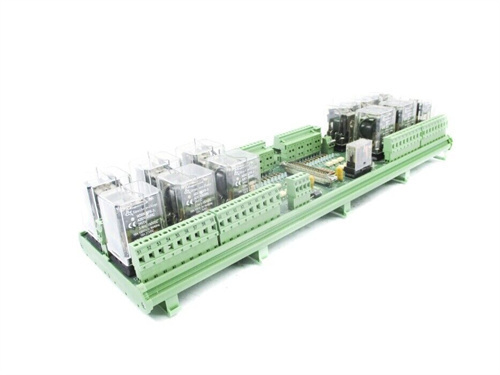

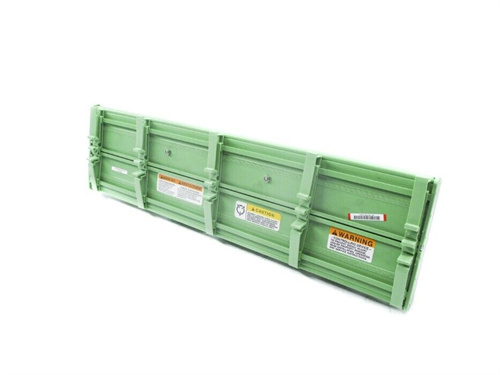

WOODWARD 5441-689是伍德沃德（Woodward）公司推出的一款工业自动化控制模块，专为复杂工业场景设计，支持灵活的信号处理与系统集成。以下是其核心功能与技术特性：
1.硬件组成与接口
开关量输入模块：支持直流、交流及交直流输入类型，可连接开关、按钮、传感器等设备，兼容外部或内部24V DC供电。
开关量输出模块：将TTL电平信号转换为工业设备所需的驱动信号，支持继电器或晶体管输出，适配执行机构动作需求。
通信接口：提供RS-232/RS-485等标准串行端口，支持Modbus RTU协议，便于与PLC、DCS系统及上位机通信。
2.软件系统与编程
系统程序：包含诊断、输入处理、编译及监控模块，固化于设备内部，用户不可修改。
用户程序：基于PLC编程语言（如梯形图、结构化文本），支持自定义控制逻辑，可通过通用计算机编程器或图形化工具开发。
编程器类型：
简易编程器：适合基础逻辑配置。
图形编程器：支持可视化流程设计。
通用计算机编程器：通过PC实现复杂程序开发与调试。
3.技术特点
模块化架构：支持扩展电源单元（提供5V、±12V、24V直流电压），兼容其他Woodward模块（如5464-337、8555-958）。
工业级防护：防护等级IP30，工作温度范围-40°C至70°C，抗电磁干扰能力符合IEC 61000标准。
认证与标准：通过CE认证，编程逻辑遵循IEC 61131-3国际标准。
4.应用领域
能源与动力系统：作为调速器或控制器核心模块，管理柴油机、燃气轮机的转速与负荷分配。
船舶工业：集成于主机遥控系统（如艾默生Marex OS），优化推进控制与安全监测。
智能制造：用于数据采集、设备状态监控及工业流程自动化控制。
5.其他特性
电源兼容性：支持220V AC外部供电，内部转换为设备所需电压，同时为外部传感器提供24V DC电源。
扩展能力：可配置模拟输入/输出通道，适应非标信号采集与控制需求。
WOODWARD 5441-689 is an industrial automation control module launched by Woodward,designed for complex industrial scenarios,supporting flexible signal processing and system integration.The following are its core functions and technical features:
1.Hardware composition and interface
Switch input module:supports DC,AC and AC/DC input types,can connect switches,buttons,sensors and other devices,compatible with external or internal 24V DC power supply.
Switch output module:converts TTL level signals into drive signals required by industrial equipment,supports relay or transistor output,and adapts to the action requirements of actuators.
Communication interface:provides standard serial ports such as RS-232/RS-485,supports Modbus RTU protocol,and is convenient for communication with PLC,DCS system and host computer.
2.Software system and programming
System program:includes diagnosis,input processing,compilation and monitoring modules,which are solidified inside the device and cannot be modified by users.
User program:based on PLC programming language(such as ladder diagram,structured text),supports custom control logic,and can be developed through general computer programmers or graphical tools.
Programmer type:
Simple programmer:suitable for basic logic configuration.
Graphic programmer:supports visual process design.
General computer programmer:realize complex program development and debugging through PC.
3.Technical features
Modular architecture:supports expansion of power supply unit(provides 5V,±12V,24V DC voltage),compatible with other Woodward modules(such as 5464-337,8555-958).
Industrial protection:protection level IP30,operating temperature range-40°C to 70°C,anti-electromagnetic interference capability complies with IEC 61000 standard.
Certification and standards:CE certified,programming logic follows IEC 61131-3 international standard.
4.Application areas
Energy and power system:as a core module of the speed governor or controller,manages the speed and load distribution of diesel engines and gas turbines.
Marine industry:integrated into the main engine remote control system(such as Emerson Marex OS)to optimize propulsion control and safety monitoring.
Smart manufacturing:used for data collection,equipment status monitoring and industrial process automation control.
5.Other features
Power supply compatibility:supports 220V AC external power supply,internally converted to the voltage required by the device,and provides 24V DC power supply for external sensors.
Expansion capability:Configurable analog input/output channels to meet non-standard signal acquisition and control needs.
