描述

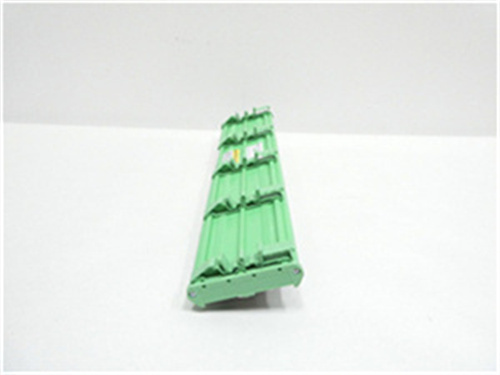

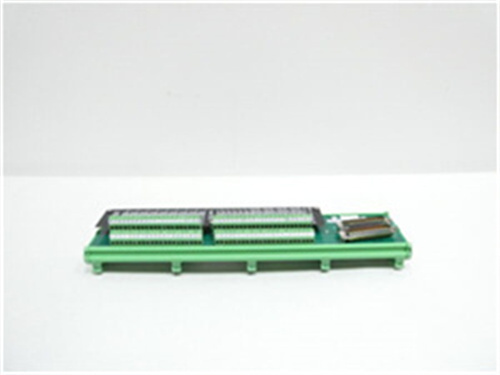

WOODWARD 5501-003产品详情
一、产品概述
WOODWARD 5501-003是一款模块式结构的控制模块，属于伍德沃德（Woodward）公司生产的5501系列调节器。该模块广泛应用于工业自动化领域，具备高可靠性和灵活性，能够满足复杂的工业控制需求。
二、核心功能
控制系统集成：作为控制模块，5501-003可集成于PLC或DCS等系统中，实现工业设备的高精度控制与数据交互。
双通道控制能力：支持双通道信号输出，可独立控制两个执行器或设备，适用于需要冗余备份或多设备协同的场景。
实时监控与故障诊断：具备实时状态监测功能，可快速定位系统异常，通过故障代码或指示灯提示维护需求，降低停机风险。
三、技术规格
品牌与型号：品牌为WOODWARD，型号为5501-003，产地为美国。
电气参数：
工作电压：24-240V，适应不同工业电源环境。
输出频率：56-245Hz，满足电机调速、阀门控制等场景的频率需求。
额定电流：60A，支持高功率负载驱动。
环境适应性：
工作温度范围：0-60℃，适用于常规工业环境。
防护等级：模块化设计，支持密封外壳选配以增强防尘、防水能力。
通信接口：配备3个千兆电口，支持Modbus TCP/IP等工业协议，实现与上位机或HMI的快速数据交换。
WOODWARD 5501-003 Product Details
I.Product Overview
WOODWARD 5501-003 is a modular control module,which belongs to the 5501 series regulator produced by Woodward.This module is widely used in the field of industrial automation,with high reliability and flexibility,and can meet complex industrial control needs.
II.Core Functions
Control System Integration:As a control module,5501-003 can be integrated into systems such as PLC or DCS to achieve high-precision control and data interaction of industrial equipment.
Dual-channel control capability:Supports dual-channel signal output,can independently control two actuators or devices,suitable for scenarios requiring redundant backup or multi-device collaboration.
Real-time monitoring and fault diagnosis:With real-time status monitoring function,it can quickly locate system abnormalities,prompt maintenance needs through fault codes or indicator lights,and reduce downtime risks.
III.Technical Specifications
Brand and Model:The brand is WOODWARD,the model is 5501-003,and the origin is the United States.
Electrical parameters:
Working voltage:24-240V,adaptable to different industrial power supply environments.
Output frequency:56-245Hz,meeting the frequency requirements of motor speed regulation,valve control and other scenarios.
Rated current:60A,supports high-power load drive.
Environmental adaptability:
Working temperature range:0-60℃,suitable for conventional industrial environments.
Protection level:modular design,supports optional sealed housing to enhance dust and water resistance.
Communication interface:equipped with 3 Gigabit electrical ports,supports industrial protocols such as Modbus TCP/IP,and realizes fast data exchange with the host computer or HMI.
