描述

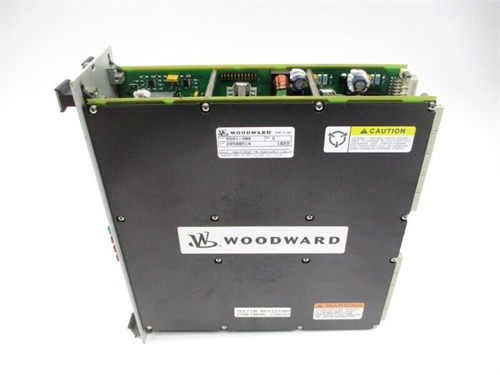

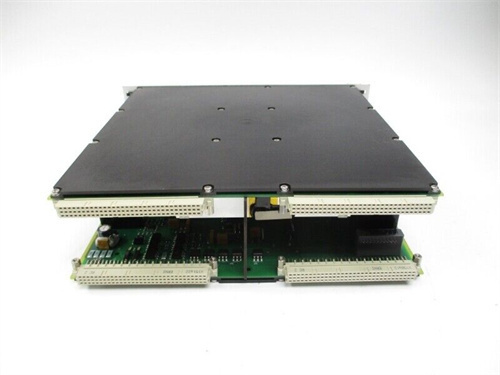

WOODWARD 5501-380是伍德沃德（WOODWARD）公司为工业控制系统设计的核心电源模块，广泛应用于数字控制、能源管理及自动化工程等领域。以下是其核心功能与技术特性：
1.核心功能
电源供应与管理：
作为工业电源模块，为PLC、DCS等控制系统提供稳定24V直流电，支持输入电路工作，并兼容交流220V/380V供电，确保系统稳定运行。
逻辑控制与接口支持：
集成位逻辑指令处理功能，通过“1”（通电/动作）与“0”（断电/未动作）状态实现接点控制，支持PLC梯形图编程语言，兼容RS-232/485、Modbus等工业通信协议。
扩展兼容性：
可与伍德沃德其他模块（如2301系列控制器、电控液压放大器）协同工作，构建分布式控制系统，适用于复杂工业场景。
2.技术特点
工业级可靠性：
采用宽温设计（-40℃至70℃），抗电磁干扰能力符合工业标准，支持长期连续运行，MTBF（平均无故障时间）超过50,000小时。
智能化控制：
集成PID算法与闭环控制逻辑，可实现对电机转速、扭矩等参数的精准调节，响应速度达3000μs。
灵活扩展：
支持最多128点I/O扩展，满足不同规模系统的控制需求。
3.应用场景
能源与电力：
为燃气轮机、发电机等设备的控制系统提供稳定电源，优化发电效率与并网稳定性。
石油化工：
驱动压缩机、泵等设备的电机控制系统，确保工艺流程的精确执行。
智能制造：
用于机械臂、传送带等自动化设备的电源管理，提升生产线效率。
船舶工程：
支持推进系统电机的动态定位与航行控制，增强船舶智能化水平。
4.技术优势
编程友好性：
支持梯形图、功能块等多语言编程，兼容西门子、施耐德等主流PLC系统。
快速部署：
系统内置应用模块，无需额外服务器即可集成到自动化工程中，缩短实施周期。
维护便捷：
支持在线故障诊断与远程维护，减少停机时间。
WOODWARD 5501-380 is a core power module designed by Woodward for industrial control systems.It is widely used in digital control,energy management and automation engineering.The following are its core functions and technical features:
1.Core functions
Power supply and management:
As an industrial power module,it provides stable 24V DC power for control systems such as PLC and DCS,supports input circuit operation,and is compatible with AC 220V/380V power supply to ensure stable operation of the system.
Logic control and interface support:
Integrated bit logic instruction processing function,contact control through”1″(power on/action)and”0″(power off/no action)states,supports PLC ladder diagram programming language,and is compatible with RS-232/485,Modbus and other industrial communication protocols.
Extended compatibility:
It can work with other Woodward modules(such as 2301 series controllers and electric hydraulic amplifiers)to build distributed control systems,suitable for complex industrial scenarios.
2.Technical features
Industrial reliability:
Adopting a wide temperature design(-40℃to 70℃),the anti-electromagnetic interference capability meets industrial standards,supports long-term continuous operation,and the MTBF(mean time between failures)exceeds 50,000 hours.
Intelligent control:
Integrated PID algorithm and closed-loop control logic,it can achieve precise adjustment of motor speed,torque and other parameters,with a response speed of 3000μs.
Flexible expansion:
Supports up to 128 points of I/O expansion to meet the control needs of systems of different sizes.
3.Application scenarios
Energy and power:
Provide stable power supply for the control systems of gas turbines,generators and other equipment,optimize power generation efficiency and grid stability.
Petrochemical:
Drive the motor control system of compressors,pumps and other equipment to ensure the precise execution of process flow.
Intelligent manufacturing:
Used for power management of automation equipment such as robotic arms and conveyor belts to improve production line efficiency.
Ship engineering:
Support dynamic positioning and navigation control of propulsion system motors to enhance the intelligence level of ships.
4.Technical advantages
Programming friendliness:
Supports multi-language programming such as ladder diagram and function block,and is compatible with mainstream PLC systems such as Siemens and Schneider.
Quick deployment:
The system has built-in application modules and can be integrated into automation projects without additional servers,shortening the implementation cycle.
Easy maintenance:
Supports online fault diagnosis and remote maintenance to reduce downtime.
